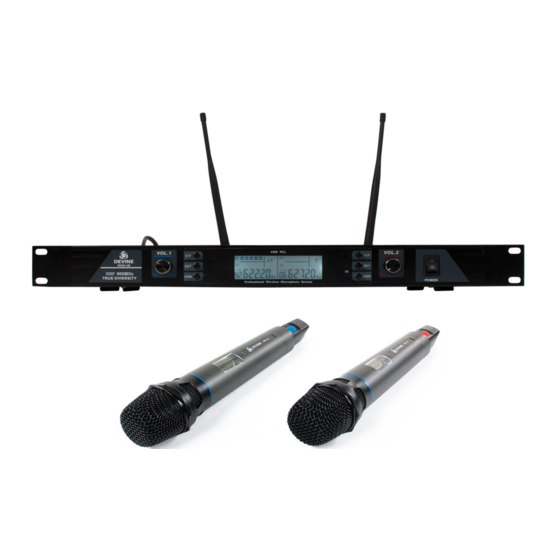

Dual wireless microphone system frequency: uhf 840 - 868 mhz
Hide thumbs Also See for WMD 168:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Dual wireless microphone system
Frequency: UHF 840 - 868 MHz
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMD 168 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Devine WMD 168

Summary of Contents for Devine WMD 168

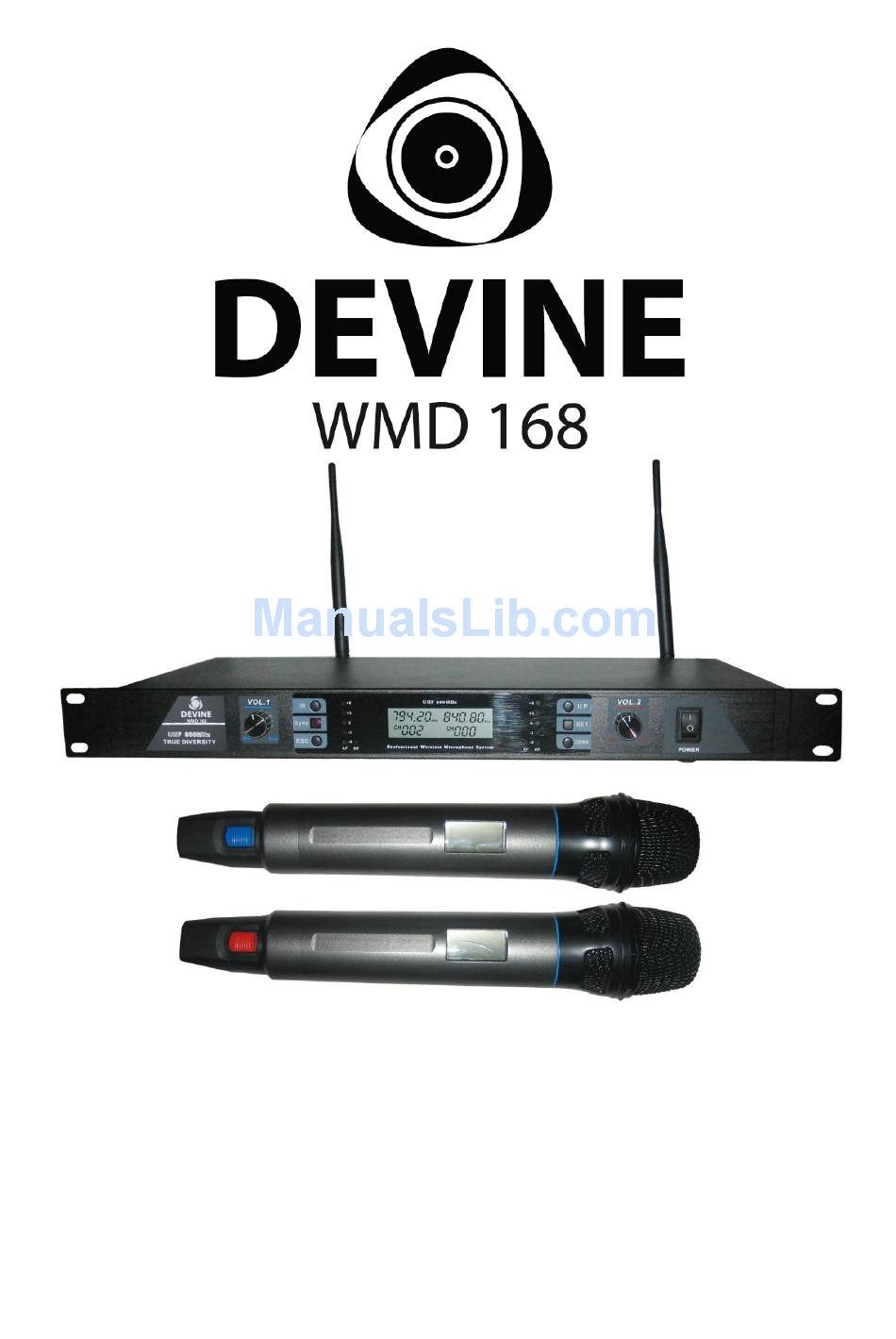

  • Page 1 Dual wireless microphone system Frequency: UHF 840 - 868 MHz User manual...
  • Page 2 Introduction Thank you for purchasing this Devine wireless microphone system. Before you unpack all the received items, carefully read this manual to become familiar with the functions of the system. Also check the contents of the box to make sure all necessary parts are included.
  • Page 3 Preparing the system Inserting batteries This system uses AA 1.5V batteries for the handheld microphones. Each handheld microphone uses 2 AA batteries. Always use good quality batteries, as the battery life may vary. This may result in a working time between 8 and 20 hours. Insert the batteries with the right sides up.
  • Page 4 Synchronizing the microphones, selecting the right frequencies When you have set up the receiver and turned it on, synchronize the wireless microphones with the receiver using the infrared synchronizing system. To do this, point the infrared sensor of the microphone to the infrared sensor on the unit, while you hold the microphone in front of the unit.
  • Page 5 Plug the power supply cable into the provided connector-chassis at the rear of the unit. Check the power supply you wish to plug the unit into, to make sure the outlet has a proper voltage. Do not turn the power on or connect any cable if you suspect that the voltage is incorrect, or if the cable shows defects.

  • Page 6: Technical Specifications

    Technical specifications Technical specifications microphone: - Frequency: 840 ~ 868 MHz - channels: 276 (2 channels, choose from 138 frequencies per microphone) - oscillation-mode: PLL - frequency stability: +/- 10 ppm - modulation mode: FM - radio frequency power: 10 ~ 30 mW (variable) - audio frequency response: 40 ~ 18.000 Hz - distortion: <...
