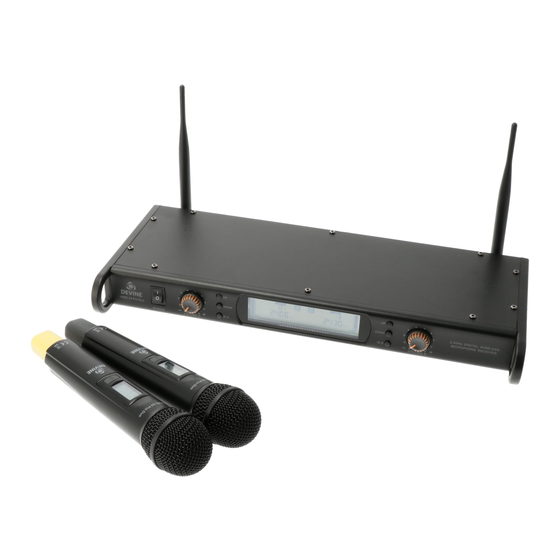

WMD-24 Pro Duo
2.4 GHz Wireless Microphone System
User Manual
The information included in this user manual is subject to change at any time and without notification:
Version:
Date and author initials: 04-08-2020 RV
Revision date and author initials: -
1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the WMD-24 PRO Duo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Devine WMD-24 PRO Duo

  • Page 1 WMD-24 Pro Duo 2.4 GHz Wireless Microphone System User Manual The information included in this user manual is subject to change at any time and without notification: Version: Date and author initials: 04-08-2020 RV Revision date and author initials: -...
  • Page 2 Introduction Thank you for purchasing the Devine WMD-24 PRO Duo system. Before unpacking the box and included components, we recommend reading this user manual thoroughly to ensure that you are completely familiar with all of the functions this product has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included.
  • Page 3: Safety Instructions

    WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! Safety Instructions Every person involved with the installation, operation and maintenance of this device must: - Be qualified. - Be skilled. - Have read the instructions included in this user manual. - Be sure that neither the device nor the included accessories are damaged.
  • Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
  • Page 5 Battery safety: WARNING! - If the battery is replaced incorrectly, this may cause the battery to explode. - Only replace a battery with the same battery type. - Never expose batteries to intense heat, including sunlight, open flames, etc. - Never store batteries in a hot, high temperature environment. This may cause the battery to explode as well as the leakage of flammable liquids or gasses.

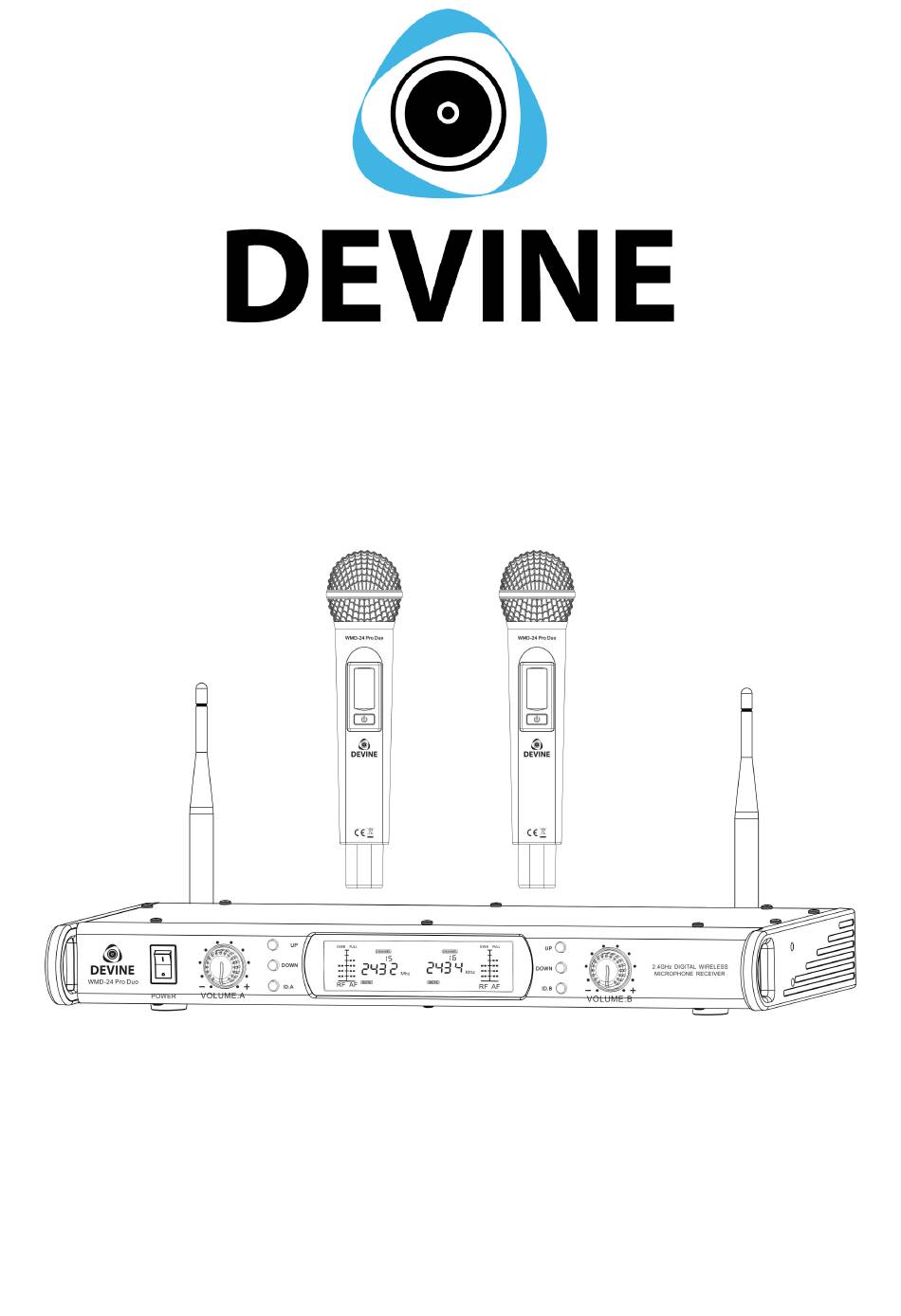

  • Page 6 Overview & Use Receiver: ON/OFF switch Microphone A volume control Microphone A channel set Microphone A channel down Microphone A channel up Central LCD display Microphone B channel up Microphone B channel down Microphone B channel set Microphone B volume control Antenna Microphone A Antenna Microphone B Microphone B balanced XLR output...
  • Page 7 Handheld Microphones: Microphone grille LCD-display with status information ON/OFF switch Battery compartment cover (sliding system) Battery compartment for 2x AA batteries Synchronisation point The information included in this user manual is subject to change at any time and without notification: Version: Date and author initials: 04-08-2020 RV Revision date and author initials: -...
  • Page 8: Using This System

    It may also be the case that audience members may have smartphones or similar gadgets that are constantly scanning for an available signal. In the worst case, this can cause serious problems with the performance of the WMD-24 PRO Duo microphone system.
  • Page 9 6.35 mm TS jack input, in which case, the included jack cable can be used to connect the WMD-24 PRO Duo. If the system is fitted with a 3-pin XLR microphone input, then a 6.35 mm jack to XLR cable or a jack to XLR adapter can be purchased separately and used to connect the WMD-24 PRO Duo to the audio installation.
  • Page 10 Devine cannot be held responsible for any damage caused to any audio system due to the use of incorrect microphone technique. Setting Up Your Audio Installation Start by setting the volume faders or controls of your mixer to zero. This includes any ‘gain’ or ‘trim’ controls.
  • Page 11 Channel Frequency Channel Frequency 2412 MHz 2447 MHz 2417 MHz 2452 MHz 2422 MHz 2457 MHz 2427 MHz 2462 MHz 2432 MHz 2467 MHz 2437 MHz 2472 MHz 2442 MHz 2484 MHz Using multiple systems at the same time without encountering any problems cannot be guaranteed. Since every situation and set-up is different, it is not possible to state with certainty that it would result in optimum performance.
  • Page 12 Wireless Microphone Trouble Shooting If you happen to encounter any problems while using your wireless microphone system, it’s recommended that this trouble shooting section is checked to see if a solution can be found. If none of the suggestions included below solve your particular problem, please contact your local retailer for further advice. This trouble shooting section includes all of the most common possible issues and is not a complete list of every possible fault, defect, and their subsequent solution.
  • Page 13 Problem Common Cause Solution 2.4 GHz error When the performance space is full of different devices operating on the same (or close to) 2.4 GHz frequency band, like laptops, smartphones, tablets and other wireless gadgets and equipment, this can cause wireless microphone system issues. Try switching to a different microphone signal or try to improve the ‘line of sight’...
  • Page 14: Specifications

    Specifications – 2.4 GHz compact wireless microphone system – 2x wireless handheld microphone with 1x compact receiver – operates using the 2.4 GHz band that can be used freely worldwide – 16 channels can be selected per microphone to limit frequency band traffic interference –...
  • Page 15 EC Declaration of Conformity Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands We declare under our sole responsibility that the following products Article: Product name: Devine WMD-24 Pro Duo Wireless microphone system (2.4 GHz) with 2 x handheld microphones.
