Summary of Contents for Topp Music Gear TPM 4250 MKII

  • Page 2 TPM 6250 MKII USB PLAYER LAMP TAC-MP3-T POWER (Push & Hold) LAMP ON/OFF TPM 8250 MKII USB PLAYER TAC-MP3-T LAMP (Push & Hold) POWER LAMP ON/OFF NF03476-1.1...
  • Page 4: Table Of Contents

    1. INTRODUCTION ......................4 2. FEATURES ........................4 3. USEFUL DATA ......................4 4. CONTROL ELEMENTS....................5 5. INSTALLATION TIPS.....................12 6. CONNECTING DIAGRAM....................13 7. AUDIO CONNECTIONS....................14 8. PRESET LIST.........................15 9. TECHNICAL SPECIFICATIONS..................16 10. BLOCK DIAGRAM.......................17 11. GUARANTEE.......................18 12. NOTES ........................19...
  • Page 5: Introduction

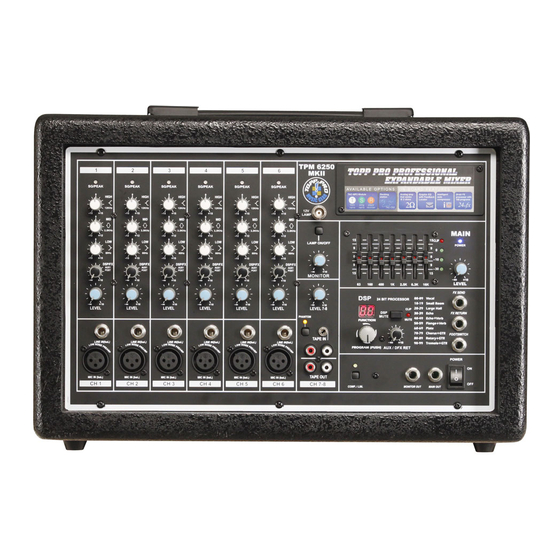

    Thank you for purchasing the TOPP PRO TPM 4250/6250/8250 MKII. The TPM series of powered mixers are designed to be rugged, powerful and filled with quality features that would usually be found in much larger systems. The 300 series are all built with the same powerful 300 Watts power amplifier and are available with 4,6 or 8 channel configurations.
  • Page 6: Control Elements

    4.1 FRONT PANEL PEAK/SIGNAL LED This LED will illuminate green when there is a signal present in the LINE/MIC input. When signal nears clipping the LED will turn to red. SG/PEAK MONO INPUT CHANNELS HIGH CH1 TO CH 4(TPM6250MKII CH1 to CH6,TPM8250MKII CH1to CH8)come 12KHz with balance MIC IN and LINE IN connectors.Use the XLR (MIC IN)socket to connect low impedance microphone or low level signal,which also...
  • Page 7 JACK This insert can be used to connect with computer, Mp3, Mp4 LAMP or CD players. LEVEL This control used to adjust the level of TAPE IN and 3.5 jack LAMP ON/OFF signal simultaneously. The adjustable range goes from - to +10dB.
  • Page 8 TPM 6250 MKII USB PLAYER TAC-MP3-T LAMP (Push & Hold) POWER LAMP ON/OFF...
  • Page 9 4.3 REAR PANEL OUTPUT These connectors are used to output the signal to the speaker. The minimum speaker load is 2 ohms. AC INLET Standard IEC receptacle connect your TPM4250/6250/8250 MKII to mains with the supplied power cord. VOLTAGE SELECTOR There are two kinds of voltage for your operation.
  • Page 10 Operation Instruction for Song Module INSERT USB KEY 1- When no USB key inserted, the display will show as Fig. 1. 2- Inserted the USB key, the USB player starts to search the songs in USB key, Fig 1 and the display shows "Searching". At the end of the search, the display will show as Fig.
  • Page 11 Option Two - Track Module The file system of USB memory for USB players is FAT16 and FAT32, and these players can only decode Mp3. It has 7 rank subordinate folders at most. 8- DISPLAY: All the USB player information are monitored through this sexy and magic display. (3) (4) USB PLAYER TAC-MP3-T...
  • Page 12 Option Three - Recording Module The file system of USB memory for USB players is FAT16 and FAT32, and these players can only decode MP3. It has 7 rank subordinate folders at most. (3) (4) USB PLAYER-RECORDER VOL+ VOL- TAC-MP3-R POWER (Push &...
  • Page 13: Installation Tips

    USB Module Installation -No selective mode At normal state, there is no selective mode on the front panel, only a piece of panel without function. CN20 CN13 CN19 -USB PLAYER selective mode Please connect the 5PIN row-wire on the USB module to the CN13 header header on front panel. For Recording module, you also need to connect the 3 PIN row-wire to CN 20 header to start recording function.
  • Page 14: Connecting Diagram

    Connecting Diagram Make sure all initial connections with all the equipment powered off, and make sure that the main volume controls are turned down completely. (1) with a high quality signal line connect a CD player or other players to the powered mixer. (2)using the speaker cable connect the INPUT of the two passive speakers to the OUTPUT of the powered mixer.
  • Page 15: Audio Connections

    Audio Connections Audio Connections...
  • Page 16: Preset List

    Preset List Preset List...
  • Page 17: Technical Specifications

    Technical Specifications Technical Specifications Input Channels Electronically Balanced, Discrete Input Microphone input 20Hz to 22kHz, +/-3dB Frequency Response 50dB Gain Electronically balanced Line Input 20Hz to 22kHz,+/-3dB Frequency Response Gain 20dB Impedance Microphone Input 1.5kOhm All other input 10kOhm or greater Tape Out 1kOhm All other output...
  • Page 18: Block Diagram

    Block Diagram Block Diagram...
