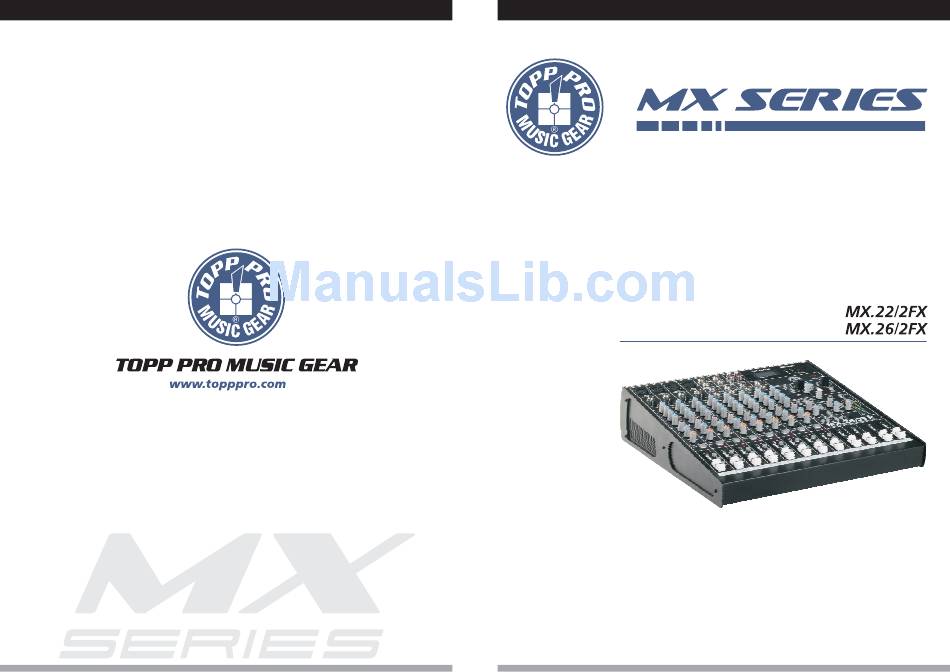

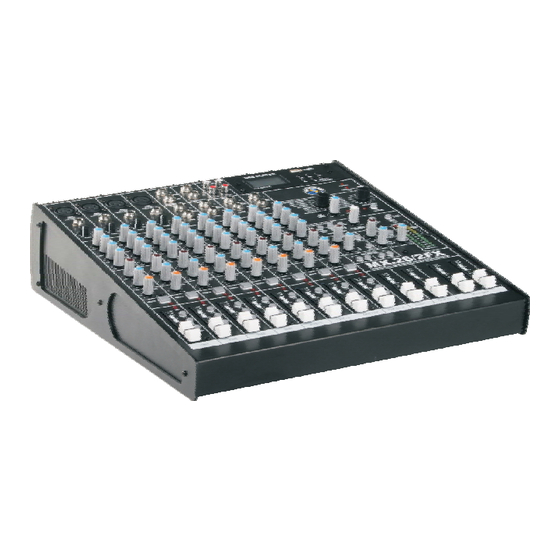

  • Page 1 USER' S MANUAL NF03522-1.0...
  • Page 3 TABLE OF CONTENTS 1. INTRODUCTION...............1 2. FEATURES................1 3. USEFUL DATA................1 4. CONTROL ELEMENTS..............3 5. INSTALLATION TIPS ..............14 6. WIRE CONNECTIONS..............15 7. BLOCK DIAGRAM ..............16 8. TECHNICAL SPECIFICATION.............18 9. GUARANTEE .................20...
  • Page 4 Please read this manual carefully so you can take advantages of all the features of the MX series. Thank you again for making the right choice in purchasing the TOPP PRO MUSIC GEAR. FEATURES 4 mono inputs with gold plated XLR and Balanced TRS jack 2 (4 for MX.26/2FX) stereo inputs with Balanced TRS jack...
  • Page 5: Hookup Diagram

    HOOKUP DIAGRAM STAGE MONITORS MIC1 MIC2 WIRELESS MONO IN/STEREO OUT MICROPHONE BEVER(OPTIONAL) HEADPHONE MX 26/2FX MODEL SERIAL FOOTSW TIP SEND/RING RTN POWER CTRL RM MAIN OUTS(BAL/UNBAL) PHONES CHANNEL INSERTS OUTS SEND USB PLAYER USB REP 03 : 08 MONO TAC-MP3-T POWER (Push &...
  • Page 6 CONTROL ELEMENTS FRONT PANEL 1- Mono MIC Input The MX series is equipped with 4 low-noise mic preamplifiers with optional phantom power providing up to 50 dB of amplification. You can connect almost any type of microphone. Dynamic microphones don't need phantom power. Use phantom power only with condenser microphones but make sure that the phantom power switch is disengaged before connecting the microphone.
  • Page 7 100 Hz to 8 kHz. 9- MID EQ This control provides 15 dB boost or cut at 2.5 kHz on the MX.22/2FX. The MX.26/2FX has one sweepable MID EQ controls on the mono channels and two discrete MID EQ on the stereo channels with center frequencies at 3 kHz and 500 Hz(9'), the midrange frequencies include the upper male and lower female vocal ranges,and the fundamentals and harmonics for many instruments.
  • Page 8 MAIN MIX R. When engaging the both switches, the signal will be sent to L/R of MAIN MIX. 18- ALT3-4 Master Faders (MX.22/2FX) & SUB1-2 Master Faders (MX.26/2FX) These faders are used to control the levels of signal that send to the ALT3-4OUT / SUB1-2 OUT.
