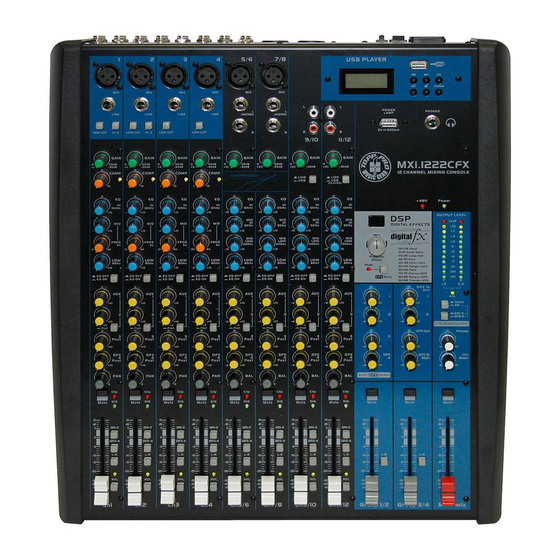

Topp Music Gear MXi.1222CFX User Manual

Mxi series 12 / 14 / 16 channels mixing console
Hide thumbs

Advertisement

Table of Contents

12 / 14 / 16 CHANNELS MIXING CONSOLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXi.1222CFX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Topp Music Gear MXi.1222CFX

Summary of Contents for Topp Music Gear MXi.1222CFX

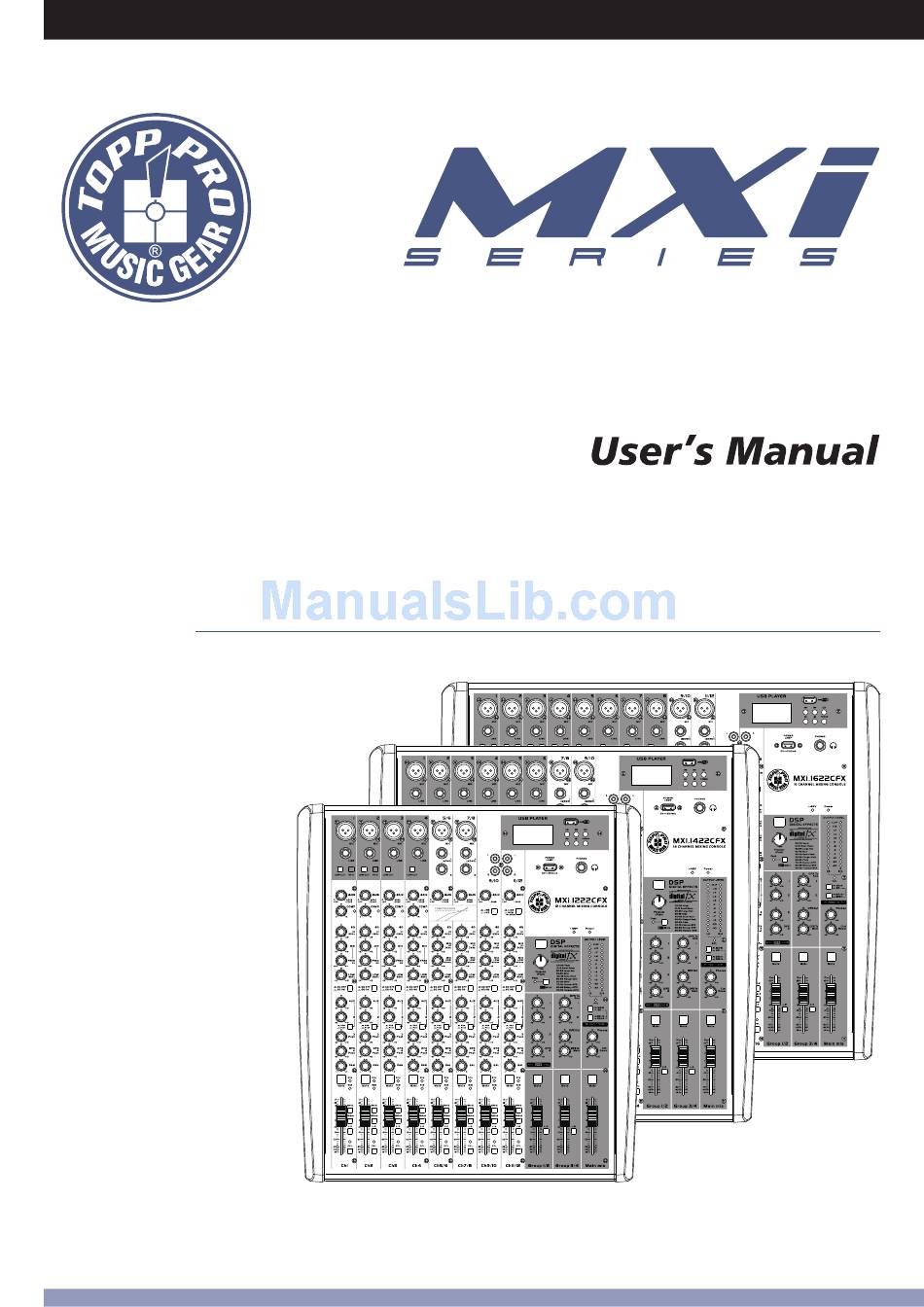

  • Page 1 12 / 14 / 16 CHANNELS MIXING CONSOLE...

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction 2. Features 3. Usefull Data 4. Control Elements 5. Installation And Connection 6. Hookup Diagram 7. Preset List 8. Block Diagram 9. Technical Specifications 10. Guarantee...

  • Page 4: Introduction

    Introduction Thank you choosing for purchasing 12 / 14 / 16 Channel Mixing Console. This is a professional compact mixer to give you great quality and better reliability than ever before you will get the smooth, accurate more natural and open sound from this apparatus, and it is really ideal for gigs ,recording and fixed PA installations.

  • Page 5: Control Elements

    Control Elements The following features will be applied to 12 channels,14 channels and 16 channels. In case where different features need to be described for each other, the unit 12 channels and 14 channels will be descried first, followed by the unit 16 channels feature in brackets. 1.
  • Page 6 Control Elements 9. LINE/USB By pressing this button, it will switch to the USB mode, then the USB signal can be sent to this channel; by releasing this button, the LINE IN inputs signal will send to the line input channels. 10.
  • Page 7 Control Elements 13. AUX SEND CONTROLS These four controls are used to adjust the level of the respective signal sent to AUX bus and their adjustable range is from -∞ to +10 dB . 14. PRE/POST AUX1 and AUX2 can be switched to PRE/POST-FADER via the PRE/POST button, so, generally, they can be used for monitor application and effects &...
  • Page 8 Control Elements 22. MAIN MIX LEVEL This fader is used to set the amount of signal sent to the main mix output. 23. DIGITAL EFFECTS It displays the selected preset. 24. PROGRAM(PUSH) Adjust this knob to select the right effect you wish to perform. There are totally 100 options for you: Echo, Vocal, Plate and versatile two-effect combination.
  • Page 9 Control Elements 32. PHONES CONTROL This control is used to adjust the signal present at the Phones output, which can be varied from -∞ to +10 dB. 33. CONTROL ROOM CONTROL This control is used to adjust the signal present at the control room output, which can be varied from -∞...
  • Page 10 Control Elements 40. DFX OUT This 1/4" sockets are used to send the signal from DFX mix buses to external devices. FOOTSW. This socket is used to connect external footswitch for your convenient operation, it has the same function as DFX MUTE button. 41.
  • Page 11 Control Elements MP3 PLAYER...

  • Page 12: Installation And Connection

    Installation And Connection Ok, you have got to this point and you are now in the position to successfully operate your 12 / 14 / 16 Channel Mixing Console. However, we advise you to read carefully the following section to be the real master of your own mixer. Not paying enough attention to the input signal level, to the routing of the signal and the assignment of the signal will result in unwanted distortion, a corrupted signal or no sound at all.
  • Page 13 Installation And Connection...
  • Page 14 Installation And Connection...

  • Page 15: Hookup Diagram

    Hookup Diagram Small Club Gig Computer set-up...

  • Page 16: Preset List

    Preset List...

  • Page 17: Block Diagram

    Block Diagram...

  • Page 18: Technical Specifications

    Technical Specifications 12 / 14 / 16 channel mixing console MODEL : Mono channels Microphone input XLR with balanced Frequency response 10Hz to 55KHz,+/-3dB Distortion(THD+N) <0.03% at +0dB ,22Hz~22KHz A-weighted Gain range 0dB to 50dB Max. Input +21 dB LOW CUT 75Hz <-100dBr A-weighted Phantom power...
  • Page 19 Technical Specifications Main mix section Max. MAIN MIX output +26dBu XLR balanced (+20dBu un-balanced) AUX range OFF to +10dB Fader range OFF to +10dB PHONES/CONTROL-ROOM range OFF to +10dB <-80dB @ 20Hz~22KHz A-weighted, 1 channel & MAIN Hum & Noise level:0dB, the other: Minimum <-80dB @0dB 20Hz~22KHz A-weighted, MAIN level:0dB, Crosstalk...

  • Page 20: Guarantee

    Guarantee...
  • Page 21 Notes...
  • Page 22 Notes...
  • Page 23 Notes...

This manual is also suitable for:

Mxi.1422cfxMxi.1622cfx
