- Page 1 OWNER’S OPERATING MANUAL MIG/TIG/ARC 240 ELECTRONIC INVERTER INVERTER MULTI PULSE PRO...
-
Page 3: Table Of Contents
Parameters • Thermal protection Machine set up (MMA / TIG / MIG / MIG Aluminium / MOG) 10-11 Maintenance Troubleshooting Multi Pulse Pro 240 Welder overview Spare parts list 14-16 Welding machine technical data Wiring Diagram Warranty 19-20 Declaration of conformity... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS When using power equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following. If used correctly, welders pose little risk to the operator; however, care should always be taken to ensure safety and proper performance. - Page 5 • DON’T OVERREACH: Keep proper footing and balance at all times. • DRESS PROPERLY: DO NOT wear loose clothing or jewellery. They can be caught in moving parts. Wear protective hair covering to cover long hair, and gloves and non-slip footwear is recommended when working outdoors.
-
Page 6: Multi Pulse Pro 240 Welder
INV / MIG / TIG / ARC 240 MULTI PULSE PRO WELDERS This product is an inverter welding machine, multi-function MMA/TIG LIFT/MIG/MAG/MOG, which can be supplied with single-phase voltage 220V to 240V, 50/60Hz. It allows the welder to weld: MMA: rutile, basic, nickel-based (cast iron), special steel, cellulosic electrodes and aluminium. TIG LIFT: steel and its alloys, copper bronze etc. -
Page 7: Installation
INSTALLATION Warning: Use all precautions required in the safety general manual before operating the welder, reading carefully the risks associated with the welding process. The installation must be made by the trained personnel in compliance to the standard IEC 60974-9 and the current and local legislation. All connections must be made in accordance with the reference standard. -
Page 8: Parameters
WELDER INFORMATION (cont.) MIG WELDING Once you have chosen the “MIG” welding, you can set the following parameters: Wire speed: the parameter is displayed on the “DISP-1” after selecting the “MIG” welding. The value is expressed as a percentage and can be changed by rotating “ENC-1”. -
Page 9: Parameters
WELDER INFORMATION (cont.) The machine allows you to set parameters: Ramp-Up, Burn-Back, Pulse and Frequency. Ramp-Up: allows you to set how many seconds you want to reach the set speed of the wire. During this time, there will be a gradual increase of the wire speed. - Page 10 WELDER INFORMATION (cont.) FUNCTION RESET Turn off the machine, the microprocessor on board stores the last welding settings used. It also possible to reset the welding parameters restoring it to factory settings. To reset: 1) Turn off the welding machine 2) Hold onto “ENC-1”...
-
Page 11: Machine Set Up (Mma / Tig / Mig / Mig Aluminium / Mog)
MACHINE SET UP - MMA / TIG / MIG / MIG ALUMINIUM AND MOG WELDING Below are shown guidelines to set up the machine for a MMA/TIG/MIG/MIG Aluminium and MOG welding. ELECTRODE (MMA) 1) Turn off the welding machine 2) Connect the plug of the work clamp to the negative socket “-” and the plug of the electrode holder to the positive socket “+”... - Page 12 MACHINE SET UP - MMA / TIG / MIG / MIG ALUMINIUM AND MOG WELDING (cont.) MIG / MAG (continued from previous page) 4) Connect the tube of the gas cylinder on the rear panel of the machine. The gas used is generally a mixture of Argon and C02 (MIX), otherwise only C02.
-
Page 13: Maintenance
MAINTENANCE All maintenance and repairs must be carried out by an authorised repair agent. Any non- authorised repairs will void warranty. Personnel in compliance to the norm (IEC 60974-4). TROUBLESHOOTING If you are still having difficulty with your welder, do not hesitate to contact our service team on: 1800 011 812 Page 12... -
Page 14: Multi Pulse Pro 240 Welder Overview

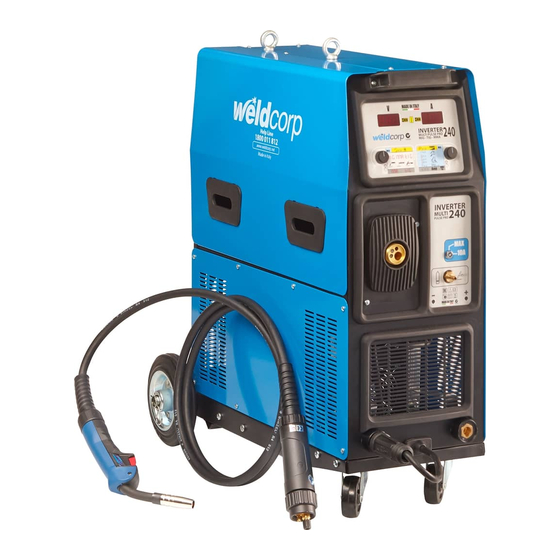

MULTI PULSE PRO 240 WELDER Page 13... -
Page 15: Spare Parts List
SPARE PARTS LIST - INVERTER MULTI PULSE PRO 240 Product Code: WCM0007 Page 14... - Page 16 SPARE PARTS LIST - INVERTER MULTI PULSE PRO 240 Product Code: WCM0007 Page 15...
-
Page 17: Spare Parts List
SPARE PARTS LIST - INVERTER MULTI PULSE PRO 240 Product Code: WCM0007 Page 16... -
Page 18: Welding Machine Technical Data
WELDING MACHINE TECHNICAL DATA Page 17... -
Page 19: Wiring Diagram
ELECTRICAL DIAGRAM Page 18... -
Page 20: Warranty
1YEAR WARRANTY Subject to the warranty conditions below, this Weldcorp product (“the Product”) is warranted by ITW Group, a division of ITW Australia Pty Ltd (“the Company”) to be free from defects in material or workmanship for a period of 12 months from the date of original purchase (“the Warranty Period”). - Page 21 WARRANTY FORM THIS WARRANTY FORM SHOULD BE REAINED BY THE CUSTOMER AT ALL TIMES For your record and to assist in establishing date of purchase (necessary for in warranty service) please keep your purchase docket and this form completed with the following particulars. PURCHASED FROM SUBURB DATE...
-
Page 22: Declaration Of Conformity
Page 21... - Page 23 Manufactured in Italy Cyclone Tools Pty Ltd ABN 89 169 427 061 73C Elizabeth Street Wetherill Park NSW 2164 www.weldcorp.com.au AUS Helpline: 1800 001 812...
