OWNER'S OPERATING
MANUAL
WELD AND CUT ARC/TIG
INVERTER PLASMA 30
PLASMA CUTTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WCPC001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WeldCorp WCPC001

Summary of Contents for WeldCorp WCPC001

  • Page 1 OWNER’S OPERATING MANUAL WELD AND CUT ARC/TIG INVERTER PLASMA 30 PLASMA CUTTER...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Page Safety instructions Weld & Cut ARC/TIG and Plasma Cutter Installation Welder Information • Plasma Cutting • Electrode Welding (ARC/MMA) • TIG Welding • VRD Function Selection Protection from Overheating Maintenance Troubleshooting 9-11 Spare parts list 12-13 Wiring Diagram Warranty 15-16...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS When using power equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following. If used correctly, welders pose little risk to the operator; however, care should always be taken to ensure safety and proper performance.
  • Page 5 • DON’T OVERREACH: Keep proper footing and balance at all times. • DRESS PROPERLY: DO NOT wear loose clothing or jewellery. They can be caught in moving parts. Wear protective hair covering to cover long hair, and gloves and non-slip footwear is recommended when working outdoors.

  • Page 6: Weld & Cut Arc/Tig And Plasma Cutter

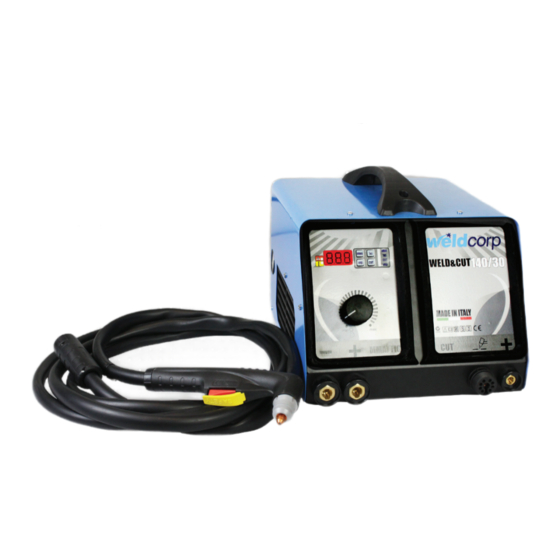

    WELD & CUT ARC / TIG WELDER AND PLASMA CUTTER This is a current inverter generator (DC) for plasma cutting with pilot arc ignition and ARC/ TIG welding. This welder allows cutting of electrical conductive materials (metals and alloys), through the use of gas, usually air, and it allows ARC welding with rutile, basic, stainless steel, cast iron electrodes type and the TIG welding of the most metals except the aluminium alloys.

  • Page 7: Installation

    INSTALLATION Warning: Use all precautions required in the safety general manual before operating the machine, reading carefully the risks associated with the welding and plasma cutter process. The installation must be made by trained personnel in compliance to the standard IEC 60974-9 and the current and local legislation.

  • Page 8: Tig Welding

    WELDER INFORMATION (cont.) ELECTRODE WELDING (ARC/MMA) refer to Page 5 for Fig 1 • Connect the work clamp to the work piece to be welded trying to establish a good point of contact between the metal and the clamp, as close as possible to the area to be welded, insert the electrode into the electrode holder.

  • Page 9: Vrd Function Selection

    WELDER INFORMATION (cont.) VRD FUNCTION SELECTION The voltage between the earth clamp and the electrode holder clamp may be dangerous for the user. The VRD function prevents dangerous voltage value between clamps. The needed voltage for welding is supplied only when the electrode makes contact with the welding part.

  • Page 10: Troubleshooting

    TROUBLESHOOTING Page 9...
  • Page 11 TROUBLESHOOTING (cont.) Table for selection of the welding current according to the electrode (unskilled welder) Page 10...

  • Page 12: Troubleshooting

    TROUBLESHOOTING (cont.) If you are still having difficulty with your welder, do not hesitate to contact our service team on: 1800 011 812 Page 11...

  • Page 13: Spare Parts List

    SPARE PARTS LIST - INVERTER ARC/TIG/PLASMA CUTTER 30 Product Code: WCPC001 Page 12...
  • Page 14 SPARE PARTS LIST - INVERTER ARC/TIG/PLASMA CUTTER 30 Product Code: WCPC001 Page 13...

  • Page 15: Wiring Diagram

    WIRING DIAGRAM Page 14...

  • Page 16: Warranty

    1 YEAR WARRANTY Subject to the warranty conditions below, this Weldcorp product (“the Product”) is warranted by Cyclone Tools Pty Ltd (“the Company”) to be free from defects in material or workmanship for a period of 12 months from the date of original purchase (“the Warranty Period”).
  • Page 17 WARRANTY FORM THIS WARRANTY FORM SHOULD BE REAINED BY THE CUSTOMER AT ALL TIMES For your record and to assist in establishing date of purchase (necessary for in warranty service) please keep your purchase docket and this form completed with the following particulars. PURCHASED FROM SUBURB DATE...
  • Page 18 Manufactured in Italy Cyclone Tools Pty Ltd ABN 89 169 427 061 73C Elizabeth Street Wetherill Park NSW 2164 www.weldcorp.net AUS Helpline: 1800 011 812...
