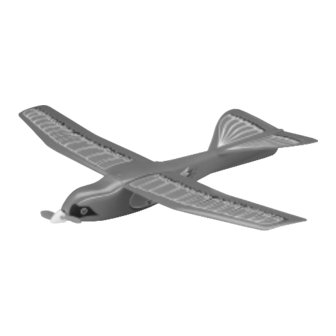

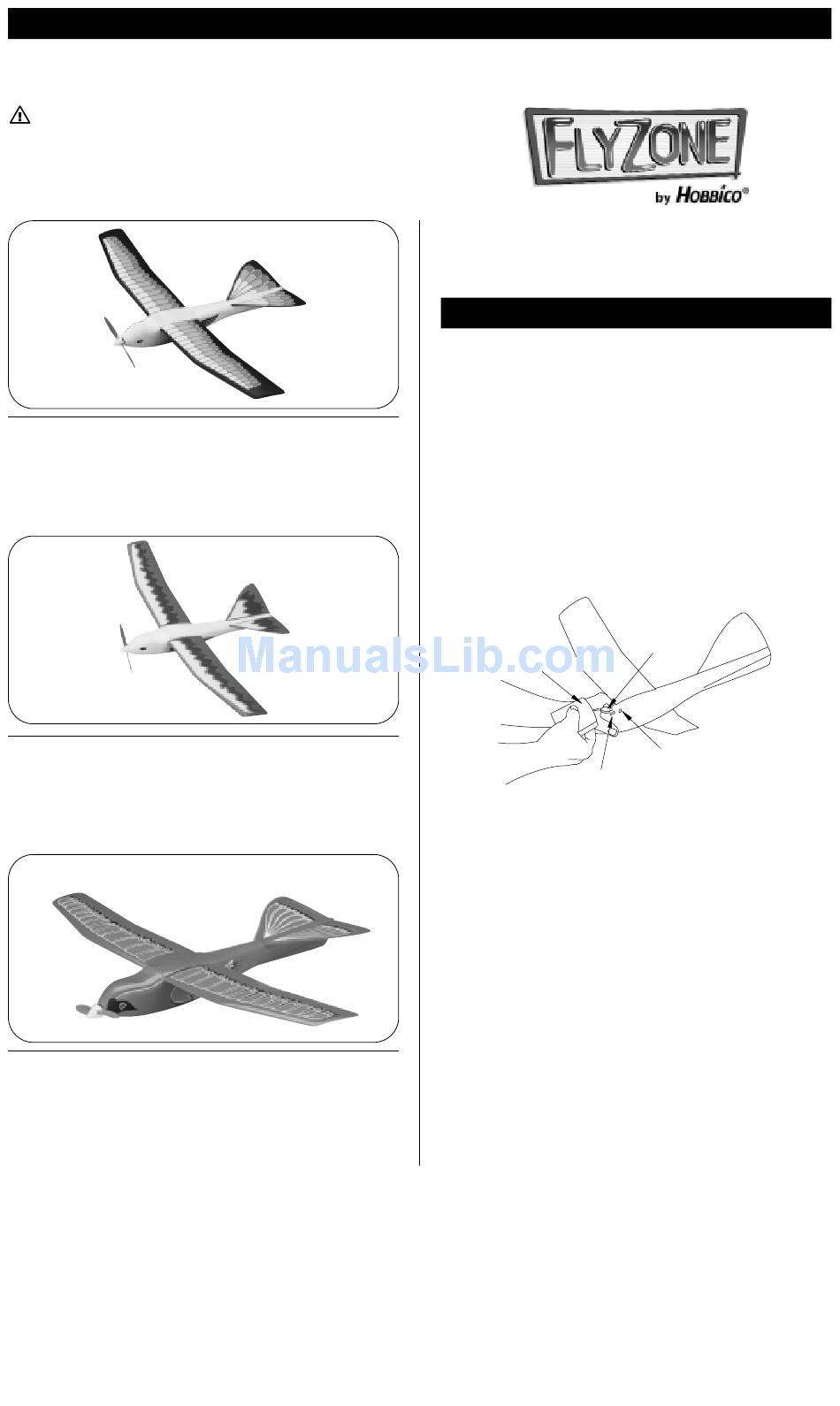

Flyzone Hyper Hawk – HCAA0204 Assembly Manual

ASSEMBLY OF YOUR ELECTRIC FREE-FLIGHT HYPER HAWK, WILD HAWK, OR RED HAWK
WARNING: Read ALL instructions carefully! Improper use of this product may result in personal injury or
damage to the public.
WARNING: CHOKING HAZARD. Small parts.
Not for children less than 3 years.
Recommended for ages 10 and up.
Use with adult supervision.
Replacement Parts
HCAP9902 Charger
HCAA3298 Plastic Parts Bag
HCAA3297 Wing / Tail assembly
HCAQ3275 Propeller (2)
Replacement Parts
HCAP9902 Charger
HCAA3298 Plastic Parts Bag
HCAA3299 Wing / Tail assembly
HCAQ3275 Propeller (2)
Replacement Parts
HCAP9902 Charger
HCAA3410 Plastic Parts Bag
HCAA3412 Wing / Tail assembly
HCAQ3275 Propeller (2)
Hobbico, Inc. guarantees this kit to be free of defects in both material and workmanship at the date of purchase. This warranty does
not cover any component part damaged by use or modification. In no case will Hobbico's liabilities exceed the original cost of the
purchased kit. Further, Hobbico reserves the right to change or modify this warranty without notice. In that Hobbico has no control
over the final assembly, no liability will be assumed nor accepted for any damage resulting from the use of the final
user-assembled product. By the act of using the user-assembled product the user accepts all resulting liability. If the buyer is not
prepared to accept the liability associated with the use of this product, the buyer is advised to immediately return this kit
in new and unused condition to the place of purchase. Please inspect all parts carefully before starting assembly! If any parts
are missing, broken or defective, or if you have any question about the assembly or flying of this airplane, please call us at
(217) 398-8970 and we will be glad to help.
Entire Contents © Copyright 2001
Hyper Hawk – HCAA0204
Wild Hawk – HCAA0206
Red Hawk – HCAA0207
1. Remove the back cover of the charger. Install 4 "AA" alkaline
batteries according to the diagram in the charger. Put the cover
back on the charger. CAUTION: Do not use rechargeable (nickel
cadmium) batteries. Do not mix old and new batteries. Do not
mix alkaline, standard (carbon zinc), or rechargeable (nickel
cadmium) batteries.
2. Before charging your free-flight airplane, make sure the "on-off"
switch is in the "off" position.
3. Insert the charger into the charge socket on the underside of
the airplane.The charger will only fit one way so match the tab on
the charger with the notch on the charge socket.
CHARGER
4. On the first charge, only charge the airplane for 15 seconds.
For longer flights, you may increase the charge time up to 60
seconds.
5. Never charge the airplane for more than 60 seconds. If you do,
you may overheat the batteries in the airplane or the charger and
damage them.
6. When charging is complete, remove the charger from the
airplane.
Caution: Do not put fingers or objects close to or in the
propeller when running.
WARRANTY
CHARGING
CHARGE
CONNECTOR
CHARGE
SOCKET
ON/OFF
SWITCH
HCAZ3107 for HCAA0204/0206/0207
