Interchange SAB100-A Operator's Manual

Pneumatic carton closing staplers
Hide thumbs
Table of Contents

Advertisement

Quick Links

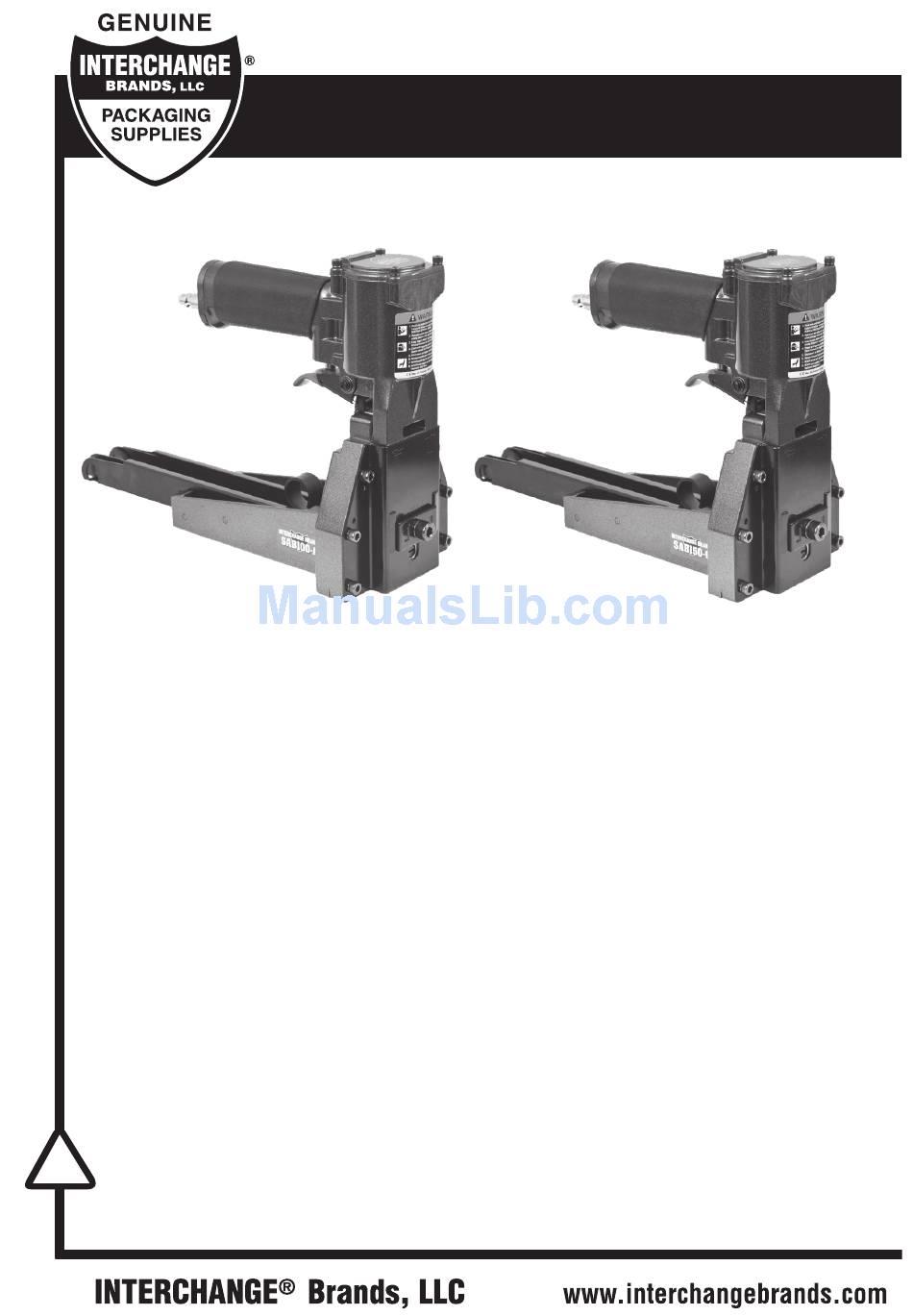

Operator's Manual
Pneumatic Carton Closing Staplers
SAB100-A
SAB150-C
Item No. 64320
Item No. 64330
1-3/8" Crown Carton Closing Stapler
1-1/4" Crown Carton Closing Stapler
5/8" and 3/4"
5/8" and 3/4"
(15mm and 18mm)
(15mm and 18mm)
Ask for
Ask for
Genuine
Genuine
INTERCHANGE
INTERCHANGE
®
®
A58 and A34
C58 and C34
Staples
Staples
!
NOTE:
Please read and fully understand the instructions in this manual before
operating the stapler. Carefully read through this OPERATOR'S MANUAL to ensure efficient, safe
operation. It is recommended that the MANUAL be kept readily available as an important reference
when using this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAB100-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interchange SAB100-A

Summary of Contents for Interchange SAB100-A

  • Page 1 Operator’s Manual Pneumatic Carton Closing Staplers SAB100-A SAB150-C Item No. 64320 Item No. 64330 1-3/8" Crown Carton Closing Stapler 1-1/4" Crown Carton Closing Stapler 5/8" and 3/4" 5/8" and 3/4" (15mm and 18mm) (15mm and 18mm) Ask for Ask for...

  • Page 2: Table Of Contents

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Index Information Page Tool and fastener specifications . . . . . . . . . . . . . . . . . . . . . . . .3 Safety instructions .

  • Page 3: Tool And Fastener Specifications

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Tool & Fastener Information Stapler Specifications: SAB100-A & SAB150-C Tool Dimensions - 12 .60" x 4 .53 x 8 .86" Length x Width x Height ﹙320mm x 115mm x 225mm﹚ Weight ﹙without fasteners﹚...

  • Page 4: Safety Instructions

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Safety Instructions Important Safety Instructions for Operating Staplers READ ALL INSTRUCTIONS DANGER NEVER USE IN PRESENCE OF FLAMMABLE LIQUIDS OR COMBUSTIBLES. Never use any type of flammable gases or oxygen as a power source for the tool . Use filtered, lubricated, and regulated compressed air only .

  • Page 5: Lubrication And Maintenance

    Disconnect the air supply from the tool before lubricating . Turn the tool so the inlet is facing up and put one drop of Interchange Tool Oil or 3-in-1 oil into air inlet . Never use detergent oil or additives . Operate the tool briefly after adding oil .

  • Page 6: Loading The Tool

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Operating Instructions Loading the Tool Disconnect the air supply . Pull pusher back until it stops on pusher pivots then rotate pusher to position for loading staples . Insert 2 sticks of appropriate staples into the magazine from the back .

  • Page 7: Clinch Adjustment

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Operating Instructions Clinch Adjustment Disconnect the air supply . Use rod diameter 3mm or 2 .5mm hexagon wrench key . Turn collar through window clockwise to clinch . Remove adjusting tool after adjustment is made .

  • Page 8: Operating The Tool

    Check and replace any damaged or worn components on the tool. Disconnect the air supply Add a few drops of Interchange Tool Oil or 3-in-1 oil into the air inlet . Install a quick connect fitting to the tool .

  • Page 9: Cleaning The Tool

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Operating Instructions Cleaning the Tool DANGER: Never use gasoline or other flammable liquids to clean the tool. Vapors in the tool may ignite a spark and cause the tool to explode and may result in death or serious personal injury.

  • Page 10: Trouble Shooting

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Trouble Shooting WARNING: Stop using the tool immediately if any of the following problems occur. Serious personal injury could occur. A qualified person or an authorized service center must do any repairs or replacements.

  • Page 11: Teeth Replacement

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Tool Maintenance Teeth Replacement Disconnect the air supply . Remove the magazine unit with flat head screw driver . Loosen screw with 4mm hexagon wrench key . Remove the magazine seat .

  • Page 12: Pusher Spring Replacement

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Tool Maintenance Pusher Spring Replacement Take off the magazine unit with flat head screw driver . Loosen screw and nut with 2 .5mm hexagon wrench key and 7mm socket wrench .

  • Page 13: Piston Replacement

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Tool Maintenance Piston Replacement Disconnect the air supply . Remove the magazine assembly with a flat head screw driver . Remove screws with 4mm hexagon wrench key . Loosen set screw with 3mm hexagon wrench key to unlock adjusting rod .

  • Page 14: Parts List

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Parts List CODE QTY Description NO. CODE QTY Description A00100107 042 A00106001 WASHER A00100201 PISTON 043 A00105801 COVER A00100301 PISTON ROD 044 A01900401 SHAFT A00100401 BLOCK 501 BAC0604142 HEX.SOC. HEAD BOLT...

  • Page 15: Parts Drawing

    Pneumatic Carton Closing Staplers Model No. SAB100-A & SAB150-C Parts Drawing SAB100-A, SAB150-C Parts Drawing ﹙09-1-14﹚ Interchange Brands, LLC...
  • Page 16 This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Interchange Brands Operator’s Manual Models: SAB100-A, SAB150-C Made In Taiwan (11-10-14)
