Operator's Manual
o
15

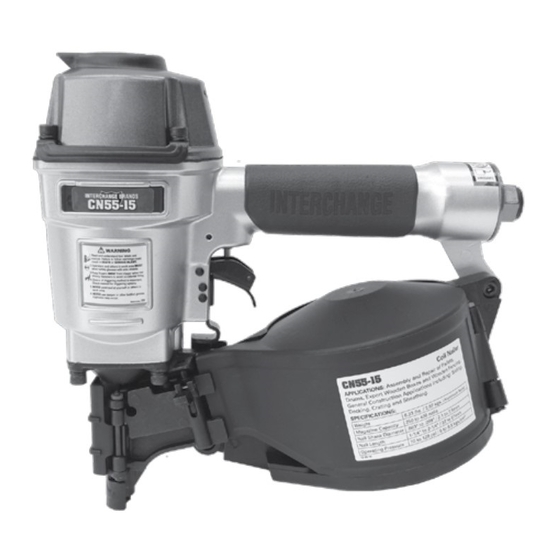

Coil Nailer
Model No. CN55-15
Item No. 65530
Drives Wire Collated Nails
1¼" to 2 ¼" / 32 to 57mm
Ask for
Genuine
INTERCHANGE
®
HWCF Nails
NOte:
Please read and fully understand the instructions in this
manual before operating the pneumatic power tool. Carefully read
through this OPERATOR'S MANUAL to ensure efficient, safe operation. It is
recommended that the MANUAL be kept readily available as an important refer-
ence when using this tool.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Interchange GENUINE CN55-15
Summary of Contents for Interchange GENUINE CN55-15
- Page 1 Item No. 65530 Drives Wire Collated Nails 1¼" to 2 ¼" / 32 to 57mm Ask for Genuine INTERCHANGE ® HWCF Nails NOte: Please read and fully understand the instructions in this manual before operating the pneumatic power tool. Carefully read through this OPERATOR’S MANUAL to ensure efficient, safe operation.
-
Page 2: Table Of Contents
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover Interchange Brands... -
Page 3: Important Information
■ Always wear safety glasses with side shields when operating or servicing tools . ■ Always disconnect the air supply from the tool and empty the magazine when servicing tools . SAVE THIS MANUAL FOR FUTURE REFERENCE! Interchange Brands Operator’s Manual... -
Page 4: Tool Information
15˚ Coil Nails - Flat, Wire Weld Collated Nail Length Shank Diameter Head Diameter 0 .197" to 0 .236" 5 .0mm to 6 .0mm 1-1/4" 2-1/4" 32mm 57mm 0 .083" to 0 .092" 2 .1mm to 2 .3mm Interchange Brands Operator’s Manual... -
Page 5: Parts Identification
. RECommENDED oPERATING PRESSURE: 70 to 120 psi / 5 to 8 .5 kgs . Select the operating air pressure within this range for best fastener performance . Accessories STANDARD ACCESSORIES Eye Protection ① Interchange Brands Operator’s Manual... -
Page 6: Safety Information
KEEP VISITORS AWAY. All visitors should be kept safely away from work area and should not handle the nailer . KEEP OUT OF REACH OF CHILDREN. DO NOT OVERREACH. Keep proper footing and balance at all times . Interchange Brands Operator’s Manual... - Page 7 NEVER USE IN PRESENCE OF FLAMMABLE LIQUIDS OR COMBUSTIBLES. The nailer produces sparks during operation . Never use the nailer on sites containing lacquer, paint, benzine, thinner, gasoline, gases, adhesive agents or other materials which are combustible or explosive . Interchange Brands Operator’s Manual...
- Page 8 The fasteners could be driven into and through the wall and hit a person on the opposite side . 31 . DO NOT DISCONNECT AIR HOSE FROM NAILER WHILE FINGER IS ON THE TRIGGER. The nailer can fire when it is re-connected to an air supply . Interchange Brands Operator’s Manual...
-
Page 9: Employer's Responsibilities
Ensure that nailers are used only when operators and others in work area are wearing EYE PROTECTION . Keep nailer in safe working order . Maintain nailer properly . Ensure that the nailers that require repair are not used before the repair is completed . Interchange Brands Operator’s Manual... -
Page 10: Operating The Nailer
„ Inspect the lubricator before operation to be sure the supply of lubricant is adequate . „ If an inline lubricator is not used, a few drops of oil will need to be added to the air inlet before each use . Interchange Brands Operator’s Manual... -
Page 11: Lubrication
„ Filter-regulator-lubricator units should always be used . Keep the lubricator filled with INTERCHANGE pneumatic tool lubricant . „ If a lubricator is not available, supply 3 to 5 drops of INTERCHANGE pneumatic tool lubricant into the air plug on the tool twice a day . -
Page 12: Operating Instructions
Spectacles and face shields without the side shields do not provide adequate protection . Keep hands and body away from the discharge outlet when driving the fasteners to prevent striking the hands or body by mistake . Interchange Brands Operator’s Manual... -
Page 13: Nail Loading
. The nail heads fit in slot on nose . SWING COVER CLOSED CLOSE THE DOOR Check that the latch engages . ﹙If it does not engage, check that the nail heads are in the slot on the nose﹚ . Interchange Brands Operator’s Manual... -
Page 14: Testing The Nailer
■ Always follow the tool manufacturer’s safety and maintenance instructions . ■ Always wear safety glasses with side shields when operating or servicing tools . ■ Always disconnect the air supply from the tool and empty the magazine when servicing tools . Interchange Brands Operator’s Manual... -
Page 15: Troubleshooting
Tool is dry, lack of lubrication Apply air tool lubricant Nails jam in tool Bent nails Replace with new nails Broken or chipped driver Replace piston/driver assembly/bumper Wrong size nail Replace with correct type of nail Interchange Brands Operator’s Manual... -
Page 16: Maintenance And Inspection
2 . Remove all fasteners from the tool . 3 . Connect the air hose and free-fire ﹙blank-fire﹚ the tool . The lowered air pressure will be enough to free-fire the tool . Slow speed operation tends to warm up the moving part . Interchange Brands Operator’s Manual... -
Page 17: Parts Drawing/Schematics
Coil Nailer Model No. CN55-15 Item No. 65530 Drives Wire Collated Nails (1-1/4" to 2 -1/4" / 32 to 57mm) Parts Drawing/Schematics, Parts List & Parts Kits PARTS DRAWING/SCHEmATICS FoR CN55-15 Interchange Brands Operator’s Manual... -
Page 18: Parts List
FEED PISTON 510280 O-RING 9X2 510320 O-RING 10X2.65 323180 WASHER 510430 O-RING 20X2.65 321540 SPRING SEAT 620120 FEED PISTON SPRING (A) 324520 SLEEVE 620130 FEED PISTON SPRING (B) D321411 DRIVER UNIT 320280 SPRING GUIDE T420091 TRIGGER VALVE Interchange Brands Operator’s Manual... -
Page 19: Parts Kits
■ Always follow the tool manufacturer’s safety and maintenance instructions . ■ Always wear safety glasses with side shields when operating or servicing tools . ■ Always disconnect the air supply from the tool and empty the magazine when servicing tools . Interchange Brands Operator’s Manual... -
Page 20: Warranty
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. CN55-15 Coil Nailer Interchange Brands CN55-15 Made In China Operator’s Manual (08/06/15)
