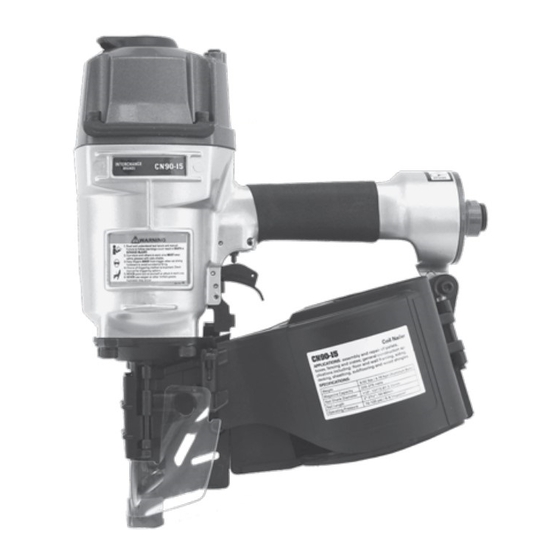

Interchange CN90-15 Operator's Manual

15' coil nailer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual
o
15
Coil Nailer
Model No. CN90-15
Item No. 65590
Drives Wire Collated Nails
2" to 3-9/16" / 50 to 90mm
Ask for
Genuine
INTERCHANGE
®
HWCF Nails
NOte:
Please read and fully understand the instructions in this
manual before operating the pneumatic power tool. Carefully read
through this OPERATOR'S MANUAL to ensure efficient, safe operation. It is
recommended that the MANUAL be kept readily available as an important refer-
ence when using this tool.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CN90-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interchange CN90-15

Summary of Contents for Interchange CN90-15

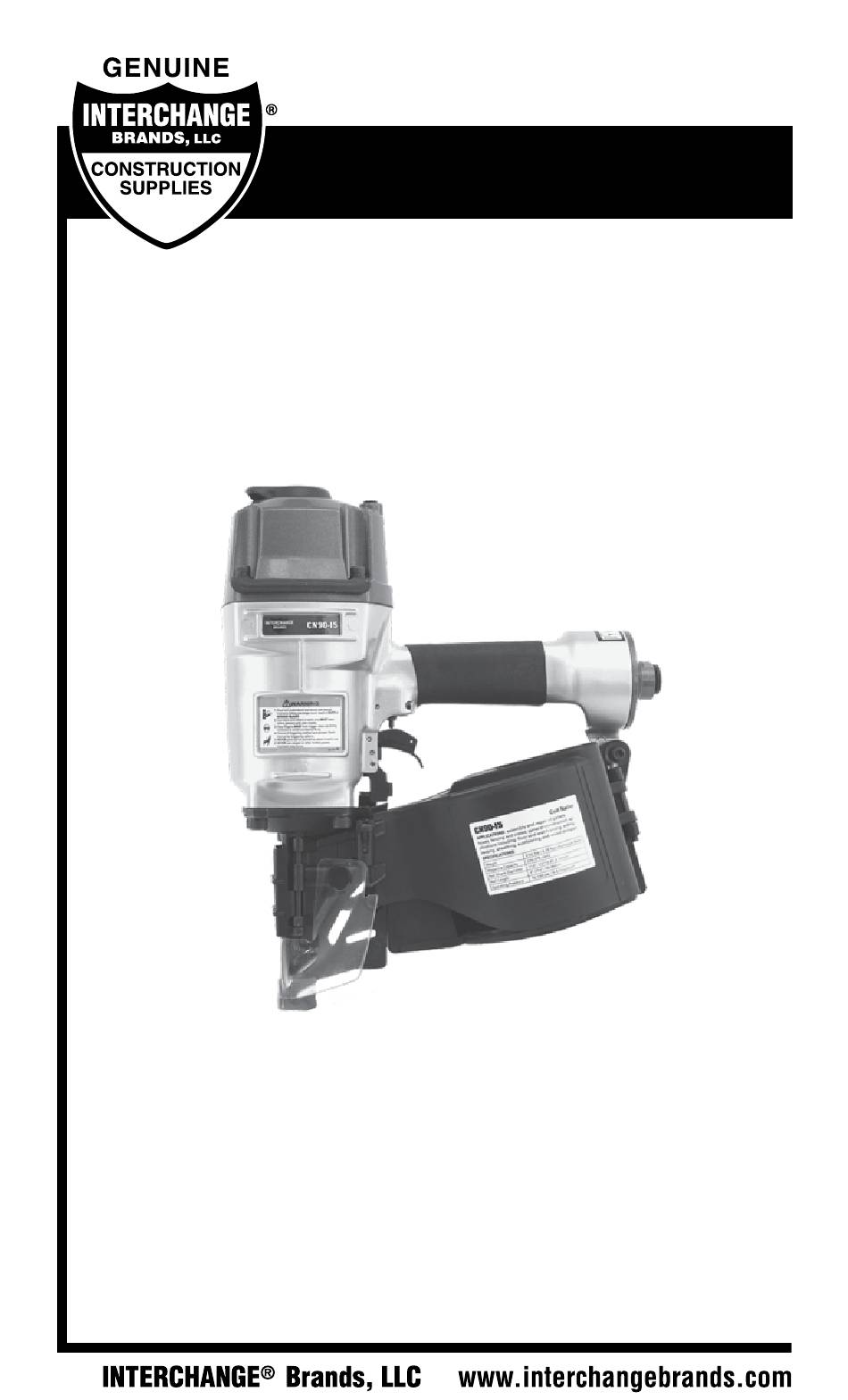

  • Page 1 Operator’s Manual Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails 2" to 3-9/16" / 50 to 90mm Ask for Genuine INTERCHANGE ® HWCF Nails NOte: Please read and fully understand the instructions in this manual before operating the pneumatic power tool. Carefully read through this OPERATOR’S MANUAL to ensure efficient, safe operation.

  • Page 2: Table Of Contents

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Index Information . . . . . . . . . . . . . . . . . . . . . . . . . . . Page Important Information .

  • Page 3: Important Information

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Important Information WARNING: The warnings, cautions and instructions discussed in this instruction manual can not cover all possible conditions and situations that may occur . It must be understood by the operator that common sense and caution are factors which can not be built into this product, but must be supplied by the operator .

  • Page 4: Tool Information

    WARNING: Be sure to use only the genuine nails recommended for the CN90-15 . The use of any other nails can result in tool malfunction, leading to serious injuries . Only the nail sizes shown in the table below can be driven with this nailer .

  • Page 5: Parts Identification

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Parts Identification ➑ ➋ ➐ ➊ Casting ➏ ➋ Cylinder Cap ➌ Safety ➍ Guide Body ➊ ➎ Magazine ➏ Trigger ➐...

  • Page 6: Safety Information

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Safety Information Important Safety Instructions for Operating Nailers READ ALL INSTRUCTIONS OPERATORS AND OTHERS IN WORK AREA MUST WEAR SAFETY GLASSES WITH SIDE SHIELDS.
  • Page 7 Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) 10 . STAY ALERT. Watch what you are doing . Use common sense and do not operate the nailer when you are tired . The nailer should never be used if you are under the influence of alcohol, drugs or medication that makes you drowsy .
  • Page 8 Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) 22 . KEEP ALL SCREWS AND COVERS MOUNTED TIGHTLY IN PLACE. Keep all screws and covers tightly mounted . Check their condition periodically .

  • Page 9: Employer's Responsibilities

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) 32 . DISCONNECT THE AIR SUPPLY AND EMPTY THE MAGAZINE WHEN THE NAILER IS NOT IN USE. NEVER LEAVE A NAILER UNATTENDED WITH THE HOSE ATTACHED.

  • Page 10: Operating The Nailer

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Operating the Nailer NOtE: The information contained in this Manual is designed to assist you in the safe operation of the nailer . Some illustrations in this Manual may show details or attach- ments that are different from those on your nailer .

  • Page 11: Lubrication

    „ Filter-regulator-lubricator units should always be used . Keep the lubricator filled with INTERCHANGE pneumatic tool lubricant . „ If a lubricator is not available, supply 3 to 5 drops of INTERCHANGE pneumatic tool lubricant into the air plug on the tool twice a day .

  • Page 12: Operating Instructions

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Operating The Nailer DANGER: Operators and others in work area must wear safety glasses with side shields that conform to ANSI Z87 .1 specifications .

  • Page 13: Nail Loading

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Nail Loading OPEN THE MAGAZINE Hold door and door latch and pull up door latch . Swing door open . Swing magazine cover open .

  • Page 14: Testing The Nailer

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Testing The Nailer Before using the nailer, test it by using the check list below . If abnormal tests occur, stop using the nailer and contact an authorized service center immediately .

  • Page 15: Troubleshooting

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Driving Depth Adjustment Dial (on some models) WARNING: Always disconnect air supply before changing the adjustment dial . ■ With air pressure set, drive nails into a piece of scrap material to determine if an adjustment is necessary .

  • Page 16: Maintenance And Inspection

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Maintenance and Inspection Read the section titled SAFETY. SERVICE AND REPAIRS All quality tools will eventually require servicing or replacement of parts due to wear from normal use . It is recommended that these operations should be performed by a professional technician .

  • Page 17: Parts Drawing/Schematics

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) Parts Drawing/Schematics, Parts List & Parts Kits PARTS DRAWING/SCHEMATICS FOR CN90-15 55 49 47 46 CN90-15 Parts Drawing (04-12-12) Interchange Brands...

  • Page 18: Parts List

    Coil Nailer Model No. CN90-15 Item No. 65590 Drives Wire Collated Nails (2" to 3-9/16" / 50 to 90mm) PARTS LIST FOR CN90-15 ORDER NO. DESCRIPTION ORDER NO. DESCRIPTION 610280 Bolt M8X20 420170 Pin Cap (A) 320480 Exhaust Cover 510430 O-ring 20X2.65...

  • Page 19: Parts Kits

    Piston/Driver Assembly for CN90-15 98628 CN90K3 Kit #3 Head Cap Assembly for CN90-15 98630 CN90K4 Kit #4 Trigger Valve Assembly with Trigger for CN90-15 98632 CN90K5 Kit #5 Magazine Assembly for CN90-15 98634 CN90K6 Kit #6 Guide Body Assembly for CN90-15...

  • Page 20: Warranty

    This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. CN90-15 Coil Nailer Interchange Brands CN90-15 Operator’s Manual (8/6/15)

This manual is also suitable for:

65590
