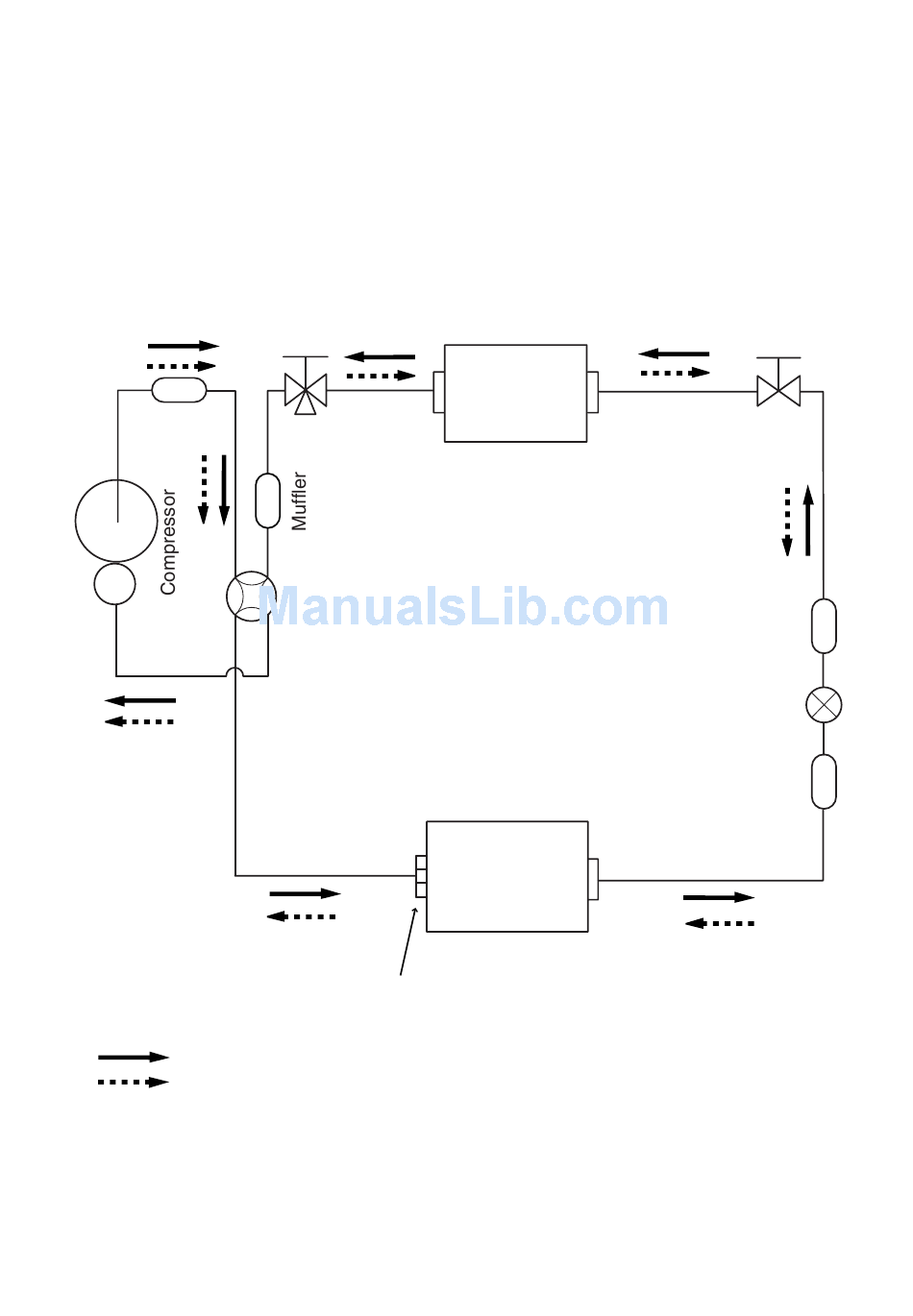

REFRIGERANT SYSTEM DIAGRAM
Models :
ASHB09LDC / AOHS09LDC
ASHB12LDC / AOHS12LDC
Muffler
Cooling
Heating
Refrigerant pipe diameter
Liquid : 1/4" (6.35 mm)
Gas : 3/8" (9.52 mm)
2006.02.06
3-Way
valve
4-Way valve
Heat exchanger
( OUTDOOR )
AOHS09LDC : 2 pass
AOHS12LDC : 4 pass
Heat exchanger
( INDOOR )
3
2-Way
valve
Strainer
Expansion valve
Strainer
