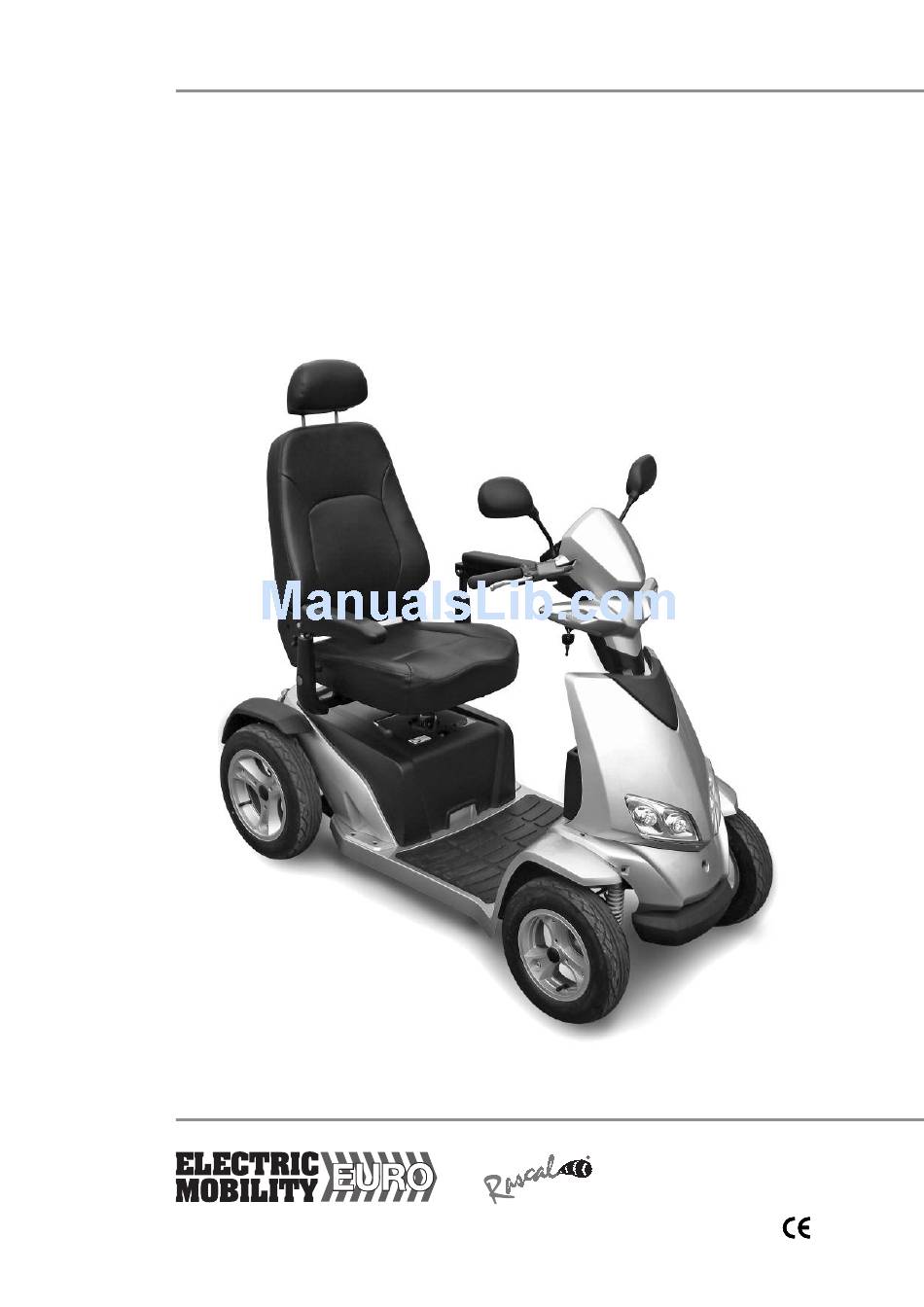

- Page 1 Rascal Vision Scooter Owner’s Manual & Service Record Rascal Vision Electric Mobility Euro Limited, Canal Way, Ilminster , Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1: 04/12...
- Page 2 Warning! This manual contains important safety notices. Please take time to read and understand them. Ignoring them may endanger you or others. Rascal Vision Scooter Owner's Manual and Service Record...
-
Page 3: Table Of Contents
Dealer information Contents Features and layout Safety information Intended use Safety Information Controls Freewheel Device Brakes Armrest adjustment Seat-back angle adjustment Swivel seat Seat position adjustment Tiller folding Transferring in and out of your scooter. Operation Driving the vehicle Driving the vehicle - hazards Transporting your scooter Assembling your scooter following transportation Battery charging... -
Page 4: Dealer Information

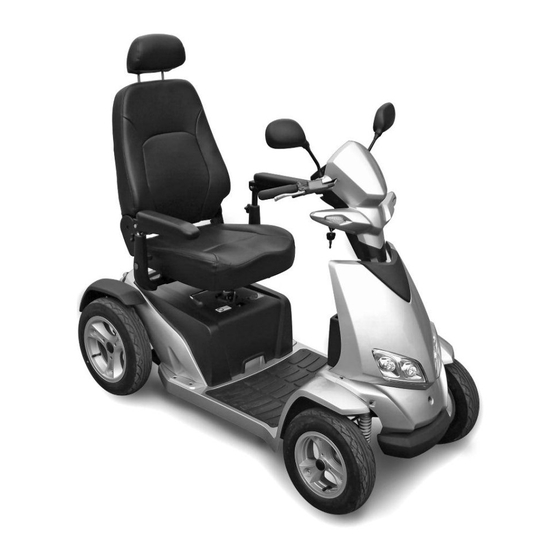

Mobility uro Limited Canal Way, Ilminster, Somerset TA19 9DL Company Registration in England No. 2419231 Features and Layout Photo shows the Rascal Vision scooter. See the technical specification for full details. Rear view mirrors Fold down lever adjustable backrest... -
Page 5: Safety Information
Technical Specification Sheet) who require a robust, comfortable scooter that is ideal for shopping and other visits. The Rascal Vision is a medium range 8mph scooter which is suited for travel on public roads when this is required. When driven on pavements and other pedestrian areas, your scooter should be set on the low preset speed setting (max 4 mph - see controls section of this manual). -
Page 6: Safety Information
Warning ! Sitting for long periods may increase the chance of thromboses or pressure sores. Users prone to such conditions are advised to take medical advice. Warning ! The Rascal Vision scooter has been designed and tested for drivers with weights up to those in the Technical Specification Sheets. These weights should never be exceeded. - Page 7 Warning ! Battery Charge Level. Before driving off, always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey. Warning ! Castoring. Be aware that, if you set off when the front wheels are not straight, the initial movement could be partially sideways.
-
Page 8: Controls
"I" position. 4. Horn: Press the button and the horn will sound, if power is on. Release and the horn will cease. Rascal Vision Scooter Owner's Manual and Service Record... - Page 9 5. Ignition Key: Remember to remove the key when not in use. Do not leave the ignition on when not in use, especially when charging the vehicle (Fig 1). Note: You may need to press the ignition key gently inwards before it will allow itself to be turned. 6.
-
Page 10: Freewheel Device
Warning! Do not use the emergency brake for normal driving and never engage the lever locking latch unless the scooter is stationery. Rascal Vision Scooter Owner's Manual and Service Record... -
Page 11: Armrest Adjustment
Warning! Never attempt to disassemble or adjust the braking system. Any maintenance must be carried out by your authorised dealer. Armrest adjustment When preparing to sit on the scooter, first lift one armrest to enable easy access (Fig 5). When riding always have the armrest in the down position. -
Page 12: Swivel Seat
• Adjust the tiller to suit your driving position, ensuring the tiller is firmly locked in place before driving off. Warning! Before driving, always check that the tiller is securely in the upright position. Safe steering may be impossible if you do not ! Rascal Vision Scooter Owner's Manual and Service Record... -
Page 13: Transferring In And Out Of Your Scooter
Transferring In And Out Of The Scooter If you feel at all uncertain about getting in or out of the scooter seek assistance. Transferring into the Scooter from the Front Before getting in: • Make sure that the scooter is on a level surface, and it is not in Freewheel mode. -
Page 14: Driving The Vehicle
Note: Never push or pull both paddles at the same time as you may damage your scooter's control system and cause it to behave erratically. 17. As you get accustomed to the power you can increase the speed. Rascal Vision Scooter Owner's Manual and Service Record... -
Page 15: Driving The Vehicle - Hazards
– If there is a blind corner sound the horn. Tip: The Rascal Vision Scooter is equipped with an inertia sensor that will automatically reduce the scooter speed during potentially dangerous cornering. If you feel power loss during a very tight turn, this is quite normal. -
Page 16: Transporting Your Scooter
It is possible to fold the tiller down and either fold the seat forwards or remove it completely for storage or to assist in loading into a vehicle using ramps or a hoist. Rascal Vision Scooter Owner's Manual and Service Record... - Page 17 To remove the seat: Fold the seat-back flat and grasp the seat as shown (Fig 14) and lift it away from the scooter frame. Tip: Removing the seat may be easier if you first use the seat swivel function to rotate the seat so it is at 90˚...
-
Page 18: Assembling Your Scooter Following Transportation
You are now ready to drive the scooter away. Rascal Vision Scooter Owner's Manual and Service Record... -
Page 19: Battery Charging
Battery Charging Warning! When charging batteries NEVER smoke or charge batteries in a place where there are naked flames such as gas-fired heaters as, under exceptional circumstances, batteries may give off gases that could ignite and explode. If the scooter has been damaged, it is possible that the batteries have been affected. - Page 20 Your batteries are built-into the scooter and are not user-serviceable. Your dealer will replace them when they are exhausted and dispose of them in line with environmental regulations applicable at the time. Rascal Vision Scooter Owner's Manual and Service Record...
-
Page 21: User Maintenance
User Maintenance It is important for safety that you carry out the following checks before use. Visually check the machine for damage. Visually check the tyres for damage. Check the steering moves freely. Check that the tiller is secure and that the tiller thumb-wheel is tight. Check that the seat is located correctly. -
Page 22: Scooter Diagnostic Functions
Tell them about the symbols & numbers appearing on the LCD screen; this will help the engineer to identify the problem before he calls to fix it. Your dealer is there to help you. Rascal Vision Scooter Owner's Manual and Service Record... -
Page 23: Troubleshooting Guide
Troubleshooting Guide This table is a guide to fault finding. The fault may be a simple fix. If you have any doubts phone your dealer. Symptom Solution • Scooter does not move. • Batteries flat - check level. when power is switched on. •... -
Page 24: Additional Information
Your dealer can advise you on the correct equipment to be used depending on your vehicle and your physical capabilities. Please remember that the Rascal Vision scooter is very heavy and will require a large car/MPV or van to enable transportation. -
Page 25: Engineers Checklist
Engineer’s Checklist for the Rascal Vision scooter Obtain all comments from the customer on the condition and serviceability of the scooter and then complete an Initial diagnostic road test. Record all defects to be corrected. Now check, test and complete the following: •... -
Page 26: Guarantees
Guarantees 12 Month Guarantee Electric Mobility Euro Limited (the ‘Company’) guarantees its products against defects in materials and workmanship under normal use for a period of one year from the date of purchase by the original retail purchaser (the ‘Guarantee Period’). If a defect arises and a valid claim is received within the Guarantee Period, at its option, the Company may either (1) repair the defect at no charge, using new or replacement parts;... -
Page 27: Technical Information Regarding Emi
The Guarantees only apply to the original purchaser and are non-transferable. Except in respect of death or personal injury caused by the Company’s negligence, the Company shall not be liable by reason of any representation (unless fraudulent), or any implied warranty, condition or other term, or any duty at common law or under the terms of the Guarantees, for any indirect, special or consequential loss or damage (whether for loss of profit or otherwise), costs, expenses or other claims for compensation whatsoever (whether caused by the negligence of the Company or its employees or otherwise) which arise out of or in connection with the... -
Page 28: Technical Specification
This scooter meets the relevant requirements of ISO 7176:14 2008 *Range on full charge and flat ground. Due to a policy of continual improvement, Electric Mobility reserves the right to change specifications without prior notice. **The Rascal Vision is also available in a 15 km/h speed rating version for European use. -
Page 29: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 30 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 31: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 32 Rascal Vision Scooter Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 04/12...
