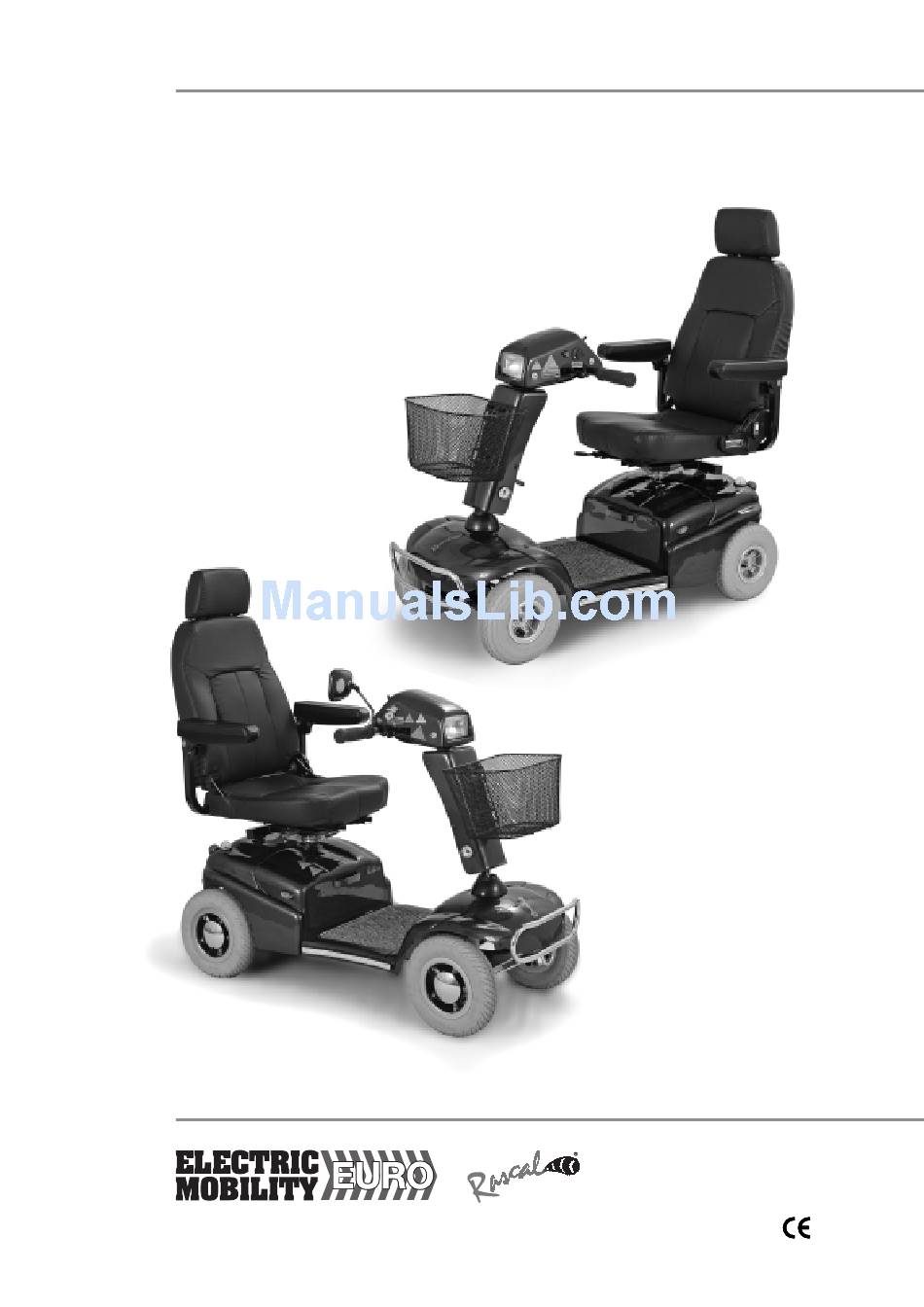

- Page 1 450 / 650 Scooter Owners Manual & Service Record Model 450 Model 650 Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 2: 01/08...
- Page 2 Warning! This manual contains important safety notices. Please take time to read and understand them. Ignoring them may endanger you or others. 450 & 650 Scooter Owner’s Manual & Service Record...
-
Page 3: Table Of Contents
Contents Dealer information Features and layout Safety information Intended use Safety Information Controls - Dashboard Controls - Driving description Freewheel Device Brakes Seat and armrest adjustment Handlebar adjustment Swivel seat Tiller adjustment Driving the vehicle Driving the vehicle - hazards Transporting your scooter Battery charging User maintenance... -
Page 4: Dealer Information

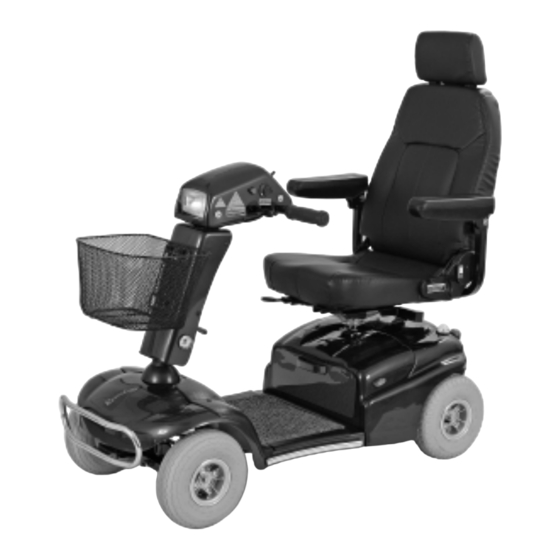

Electric Mobility Euro Limited Canal Way, Ilminster, Somerset TA19 9DL Company Registration in England No. 2419231 Features and Layout Photo shows 650 model. Features are similar for the 450 model scooter. Charging Point Forward/reverse lever Fold down backrest Removable front basket... -
Page 5: Safety Information
By law the 450 model is limited to 4 m.p.h. and is not suitable for road use. The 650 model is capable of 6 m.p.h. and is designed for occasional road use. The 650 model should be driven at no more than 4 m.p.h. -
Page 6: Safety Information
Warning ! Sitting for long periods may increase the chance of thromboses or pressure sores. Users prone to such conditions are advised to take medical advice. Warning ! The 450 & 650 model scooters have been designed and tested for drivers up to 21 stone or 300 lbs or 136kgs. This weight should never be exceeded. -
Page 7: Controls - Dashboard
Controls - Dashboard Before driving your vehicle it is important to familiarise yourself with the controls. Do not attempt to drive the vehicle before reading the rest of this Handbook. Hazard Warning & Charging Socket Dashboard Description Indicators: On the top left hand side of the dashboard there is a left and right indicator switch. Battery Indicator: This instrument shows the level of charge in the batteries. -
Page 8: Freewheel Device
Push the lever down to the lower position. This is the normal operating position. The brakes are enabled, and the vehicle can only operate with the lever in this position 450 & 650 Scooter Owner’s Manual & Service Record... -
Page 9: Brakes
Brakes There are two braking systems. The first works with the accelerator. When the accelerator is released the scooter will automatically brake and bring the scooter to a stop. When the scooter stops the automatic brake will engage. This will stop the vehicle rolling forward or backward. When you start, the brake will automatically disengage. -
Page 10: Handlebar Adjustment
The tiller is now free to move. Move the tiller to the desired position and return the lever to the locked position while ensuring the lock pin is fully engaged in the hole. Before driving, always check that the tiller is locked. 450 & 650 Scooter Owner’s Manual & Service Record... -
Page 11: Driving The Vehicle
Driving the Vehicle Warning! Read this before driving the vehicle! Whether or not this is your first mobility vehicle, please read these guidelines as all vehicles differ. Failure to do this may cause damage to yourself, a third party or the vehicle. Before you set out, do check the weather forecast. -
Page 12: Driving The Vehicle - Hazards
Pneumatic Tyres: Your vehicle is fitted with pneumatic tyres to give you a smooth comfortable ride over uneven ground. Repair of tyres or wheels should be by your local dealer. If you are particularly concerned about punctures consult you local dealer for advice on puncture proofing products. 450 & 650 Scooter Owner’s Manual & Service Record... -
Page 13: Transporting Your Scooter
Dismantling the scooter involves lifting and handling heavy parts. Weights are given in the Technical Specification; consider if you need help in handling parts before you try to lift them. The 450 and 650 models can be transported in estate cars using ramps. By lowering the tiller and removing the seat the height can be reduced to make entry into the boot of most estate cars possible. -
Page 14: Battery Charging
This will gradually discharge your battery. The batteries are the lifeblood of your vehicle. Their characteristics can change depending on charging, temperature, usage and other factors. 450 & 650 Scooter Owner’s Manual & Service Record... -
Page 15: User Maintenance
Battery Charging (con’t) Listed below are guidelines to prolong battery life. After using your vehicle always charge it at the end of the day even after a short journey. If you do not use your vehicle for a prolonged period, place it on charge once a week, overnight. Always use the correct charger with the correct batteries. -
Page 16: Troubleshooting Guide
Do not carry children as passengers. The product is designed for single person use only. Keep all packaging well away from children. They could be harmed. 450 & 650 Scooter Owner’s Manual & Service Record... -
Page 17: Frequently Asked Questions
How long should I keep my vehicle before I change it? It is important that the vehicle you have suits your needs and abilities. Your 450 & 650 model scooter should serve you well for many years but change it if at any time you feel it no longer meets your needs. Consult your dealer on the condition of your vehicle and remember vehicles of any type become more expensive to maintain the older they get. -
Page 18: Servicing & Maintenance
Important Note for the Engineer Enquire if the customer is satisfied with the product. Please report all points good or bad directly to: Electric Mobility +(0)1460 258100 If you have any comments please include them. 450 & 650 Scooter Owner’s Manual & Service Record... -
Page 19: Guarantee & Warranty
Euro Ltd Customer Service Department within 15 days from receipt of product. If a defective part appears within the stated limited warranty period and the purchaser has given Electric Mobility Euro Limited immediate notice the Company will repair the part or at its option replace the part with a similar part. No allowance will be made for repairs to any equipment without the expressed written or verbal approval of Electric Mobility Euro Limited. -
Page 20: Technical Specification
100 (4) Maximum safe descendable kerb height mm (in) 100 (4) Due to a policy of continual improvement Electric Mobility Euro Ltd. reserves the right to change the specification without prior notice. 450 & 650 Scooter Owner’s Manual & Service Record... -
Page 21: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 22 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 23: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 24 450 / 650 Scooter Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL P/N: 300905-27 Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 07/07...
