- Page 1 Rascal Partner Scooter Owner’s Manual & Service Record Rascal Partner Electric Mobility Euro Limited, Canal Way, Ilminster , Somerset T 19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1: 04/11...
- Page 2 Warning! This manual contains important safety notices. Please take time to read and understand them. Ignoring them may endanger you or others. Rascal Partner Scooter Owner's Manual and Service Record...
-
Page 3: Table Of Contents
Dealer information Contents Features and layout Safety information Intended use Safety Information Controls Freewheel Device Brakes rmrest adjustment Swivel seat (optional) Tiller folding Transferring in and out of your scooter. Operation Driving the vehicle Driving the vehicle - hazards Transporting your scooter ssembling your scooter following transportation Battery charging User maintenance... -
Page 4: Dealer Information

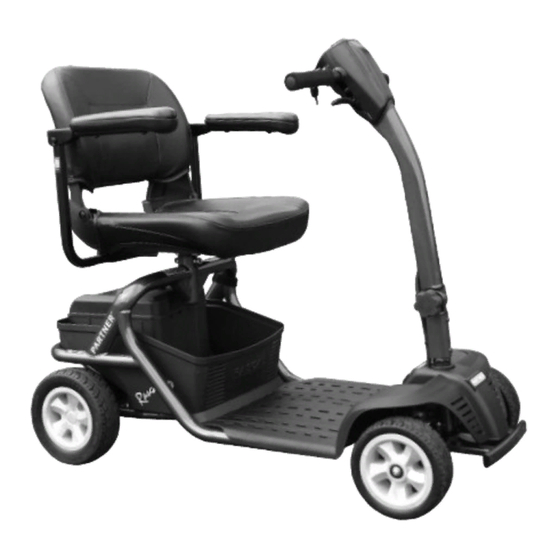

Mobility uro Limited Canal Way, Ilminster, Somerset T 19 9DL Company Registration in England No. 2419231 Features and Layout Photo shows the Rascal Partner scooter. See the technical specification for full details. Fold down backrest Finger control lever Fold up / adjustable... -
Page 5: Safety Information
Users should also regularly assess their ability to operate their vehicle safely. The Rascal Partner scooter should not be used on potholed, rutted or slippery surfaces such as grass. -
Page 6: Safety Information
Warning ! Sitting for long periods may increase the chance of thromboses or pressure sores. Users prone to such conditions are advised to take medical advice. Warning ! The Rascal Partner scooter has been designed and tested for drivers with weights up to those in the Technical Specification Sheets. These weights should never be exceeded. - Page 7 Warning ! Entanglement. Do not wear clothing or carry items on the scooter that could become entangled in wheels or other moving parts whilst operating the scooter. Severe injury may result. Warning ! Battery Charge Level. Before driving off, always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey.
-
Page 8: Controls
To reverse, pull the left lever towards you. Do not pull both levers at once. Note. The controls can be changed for customers with a left-hand bias. Please contact your local dealer for information. Rascal Partner Scooter Owner's Manual and Service Record... -
Page 9: Freewheel Device
Charging Point: The charging point is situated at the rear of the scooter on the right hand side. (see Battery Charging section for further instructions). Freewheel Device When the vehicle is switched off the brakes are automatically engaged. This is called “Failsafe Braking”. lso, if the batteries are flat, the brakes are applied. -
Page 10: Rmrest Adjustment
The tiller can be adjusted to achieve a comfortable driving position. • Rotate the knurled knob anti-clockwise sufficiently for the retaining serrations to allow the tiller to move. djust the tiller so that your driving position is safe and comfortable. Rascal Partner Scooter Owner's Manual and Service Record... -
Page 11: Transferring In And Out Of Your Scooter
• Rotate the knurled knob clockwise and ensure that it is tight and the retaining serrations are fully engaged • djust the tiller to suit your driving position, ensuring the tiller is firmly locked in place before driving off. Warning! Before driving, always check that the tiller is securely in the upright position. -
Page 12: Operation
10. Make sure that your shopping basket is not overloaded (See Technical Specification Sheets) 11. Ensure your feet are securely on the footrest areas. 12. Check you have adjusted the seat as instructed in this manual. Rascal Partner Scooter Owner's Manual and Service Record... -
Page 13: Driving The Vehicle - Hazards
13. Make sure the way ahead is clear. 14. Switch on the power. Check the battery level indicator is in the green area. 15. Speed Control. Set the speed control to a low setting. 16. Gently actuate the finger controls (either forward or reverse) and steer in the direction required. The vehicle will now move off. -
Page 14: Transporting Your Scooter
This vehicle is not suitable for use as a seat for an occupant in a motor vehicle. Warning! Do not stand the scooter up on its ends or sides as it may become unstable and topple causing an injury. Rascal Partner Scooter Owner's Manual and Service Record... - Page 15 To transport your scooter you will need specialist lifting equipment and / or ramps. Your dealer will be able to advise you on the best solution for your particular needs. It is possible to fold the tiller down and either fold the seat forwards or remove it completely for storage or to assist in loading into a vehicle using ramps or a hoist.
-
Page 16: Ssembling Your Scooter Following Transportation
Finally check the scooter is not damaged and it is properly assembled, checking that the battery indicator shows the battery is charged, the freewheel lever is in the drive position and the finger controls operate correctly. You are now ready to drive the scooter away. Rascal Partner Scooter Owner's Manual and Service Record... -
Page 17: Battery Charging
Battery Charging Warning! When charging batteries NEVER smoke or charge batteries in a place where there are naked flames such as gas-fired heaters as, under exceptional circumstances, batteries may give off gases that could ignite and explode. lways make sure that the battery pack is not damaged. Never charge the scooter battery pack outside as the charger is not designed to get wet. - Page 18 This should only be done by appropriately skilled/qualified personnel. The battery location is marked by the symbol The screw that needs to be released to gain access to the batteries is marked by the symbol. Rascal Partner Scooter Owner's Manual and Service Record...
-
Page 19: User Maintenance
User Maintenance It is important for safety that you carry out the following checks before use. Visually check the machine for damage. Visually check the tyres for damage. Check the steering moves freely. Check that the tiller is secure and that the tiller thumb-wheel is tight. Check that the seat is located correctly. -
Page 20: Scooter Diagnostic Functions
Tell them about the flash code; this will help the engineer to identify the problem before he calls to fix it. Your dealer is there to help you. Rascal Partner Scooter Owner's Manual and Service Record... -
Page 21: Troubleshooting Guide
Troubleshooting Guide This table is a guide to fault finding. The fault may be a simple fix. If you have any doubts phone your dealer. Symptom Solution • Scooter does not move. • Batteries flat - check level. when power is switched on. •... -
Page 22: Dditional Information
I fit weatherproofing such as a canopy ? No, the Rascal Partner model is too small to have a canopy as they can adversely affect stability and handling. How long will my batteries last ? This is a difficult question as it depends on many factors. The life of a battery depends upon the number of cycles the battery goes through, the peak loads and on the conditions of use. -
Page 23: Engineers Checklist
Engineer’s Checklist for the Rascal Partner scooter Obtain all comments from the customer on the condition and serviceability of the scooter and then complete an Initial diagnostic road test. Record all defects to be corrected. Now check, test and complete the following: •... -
Page 24: Guarantee & Warranty
Mobility Euro Limited. ny description, specifications, samples, models, bulletins or similar materials used in connection with the sales of Electric Mobility Euro Limited products are for the sole purpose of identifying the equipment and are not to be construed as expressed warranties. This limited warranty applies only to the original purchaser of the equipment and is not transferable. -
Page 25: Technical Specification
Technical Specification - Rascal Partner Scooter Wheelchair type Class Class , B or C Class B Department of Transport Class Class 1 2 or 3 Class 2 Overall dimensions fully assembled length x width x height mm (in) 1118 (44) x 600 (24) x 917 (36.1) -
Page 26: Service Log
Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service Rascal Partner Scooter Owner's Manual and Service Record... -
Page 27: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 28 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, T 19 9Z Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, T 19 9Z...
- Page 29 Notes...
- Page 30 Notes Rascal Partner Scooter Owner's Manual and Service Record...
- Page 31 Notes...
- Page 32 Rascal Partner Scooter Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset T 19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 04/11...
