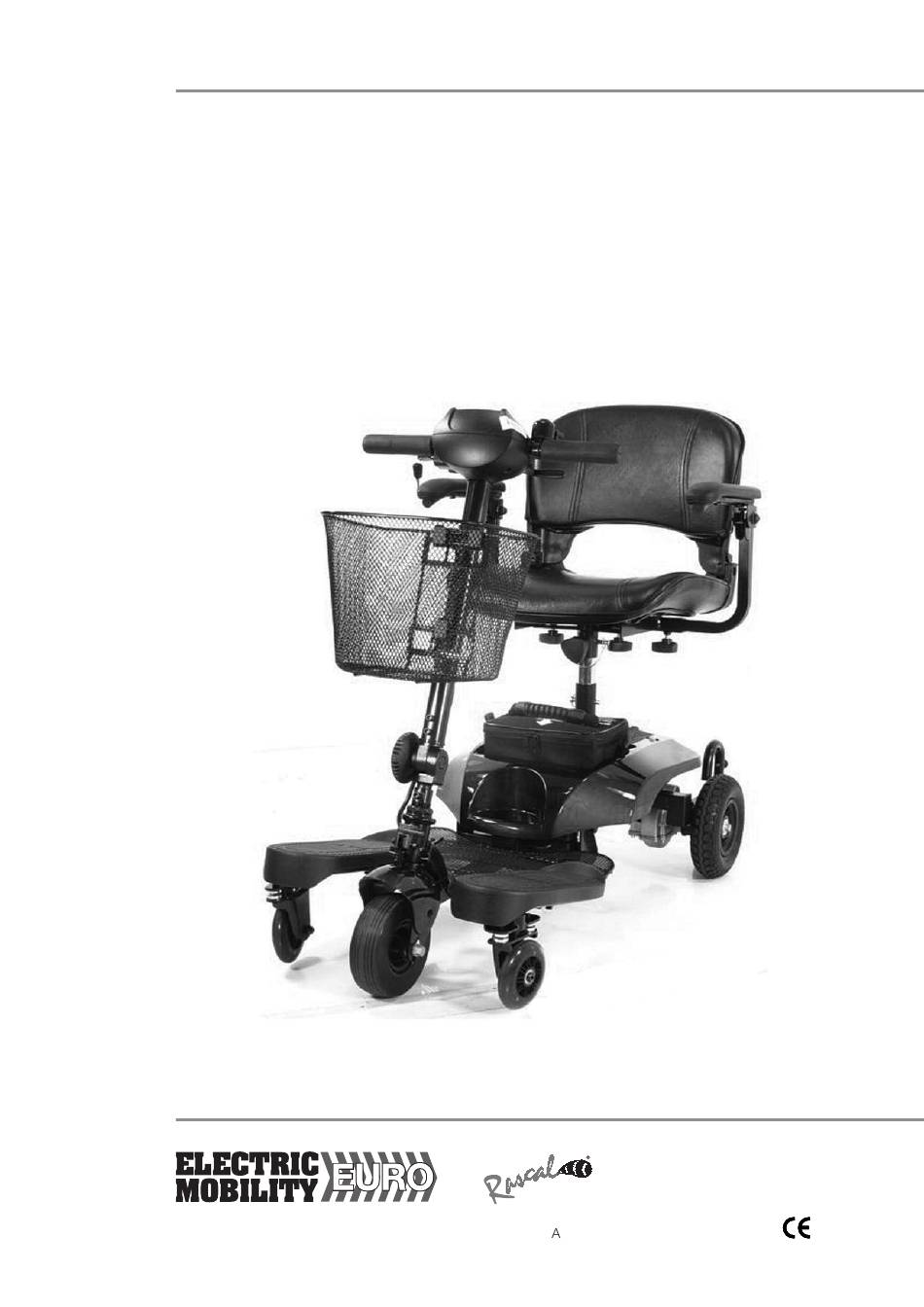

- Page 1 Rascal Micro Balance Scooter Owners Manual & Service Record Rascal Micro Balance Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset T 19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1: 03/10...
- Page 2 Rascal Micro Balance Electric Mobility Euro Ltd offers the Rascal Micro Balance scooter for convenient indoor and outdoor use. This manoeuvrable scooter provides a comfortable ride for people with disabilities. The Micro Balance is designed for quick and easy stowing in a vehicle and reassembly at your destination.
-
Page 3: Table Of Contents
Dealer information Contents Features and layout Safety information Intended use Safety information Driving Component overview Controls - dashboard Controls - driving controls/accelerator Freewheel device Brakes rmrest width adjustment Seat back folding rmrest angle and Tiller adjustment Transferring in and out of the scooter Operation Driving your vehicle Driving your vehicle - hazards... -
Page 4: Dealer Information
Backrest speed control and paddle controls, Fold up and width forward/reverse adjustable armrests Shopping basket Battery pack djustable Solid tyres tiller all round Footrest Freewheel lever Charging point Magnetic Stabiliser Wheels™ Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 5: Safety Information
No liability is assumed with respect to the use of any information contained in this publication. While every precaution has been taken in the preparation of this publication Electric Mobility Euro Ltd. assumes no responsibility for errors or omissions nor is any liability assumed for damages resulting from the use of information contained in this publication. -
Page 6: Safety Information
Warning ! Battery Charge Level. Before driving off, always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey. Rascal Micro Balance Scooter Owner’s Manual & Service Record... - Page 7 Warning ! Seats in Vehicles. This scooter is not suitable for use as a seat for an occupant when in a motor vehicle. Warning ! Stabiliser Wheels. Your Rascal Micro Balance has two small stabilising wheels; you should avoid using your scooter in situations where the stabilising wheels contact the ground or obstacles when...
-
Page 8: Component Overview
Do not adjust the speed when the vehicle is moving, but reset it when you are stationary. If you become alarmed at your speed release the forward/reverse paddles and the scooter will slow down immediately. Bell: ctuate the bell lever and the bell will sound. Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 9: Controls - Driving Controls/Accelerator
Paddle Speed Controller: This is operated by using both hands on the control paddles. The left hand paddle controls reverse speed and the right hand paddle controls forward speed – both to a maximum as pre-set by the rotary speed controller in (3) above. s the paddle is pushed away from the user towards the scooter dashboard, the scooter will steadily increase in speed;... -
Page 10: Freewheel Device
Slide the armrests in or out to suit, and tighten up the thumbwheel bolts, making sure that the armrests are equidistant from the centre of the seat and secure. Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 11: Seat Back Folding
rmrest ngle djustment The armrest angle can be adjusted by flipping up the armrest, and loosening the nut near the pivot point. Then turn the armrest adjustment screw clockwise to lower the end of the armrest or anticlockwise to raise it. -
Page 12: Transferring In And Out Of The Scooter
Suitable clothes should always be worn. high visibility jacket should be considered if you are in poor visibility. Remember not to use the scooter in poor light or darkness. Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 13: Driving Your Vehicle
Driving Your Vehicle Read this before driving your scooter Warning! Whether or not this is your first mobility vehicle, please read these guidelines as all vehicles differ. Failure to do this may cause damage to you, a third party or the vehicle. Before you set out, do check the weather forecast. -
Page 14: Driving Your Vehicle - Hazards
It’s sensitive electronics could malfunction if they get wet or damp. Tyres: Your vehicle is fitted with solid tyres that will not puncture. Should they become damaged they should be replaced by your dealer. Do not attempt to replace them yourself. Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 15: Transporting Your Scooter
Transporting Your Scooter Warning! Dismantling the scooter involves lifting and handling heavy parts. Warning! Pinching or Crushing. Be careful to avoid being pinched or having your hands crushed when lifting or handling parts. Wear gloves whenever possible. Special attention should be paid when raising and lowering armrests, splitting the front and rear parts of the chassis or rotating/handling the front wheels when dismantling or during re-assembly for transportation in a car or similar. -
Page 16: Ssembling Your Scooter
• Raise the seat onto the seat post making sure that it locates properly. -test this by trying to turn the seat -If the seat turns it is not correctly located. (fig.15) • Tighten the seat securing thumbwheel. (fig.16) Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 17: Battery Charging
• Insert the key, switch on and ensure that the battery level indicator is showing green. • Check that the freewheel lever is in the “drive” position /mode and not in the “freewheel”position. • Test the operation of the paddles, speed control and on off switch before using the scooter to go anywhere. -
Page 18: Charging Your Batteries - Further Information
• Do not charge the battery pack in the open – it may rain and the battery charger is not waterproof / suitable for outdoor conditions. Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 19: User Maintenance
• Keep the battery pack in a well-ventilated area and away from any naked flame. • Do not part-charge the battery pack. llow the charger to complete its cycle. Notice Return your unserviceable battery pack to your supplier or ensure it is disposed of in accordance with the environmental regulations applicable at the time. -
Page 20: Servicing & Maintenance
Does the vehicle perform as well as it did when it was new ? • re there noises or rattles that were not there before ? • re there any signs of damage, corrosion or cracking ? • Is the battery bag/unit undamaged ? Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 21: Engineer's Checklist
Engineer’s Checklist for Scooters Obtain all comments from the customer on the condition and serviceability of the Scooter and then complete an Initial diagnostic road test. Record all defects to be corrected. Now check, test and complete the following: • Wheel bearings for wear and lubricate •... -
Page 22: Troubleshooting Guide
Remember correct information will get the problem fixed quicker and save you money. Phone the dealer and explain exactly what the problem is, recounting as much detail as possible including the indicated faults. Rascal Micro Balance Scooter Owner’s Manual & Service Record... -
Page 23: Frequently Asked Questions
Frequently sked Questions I want to transport my scooter in a car. There are various techniques. The Micro Balance is designed to break down into very manageable units. Make sure your dealer has demonstrated the easiest way of loading your scooter into your car. See transporting your scooter. an I fit weatherproofing such as a canopy ? No, the Micro Balance Scooters are too small to have canopies as they can adversely affect stability and handling. -
Page 24: Dditional Information
Keep all packaging well away from children. They could be harmed. dditional Information Owners Manual: Replacement copies are available from: Electric Mobility Euro Ltd. Canal Way, Ilminster, Somerset, T 19 9DL Telephone: 01460 258100. If you are visually impaired, please contact the Company to discuss your requirements. -
Page 25: Technical Specification
Technical Specification - Rascal Micro Balance Scooter type Class Class , B or C Class B Department of Transport Class Class 1 2 or 3 Class 2 Overall dimensions fully assembled length x width x height mm (in) 980 (38.6) x 520 (20.5) x 880 (34.6) including tiller control Dimensions seat folded &... -
Page 26: Guarantee & Warranty
Mobility Euro Limited. ny description, specifications, samples, models, bulletins or similar materials used in connection with the sales of Electric Mobility Euro Limited products are for the sole purpose of identifying the equipment and are not to be construed as expressed warranties. This limited warranty applies only to the original purchaser of the equipment and is not transferable. -
Page 27: Brochure Request / Warranty Card
Postage will be paid by: Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, T 19 9Z Dealer Information - Warranty Card This section is to be filled out by the Dealer and sent to Electric Mobility Euro Ltd. - Page 28 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, T 19 9Z Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, T 19 9Z...
-
Page 29: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... -
Page 30: Notes
Notes Rascal Micro Balance Scooter Owner’s Manual & Service Record... - Page 31 Notes...
- Page 32 Rascal Micro Balance Scooter Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset T 19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 03/10...
