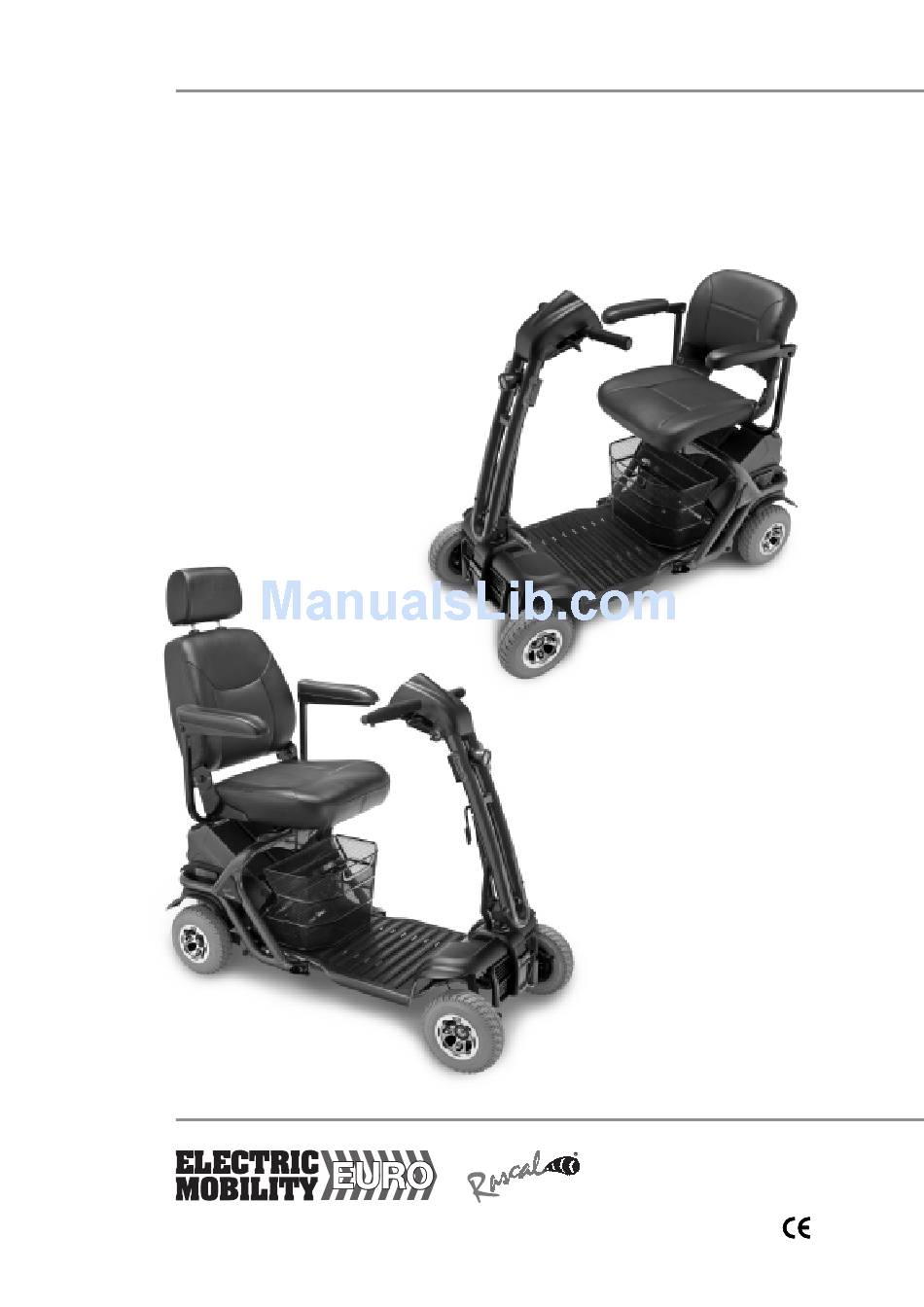

- Page 1 Liteway 6 / 8 Owners Manual & Service Record Liteway 6 Liteway 8 Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 2: 03/08...
- Page 2 Electric Mobility Euro Ltd has designed these powerful, durable and lightweight scooters for frequent outdoor use. Despite their range and capability, they can be easily and quickly dismantled for transporting in the boot of a car. So long as your scooter is maintained and operated in accordance with this manual it should last for many years, and provide you with freedom and independence.
-
Page 3: Table Of Contents
Scooter diagnostic functions Additional safety information Frequently asked questions Engineers checklist Servicing & maintenance Guarantee & Warranty Technical information regarding EMI Technical specification - Liteway 6 Technical specification - Liteway 8 Brochure request Warranty Card - dealer information Service log... -
Page 4: Dealer Information
Electric Mobility Euro Limited Canal Way, Ilminster, Somerset TA19 9DL Company Registration in England No. 2419231 Features and Layout Photo shows Liteway 8 model scooter. The Liteway 6 is similar – see specification for differences. Delta control handlebar and handbrake Front headlight and... -
Page 5: Safety Information
2 inches – see manual for further information. The Liteway 6 & 8 scooters have small wheels to enable easy transportation; they should not be used on very uneven surfaces or slippery grassy areas. -
Page 6: Safety Information - Continued
Warning ! Sitting for long periods may increase the chance of thromboses or pressure sores. Users prone to such conditions are advised to take medical advice. Warning ! The Liteway 6 & 8 model scooters have been designed and tested for drivers up to 21 stone or 300 lbs or 136kgs. This weight should never be exceeded. -
Page 7: Controls - Dashboard
Controls - Dashboard Before driving your vehicle it is important to familiarise yourself with the controls. Do not attempt to drive the vehicle before reading the rest of this Handbook. Dashboard Description Hazard Warning Switch: On the top left dashboard is a rocker switch marked with a triangular sign. -
Page 8: Controls - Driving Description
Pull the lever UP to the upper position. This is the normal operating position. The brakes are enabled, and the vehicle can only operate with the lever in this position Liteway 6 & 8 Scooter Owner’s Manual & Service Record... -
Page 9: Brakes
Release the lever and the seat will lock automatically. Swivel seat is standard on Liteway 8, optional extra on Liteway 6. Warning! Do not use this device if the vehicle is on a slope. Always check the seat is locked in the... -
Page 10: Tiller Adjustment / Folding
Press the release lever and move the handlebars into the desired driving position. Once this is achieved release the lever and the handlebars will hold firm in this position. Before driving, always check that the tiller is firm and does not move. Liteway 6 & 8 Scooter Owner’s Manual & Service Record... -
Page 11: Driving The Vehicle
Driving the Vehicle Warning! Read this before driving the vehicle! Whether or not this is your first mobility vehicle, please read these guidelines as all vehicles differ. Failure to do this may cause damage to you, a third party or the vehicle. 1. -
Page 12: Driving The Vehicle - Hazards
Repair of tyres or wheels should be by your local dealer. If you are particularly concerned about punctures consult you local dealer for advice on puncture proofing products. Liteway 6 & 8 Scooter Owner’s Manual & Service Record... -
Page 13: Transporting Your Scooter - Dismantling
When the tiller is folded down on the Liteway 8, the tension on the brake cables lock the front wheels. Do not pull the front chassis assembly along the ground as it will wear the tyres. This does not apply to the Liteway 6. Transporting your Scooter To transport your scooter you may need to dismantle it. -
Page 14: Transporting Your Scooter - Reassembly
Tiller adjustment. Adjust tiller back into a comfortable position for driving. Finally check the scooter is not damaged and it is properly assembled. You are now ready to drive the scooter away. Liteway 6 & 8 Scooter Owner’s Manual & Service Record... -
Page 15: Battery Charging
When charging batteries NEVER connect or disconnect the charger while it is still connected to the mains. Charging Point (on rear chassis) Liteway 6 Charger Liteway 8 Charger The charging socket is located on the side of the battery box. Remove the protective cover and push in the round silver plug. -
Page 16: Battery Charging Stations
Before charging always fit the full set of batteries. 1. Before installing the batteries, check the mains switch is off. 2. Install a full set of batteries e.g. 2 for the Liteway 6 and 3 for the Liteway 8 Charging Station. -
Page 17: User Maintenance
User Maintenance It is important for safety that you carry out the following checks before use. Visually check the machine for damage. Visually check the tyres for damage and check if they need inflating. Check the steering moves freely. Check that the tiller is firm when in use. Check the front chassis is securely attached to the rear chassis. -
Page 18: Scooter Diagnostic Functions
Tell them about the flash code; this will help the engineer to identify the problem before he calls to fix it. Your dealer is there to help you. Liteway 6 & 8 Scooter Owner’s Manual & Service Record... -
Page 19: Additional Safety Information
Additional Information Owners Manual: Replacement copies are available from: Electric Mobility Euro Ltd. Canal Way, Ilminster, Somerset, TA19 9DL Telephone: 01460 258100 Each vehicle comes with a copy of the BHTA Highway Code. Please make sure you read it. Telephone BHTA on 02077 022 141 for a new copy. -
Page 20: Frequently Asked Questions
Care can prolong the life of the batteries but remember that, in time, all batteries will fail to perform to specification. What range can I expect ? Range. The generally expected range is up to 14 miles on the Liteway 6 and 24 miles on the Liteway 8. However, range can be affected by many things such as: •... -
Page 21: Engineers Checklist
Engineer’s Checklist for Liteway 6 & 8 Models Obtain all comments from the customer on the condition and serviceability of the scooter and then complete an Initial diagnostic road test. Record all defects to be corrected. Now check, test and complete the following: •... -
Page 22: Guarantee & Warranty
If a defective part appears within the stated limited warranty period and the purchaser has given Electric Mobility Euro Ltd or its dealer immediate notice, the defective part will be repaired or at the option of Electric Mobility Euro Ltd, replaced with an equal or superior part. -
Page 23: Technical Specification - Liteway 6
Technical Specification - Liteway 6 Wheelchair type Class Class A, B or C Class B with turning restrictions Department of Transport Class Class 1 2 or 3 Class 2 with turning restrictions Overall dimensions fully assembled length x width x height mm (in) -
Page 24: Technical Specification - Liteway 8
The maximum climbing ability facing upwards degrees of slope 8˚ Ground clearance mm (in) 80 (3.2) Maximum obstacle climbing ability mm (in) 50 (2) Maximum safe descendable kerb height mm (in) 50 (2) Liteway 6 & 8 Scooter Owner’s Manual & Service Record... -
Page 25: Brochure Request
Postage will be paid by: Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Dealer Information - Warranty Card This section is to be filled out by the Dealer and sent to Electric Mobility Euro Ltd. Dealer: Product Description: Serial No.:... - Page 26 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 27: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 28 Liteway 6 / 8 Scooters Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 2: 03/08...
