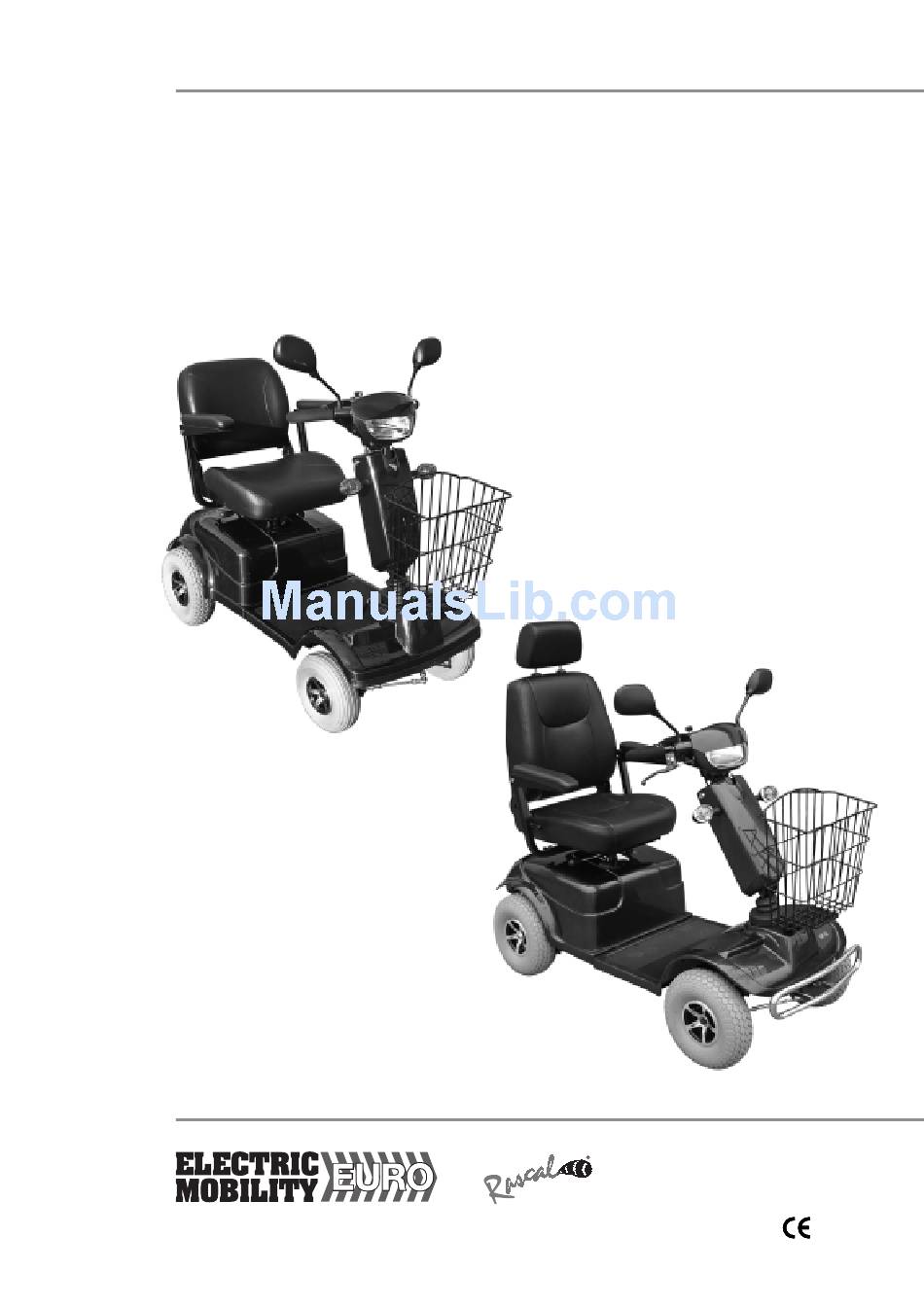

- Page 1 Rascal 309 / 329LE Scooter Owners Manual & Service Record Rascal 309 Rascal 329LE Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1: 06/08...
- Page 2 329LE Electric Mobility Euro Ltd has designed these powerful, durable long range, road-capable scooters for comfort during outdoor use. So long as they are maintained and operated in accordance with this manual they should last for many years, and provide you with freedom and independence. Please read this manual thoroughly before using your scooter.
-
Page 3: Table Of Contents
Dealer information Contents Features and layout Safety information Intended use Safety Information Controls - Dashboard Controls - Driving Controls & Accelerator Freewheel Device Battery Cut-Out Brakes Armrest adjustment Swivel seat Seat back adjustment Seat position adjustment Tiller folding Driving the vehicle Driving the vehicle - hazards Transporting your scooter Assembling your scooter... -
Page 4: Dealer Information

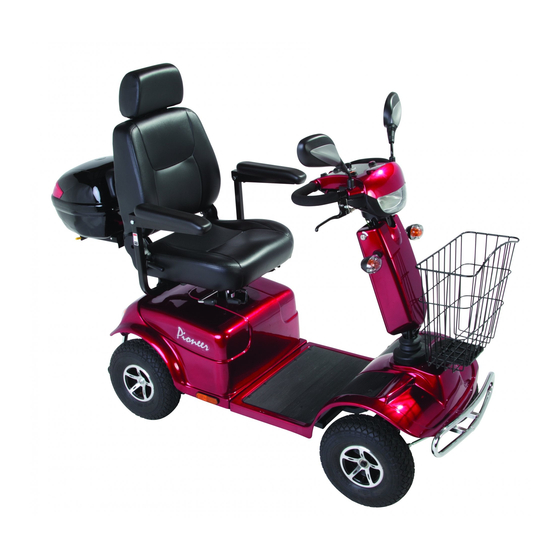

Telephone: Email: For product information see serial number plate on the seat post under the seat. Manufacturer Electric Mobility Euro Limited Canal Way, Ilminster, Somerset TA19 9DL Company Registration in England No. 2419231 Features and Layout The photo shows the Model 329 LE model scooter. The Model 309 is similar but has a slightly shorter chassis smaller wheels and is limited to 6 mph. -
Page 5: Safety Information
Safety Information Read this manual thoroughly before driving or operating the vehicle. This handbook is applicable for all Rascal 309 and 329LE scooters. If you have any doubt about the content of this manual phone your dealer to resolve the problem. Please read this manual, and ensure your scooter is serviced regularly. -
Page 6: Safety Information
Safety Information General Warnings Warning ! The operation of scooters can endanger the life of the driver or third parties. Any driver should always be fully capable of operating this vehicle safely. Warning ! Sitting for long periods may increase the chance of thromboses or pressure sores. Users prone to such conditions are advised to take medical advice. -
Page 7: Controls - Dashboard
Warning ! Stopping If the scooter stops suddenly when turning, the scooter might topple. Try not to brake when turning. Warning ! Leaning Over Do not lean sideways, as this could cause the scooter to topple. Warning ! Escalators Never drive this scooter onto an escalator as this could cause toppling and severe injury. Warning ! Roads Cross roads at designated places where access and exit is ramped. -
Page 8: Controls - Driving Controls/Accelerator
Rotary Speed Control: This controls the top speed of your scooter. When the knob is turned anticlockwise to the left, the scooter is limited to the slowest speed, marked by a tortoise. As the knob is turned to the right the speed will increase to a maximum, marked by a hare. -
Page 9: Brakes
Brakes There are 3 braking systems. The first works with the finger controls. When the finger control is released the scooter will automatically brake and bring the scooter smartly to a stop. When the scooter stops an automatic brake will engage. This will stop the vehicle rolling forward or backward. When you start this brake will automatically disengage. -
Page 10: Seat Back Adjustment
Seat Back Adjustment By operating the lever on the right hand side at the base of the seat back, the seat back folds down. Be careful, as the spring is quite strong, so hold the back and ease it down into the horizontal position rather than letting it go. The 309 model has a standard seat that will fold forward, the 329LE has a Captain’s Seat with spring lever. -
Page 11: Driving The Vehicle
Driving the Vehicle Warning! Read this before driving the vehicle! Whether or not this is your first mobility vehicle, please read these guidelines as all vehicles differ. Failure to do this may cause damage to you, a third party or the vehicle. Before you set out, do check the weather forecast. -
Page 12: Transporting Your Scooter
Kerbs and Obstacles: Try to avoid kerbs and obstacles. Never ride up or down kerbs or obstructions higher than that in the Technical Specification Sheet. Always tackle obstacles head on. Always try to avoid crossing a slope. If you have to cross a slope, take great care to avoid tipping. Never make sharp turns on slopes. Note that the anti-tip rollers at the rear of the scooter may contact the kerb as you descend;... -
Page 13: Assembling Your Scooter
To transport your scooter you may need to remove the seat lower and the tiller in order to reduce the overall height. You are advised to wear gloves during this operation . Lift off the front basket. Remove the seat by lifting it off the seat post while lifting the seat lever. A small rotation is sometimes necessary to free the seat. -
Page 14: Battery Charging
Lift the seat and, while lifting the seat lever, insert the seat pin into the seat post on the rear chassis. Ensure it is fully engaged, the seat does not rock or rotate, and the seat lever has engaged so locking the seat in the forward position (see photo). - Page 15 Connection Instructions When you receive your vehicle the batteries are only partially charged – always fully charge them before use preferably over-night. Always fit the full set of batteries before charging and always use an earthed connection. Place your scooter in an area that is dry and well ventilated. Make sure a power point is nearby. Check the vehicle is switched off and the key removed.
-
Page 16: User Maintenance
User Maintenance It is important for safety that you carry out the following checks before use. Visually check the machine for damage. Visually check the tyres for damage. Check the steering moves freely. Check that the Tiller is secure and that the tiller lock is effective. Check that the Seat is located correctly and locked. -
Page 17: Troubleshooting Guide
Troubleshooting Guide This table is a guide to fault finding. The fault may be a simple fix. If you have any doubts phone your dealer. Symptom Solution • Scooter does not move. • Batteries flat - check level. when power is switched on. •... -
Page 18: Frequently Asked Questions
Frequently Asked Questions I want to transport my vehicle in a car. These scooters are not designed to be dismantled. If you need to regularly transport a scooter in a vehicle, then you dealer will advise you on specialist vehicles which are designed to fold and dismantle to make it easier to load them into a car. -
Page 19: Additional Information
Additional Information Owners Manual: Replacement copies are available from: Electric Mobility Euro Ltd. Canal Way, Ilminster, Somerset, TA19 9DL Telephone: 01460 258100. If you are visually impaired, please contact the Company to discuss your requirements. However, you should not drive a vehicle in a public place if you cannot see well enough to ensure your own, and others safety. Each vehicle comes with a copy of the BHTA Highway Code. -
Page 20: Engineers Checklist
Engineer’s Checklist for 309 & 329LE Models Obtain all comments from the customer on the condition and serviceability of the scooter and then complete an Initial diagnostic road test. Record all defects to be corrected. Now check, test and complete the following: •... -
Page 21: Guarantee & Warranty
Mobility Euro Limited. Any description, specifications, samples, models, bulletins or similar materials used in connection with the sales of Electric Mobility Euro Limited products are for the sole purpose of identifying the equipment and are not to be construed as expressed warranties. This limited warranty applies only to the original purchaser of the equipment and is not transferable. -
Page 22: Technical Specification - 309
Technical Specification - Rascal 309 Scooter Wheelchair type Class Class A, B or C Class B Department of Transport Class Class 1 2 or 3 Class 3 Overall dimensions fully assembled length x width x height mm (in) 1430 (56) x 650 (26) x 1020 (40) Dimensions seat removed tiller folded length x width x height mm (in) 1430 (56) x 650 (26) x 730 (29) -
Page 23: Technical Specification - 329Le
Technical Specification - Rascal 329LE Scooter Wheelchair type Class Class A, B or C Class B Department of Transport Class Class 1 2 or 3 Class 3 Overall dimensions fully assembled length x width x height mm (in) 1470 (58) x 645 (25) x 1300 (51) - Page 24 Notes Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
-
Page 25: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 26 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 27: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 28 Rascal 309 / 329LE Scooter Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 06/08...
