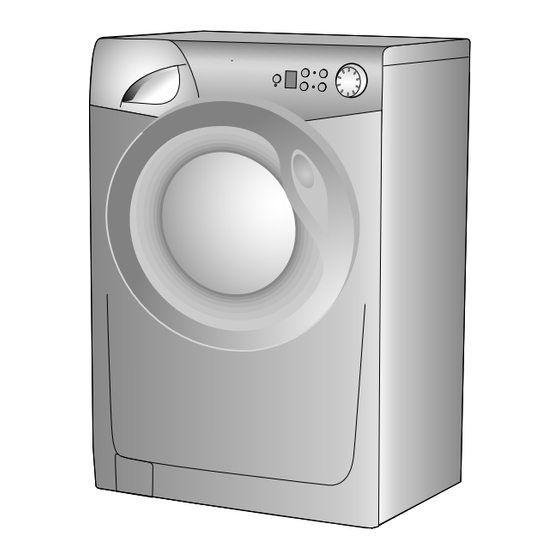

Washing machine
Instructions for use

Advertisement

Table of Contents
loading

Related Manuals for Hoover VisionHD

Summary of Contents for Hoover VisionHD

  • Page 1 Washing machine Instructions for use...

  • Page 2: Introduction

    Introduction Please read these instructions for use carefully and all other information enclosed with the washing machine. Keep all documentation in a safe place for future reference or for any future owners. This appliances is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments;...

  • Page 3: Table Of Contents

    Contents Page Introduction General delivery notes Safety notes Quick start Description of controls Programme Table Programme selector Detergent drawer Detergents, washing aids and amounts to use Useful advice for the user The main wash Cleaning and routine maintenance Investigating malfunctions Technical data Setting up + installation BEFORE SWITCHING ON THE APPLIANCE MAKE SURE...

  • Page 4: General Delivery Notes

    A) Pull out the plug B) Turn off the tap C) Hoover equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person. D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet.

  • Page 5: Quick Start

    M) N.B! If the appliance is installed on a carpeted floor ensure that the ventilation holes on the base of the appliance are not obstructed. N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance.

  • Page 6: Description Of Controls

    Description of controls Fig. 1 RAPID COTTON 90+Pre Spin Cold Speed Wash START/ PAUSE A 59' Sports AA 40 50+Pre Door Security Delay Sensitive Start Care DELICATES SYNTHETICS Door handle "Door Security" indicator light "Start/Pause" button "Cold Wash" button "Sensitive Care" button "Delay Start"...
  • Page 7 Door handle Press the finger-bar inside the door handle to open the door. “DOOR SECURITY” indicator light The “Door Security” indicator light is illuminated when the door is fully closed and the machine is ON. When "Start/Pause" is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.
  • Page 8 The option buttons should be selected before pressing the "Start/Pause" button. “COLD WASH” button By pressing this button it is possible to transform every programme into a cold washing one, without modifying other characteristics (water level, times, rythmes, etc...). Curtains, small carpets, man made delicate fabrics, non coulor fast garments can be safely washed thanks to this new device.
  • Page 9 “DELAY START” button This button allows you to pre-programme the wash cycle to delay the start of the cycle for up to 24 hours. To delay the start use the following procedure: Set the required programme. Press the button once to activate it (h00 appears on the display) and then press it again to set a 1 hour delay (h01 appears on the display);...
  • Page 10 “DIGITAL” Display h m m The display’s indicator system allows you to be constantly informed about the status of the machine: 1) SPIN SPEED Once the programme has been selected, the maximum spin speed allowed for that programme appears on the display. Pressing the spin button will reduce the speed by 100 rpm each time the button is pressed.
  • Page 11 PROGRAMME selector with "OFF" position When the programme selector is turned the display lights up to show the settings for the programme selected. N.B. To switch the machine off, turn the programme selector to the “OFF” position. Press the "Start/Pause" button to start the selected cycle. Once a programme is selected the programme selector remains stationary on the selected programme till cycle ends.

  • Page 12: Programme Table

    TABLE OF PROGRAMMES TEMP. PROGRAMME WEIGHT CHARGE DETERGENT PROGRAM FOR: °C SELECTOR Resistant fabrics Whites with 90+Pre 90° Prewash Cotton, linen Cotton, mixed Fast coloureds 60° resistant Fast coloureds 40° Cotton, mixed Non fast coloureds 30° Mixed fabrics Fast coloureds 50+Pre 50°...
  • Page 13 Please read these notes The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button. Pressing the wash temperature button makes it possible to wash at any temperature below the maximum allowed.

  • Page 14: Programme Selector

    Programme selector For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and lenght of cycle (see table of washing cycle programmes). RESISTANTS FABRICS 90+Pre The Cotton programmes are designed for maximum washing and rinsing efficiency.
  • Page 15 40°C temperature, instead of 60°C. The length of this programme lasts almost the 3 hours. SPORTS Hoover has given sports items their own wash care programme. Sports The washing machine has a unique Sportswear programme. It is specially designed to wash mixed sportswear fabrics that cannot be washed on hotter programmes and is designed to remove the soil and staining created by participation in sports activities.

  • Page 16: Auto Half Load

    DAILY WASH 40°C – FAST 44’ A complete washing cycle (wash, rinse and spin), able to wash in approximately 44 minutes: - a maximum load of 3 kg; - lightly soiled fabrics (cotton and mixed fabrics) We recommend, with this programme, a 30% detergent loading dose (compared to the normal one), in order to avoid detergent waste.

  • Page 17: Detergent Drawer

    Detergent drawer The detergent drawer is split into 3 compartments: - the compartment labelled "1" is for prewash detergent; - the compartment labelled " " is for special additives, fabric softeners, fragrances, starch, brighteners etc; - the compartment labelled "2" is for main wash detergent.

  • Page 18: Detergents, Washing Aids And Amounts To Use

    Detergents, washing aids and amounts to use Choice of detergent General purpose detergents - Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry. - Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil.
  • Page 19 Dosages Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

  • Page 20: Useful Advice For The User

    Useful advice for users Tips on using your domestic appliance in the most environmentally-friendly and economical Do a full load in your washing machine To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the recommended maximum load size.

  • Page 21: The Main Wash

    Main wash Sorting the laundry - It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items. - If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them. - Sort the laundry according to fabric type, degree of soiling and wash temperature: Always follow the wash care advice on the garment label for the most suitable care and treatment of the laundry...

  • Page 22: Selecting The Wash Programme

    The correct way to wash Preparing the laundry A) Select the laundry. Loading the laundry B) Open the porthole. C) Put the laundry in the washing machine. Close the porthole again, ensuring that no items of laundry are obstructing the lock. Putting detergent in machine D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer’s...

  • Page 23: Cleaning And Routine Maintenance

    Cleaning and routine maintenance Do not use alcohol-based scourers and / or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: - Cleaning the drawer compartments. - Cleaning the filter.
  • Page 24 Attention: if the filter needs cleaning while there is washing still in the drum, follow the instructions on the following page to empty the water. This will prevent excessive loss of water via the filter. Cleaning the door glass Regularly clean the door glass with a damp cloth. A build up of soiling and residues from the water may result in water leaking from the door.

  • Page 25: Investigating Malfunctions

    Investigating malfunctions What might be the cause of… Defects you can remedy yourself MALFUNCTION CAUSE REMEDY 1. Does not work on any Plug not in socket. Plug it in. programme Not switched on. Switch on. Power failure. Check. Fuse blown. Check.

  • Page 26: Technical Data

    Note: The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected; - presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.

  • Page 27: Setting Up + Installation

    SETTING UP + INSTALLATION Remove the polystyrene base and place the machine near its permanent position (diagram 1). Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2). Remove the 4 fixing screws marked (A) and remove the 4 spacers marked (B) (diagram 3).

  • Page 28: Water Connection

    Note: we recommend you keep the screws to immobilise the machine for future transit. The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation. Water connection The appliance must be connected to the water mains using new hose-sets.
  • Page 29 WARNING: Do not use this appliance with a cord extension set, multiple connector or electrical portable outlet device due to risk of overload, splashing or ingress of moisture. All Hoover washing machines comply with the safety requirements laid down by the Quality Trademark Institute. ATTENTION:...
  • Page 30 NOTES ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 31 The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
  • Page 32 ® This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
