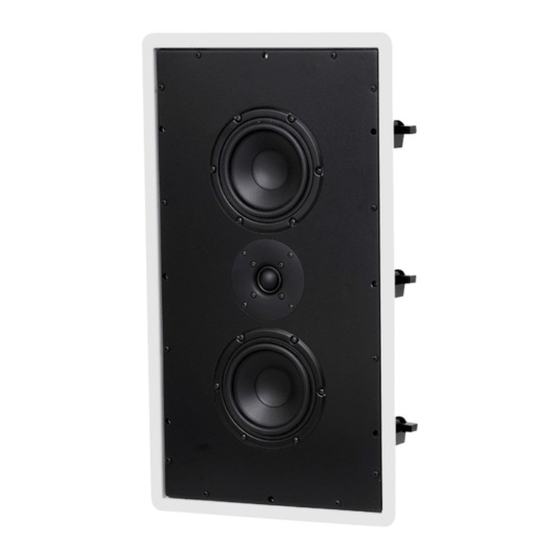

- Page 1 Owner’s Manual IW-K7 IW-J7 IW-LCR7 IW-D7 IW-CR7...
-
Page 2: Specifications
SpeCIfICatIonS IW-CR7 IW-K7 Frequency Response (±3dB) 80 Hz-20 kHz 78 Hz–20 kHz Recommended Amplifier 50–150W 50–125W Nominal Impedance 4 ohms 8 ohms Sensitivity (2V.83v at 1m) 88dB SPL 87dB SPL Tweeter 1” Vifa silk dome, 1” SEAS silk dome, ferrofluid cooling... - Page 3 IW-J7 IW-LCR7 IW-D7 66 Hz–20 kHz 70 Hz-20 kHz 62 Hz-20 kHz 50–150W 50–250W 50–250W 8 ohms 4 ohms 4 ohms 87dB SPL 89dB SPL 90dB SPL 1” SEAS silk dome, 1” SEAS silk dome, 1” SEAS silk dome, ferrofluid cooling ferrofluid cooling ferrofluid cooling -inch (165mm)
- Page 4 The Snell IW loudspeaker enclosure is a thin, but strong, aluminum tub. It is both damped and braced. This largely contains the back radiated sound of the woofer within the enclosure. An added benefit of containing the woofer output is a reduced chance that resonances will be excited in the house walls.
- Page 5 pLaCement of the fRont ChanneL SpeaKeRS A home theatre system includes three loudspeakers placed across the front of the listening room. The distance between the left and right speakers determines the width of the stereo image. If the speakers are placed too close together, the image will be too narrow; too far apart and the blend will suffer, creating a hole in the middle.
- Page 6 pLaCement of the SuRRounD SpeaKeRS There are many opinions about where surround or “rear” speakers should be mounted. The following is based on the findings of the best academics, and on our experience with many installations. These placement recommendations apply to all the IW models. If two surrounds are used in a standard 5.1 configuration (not 7.1 or EX), they are best mounted to the sides of the lis-...
-
Page 7: Installation Instructions
When connecting more than two speakers per amplifier channel, you should use series/parallel wiring. In all cases, make certain that the total impedance does not fall below the amplifier’s rating. If you are not sure, contact your Snell Acoustics dealer. You will need: 1) A utility knife, an electric jigsaw, or other means of cutting a hole in the mounting surface. -
Page 8: Installation
InStaLLatIon For convenient installation, these Snell IW series speaker systems use a dog-leg mounting sys- tem (see illustrations below). This provides a quick and clean install. Furthermore, the dog-legs can be removed if a particular situation requires the speaker to be directly attached to a stud. -
Page 9: Listening Levels And Power Handling
LIStenIng LeVeLS anD poWeR hanDLIng The power recommendation for the system assumes you will operate the amplifier in a way that will not produce distortion. All speakers can be damaged by even a modest amplifier if it is producing distortion. If you hear a gritty noise or other signs of strain, turn down the volume. Prolonged or repeated operation of your speakers with a distorted signal can cause damage that is not covered by the warranty. -
Page 10: Limited Warranty
LImIteD WaRRantY For five years from the date of purchase, Snell Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor. Your responsibilities are to use the product according to the instructions supplied, to provide... - Page 12 2 Chambers Street Binghamton, NY 13903-2699 ©2009 Snell Acoustics. All Rights Reserved. phone: 607-352-2488 Specifications are subject to change without notice. fax: 607-352-2498 Covered by patents issued and/or pending. email: info@snellacoustics.com Part #542-1063 www.snellacoustics.com...
