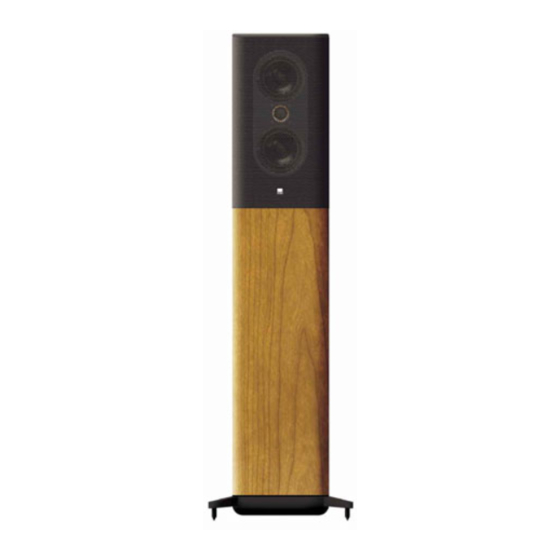

- Page 1 Owner’s Manual IC-B7S IC-B7VH IC-C7S IC-C7VH...
-
Page 2: Specifications
SpeCIfICatIonS IC-B7S IC-B7VH Frequency Response (±3dB) 48 Hz-20 kHz 48 Hz–20 kHz Recommended Amplifier 75–250W 75–250W Nominal Impedance 6 ohms 4 ohms Sensitivity (2.83v at 1m) 89dB SPL 89dB SPL Tweeter 1” SEAS Excel Millenium 1” SEAS Excel Millenium Midrange... - Page 3 IC-C7S IC-C7VH 48 Hz-20 kHz 48 Hz–20 kHz 75–250W 75–250W 4 ohms 4 ohms 89dB SPL 89dB SPL 1” SEAS silk dome 1” SEAS silk dome Dual 4 -inch (114mm) Dual 4 -inch (114mm) SEAS treated paper SEAS treated paper Dual 8-inch (203mm) Dual 8-inch (203mm) Scanspeak polycone...
- Page 4 IntroduCtIon: HIgH end performanCe In a plaIn wrapper The concept behind the Snell IC (In-Cabinet) series models is simple — loudspeakers that deliver performance equivalent to the acclaimed, elegantly-finished Series 7 in-room models, that are housed in cabinets with a “utility” finish, and are mechanically and acoustically designed for easy integration into built-in installations.
- Page 5 Our ears use high frequencies to locate the source of a sound. When the IC-B7S or IC-C7S are used for the front left and right speakers in a system, the orientation of the midrange/ tweeter array significantly effects the width of the stereo image.
- Page 6 plaCement of tHe Surround SpeaKerS There are many opinions about where surround speakers should be mounted. The following is based on the findings of the best academics, and on our experience with many installations. These placement recommendations apply to all the IC models. The illustration below shows the speakers custom-installed in recesses in the wall.
- Page 7 When connecting more than two speakers per amplifier channel, you should use series/parallel wiring. In all cases, amplifier make certain that the total impedance does not fall below the amplifier’s rating. If you are not sure, contact your Snell Acoustics dealer. BI-wIrIng High performance audio systems can benefit from bi-wiring the speakers.
-
Page 8: Control Settings
BI-amplIfyIng To achieve the highest level of performance, the speakers can be bi-amplified. In this type of system two separate amplifiers are used to drive the speakers. One amplifier drives the midrange/tweeter array, while a second drives the bass speakers. As with bi-wiring, the jumper straps must be removed from the connection terminals. - Page 9 lIStenIng leVelS and power HandlIng The power recommendation for the system assumes you will operate the amplifier in a way that will not produce distortion. All speakers can be damaged by even a modest amplifier if it is producing distortion. If you hear a gritty noise or other signs of strain, turn down the volume. Prolonged or repeated operation of your speakers with a distorted signal can cause damage that is not covered by the warranty.
-
Page 10: Limited Warranty
For five years from the date of purchase, Snell Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor. Your responsibilities are to use the product according to the instructions supplied, to provide... - Page 12 2 Chambers Street Binghamton, NY 13903 USA phone: 607-352-2488 ©2010 Snell Acoustics. All Rights Reserved. fax: 607-352-2498 Specifications are subject to change without notice. email: info@snellacoustics.com Covered by patents issued and/or pending. web: www.snellacoustics.com Part #542-1046...
