  • Page 1 Owner’s Manual 650r 680r...

  • Page 2: Specifications

    SPECIFICATIONS Frequency Response (±3dB) Frequency Range (-6dB) Recommended Amplifier Power Nominal Impedance Sensitivity [1 watt (2.83v) at 1m] Tweeter Bass Unit Grille Dimensions Overall Diameter Mounting Hole Diameter Weight/each Finish AMC650r 65Hz–20kHz 55Hz–22kHz 15–85 watts 8 ohms 88dB SPL ⁄ -inch (19mm) ferrofluid-cooled titanium dome tweeter...

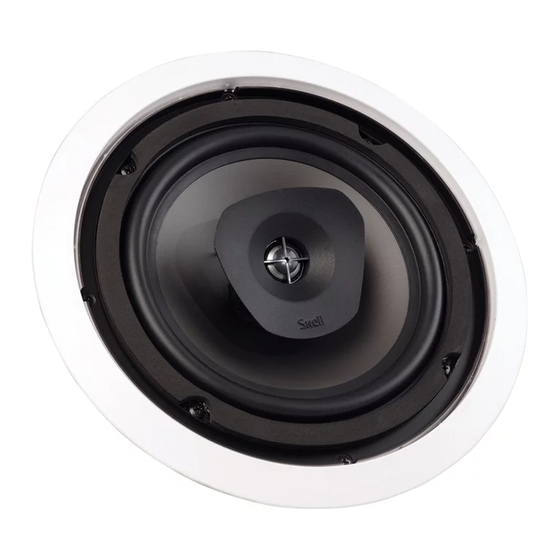

  • Page 3: Product Description

    Be sure the area behind the speaker mounting location is large enough - 0.5 cu. ft. or more. Avoid installing the speaker near the ends of the chamber behind the mounting that is formed by 2x4 framing.

  • Page 4: Stereo Image

    If the AMC650r or AMC680r is used as a wall-mounted center channel speaker, aim the tweeter up or down as appropriate. If its position is above normal seated ear level, orient the system with the waveguide angling downward.

  • Page 5: Painting The Speakers

    If you intend to paint the speakers, it’s best to do so before you install them. Typically, a primer coat is not necessary. 1. Remove the speaker grille. Carefully pry on one edge with an awl or small screwdriver. If you choose to paint the metal grille, do so after detaching it from the speaker.

  • Page 6: Installation

    5. The insulation of the wire will have a stripe or ribs on one side. Use this marking to ensure the + (red) terminal of the speaker is connected to the + terminal of the amplifier and the – terminal of the speaker is connected to the – terminal of the amplifier.

  • Page 7: Listening Levels And Power Handling

    LIMITED WARRANTY For five years from the date of purchase, Snell Acoustics will repair for the original owner any defect in materials or workmanship that occurs in normal use of the speaker system, without charge for parts and labor.
  • Page 8 ©2005 Snell Acoustics. All Rights Reserved. Specifications are subject to change without notice. Covered by patents issued and/or pending. Part #542-1027 300 Jubilee Drive, P0B 3717 Peabody, MA 01961-3717 phone: 978-538-6262 fax: 978-538-6266 email: info@snellacoustics.com www.snellacoustics.com...
