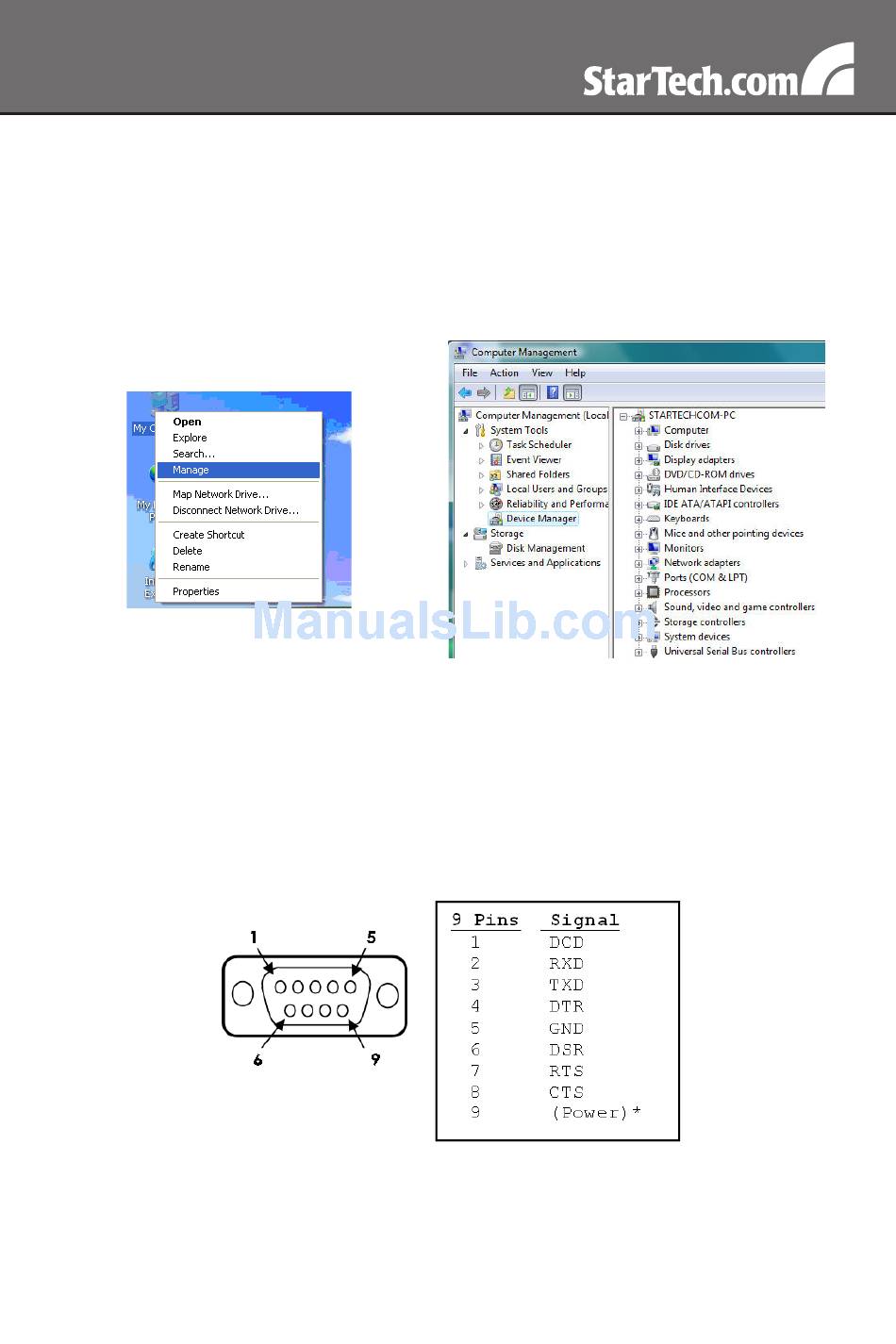

Verifying Installation
Windows 2000/XP/Vista/7
From the main desktop, right-click on "My Computer" ("Computer"
in Vista/7), then select Manage. In the new Computer Management
window, select Device Manager from the left window panel.
Double-click on the Ports (COM & LPT) option. The appropriate
number of additional COM ports should be visible. The port(s) are
ready to connect to new devices.
Pinout
*
Pin-9 supports either 5V, 12V or RI (no power) modes. Set the
internal jumper on the card appropriately for your serial device.
5
