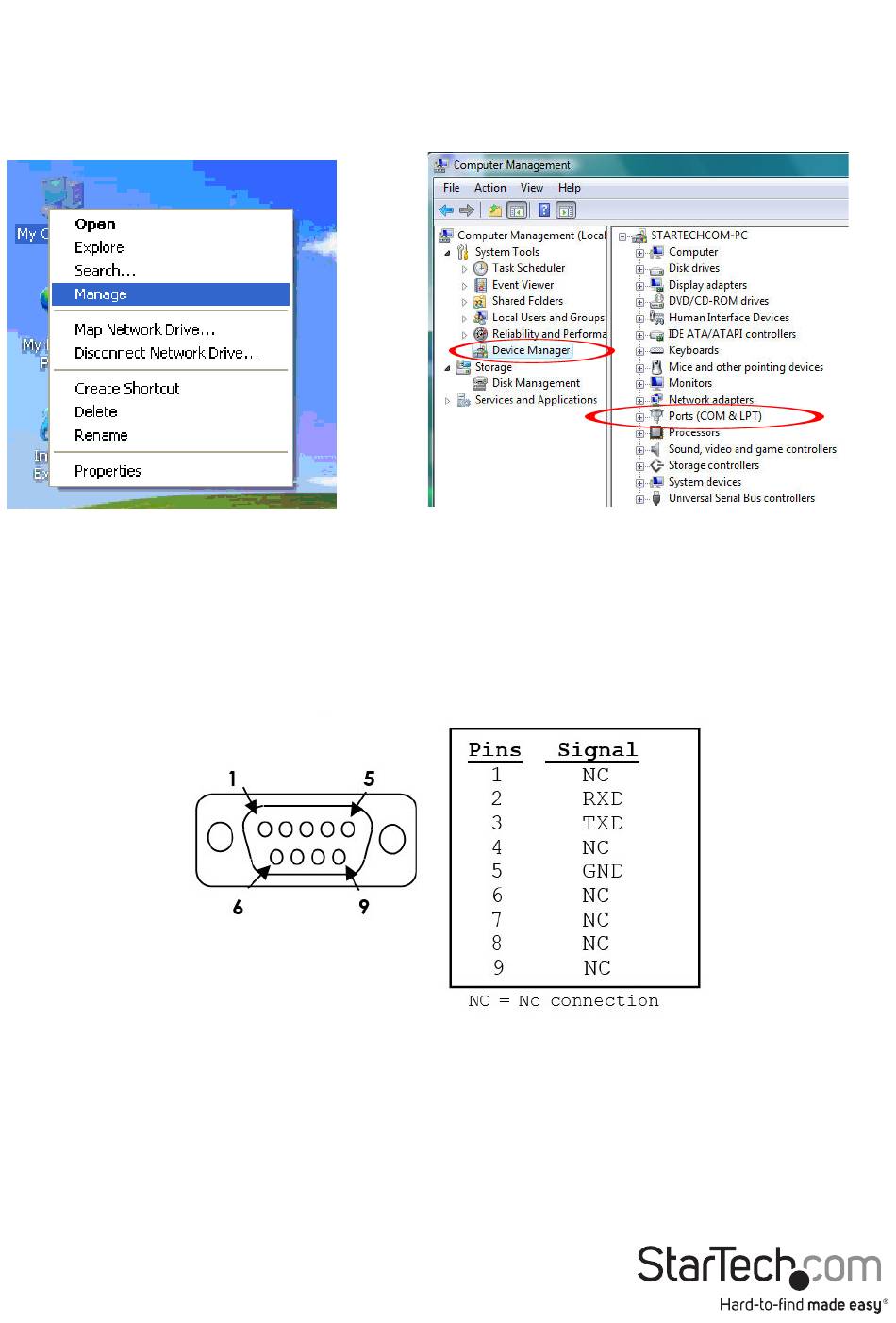

Verifying Installation
Windows 2000/XP/Vista/7
From the main desktop, right-click on "My Computer" ("Computer" in Vista/7), then
select "Manage". In the Computer Management window, select "Device Manager" from
the left window panel.
Double-click on the "Ports (COM & LPT)" option. Additional COM port(s) should be
visible. The port is automatically sequentially numbered by Windows, but can be
changed through the "Properties" by right-clicking on the port.
Pinout
5
