Summary of Contents for StarTech.com PEXUSB3S11
Page 1

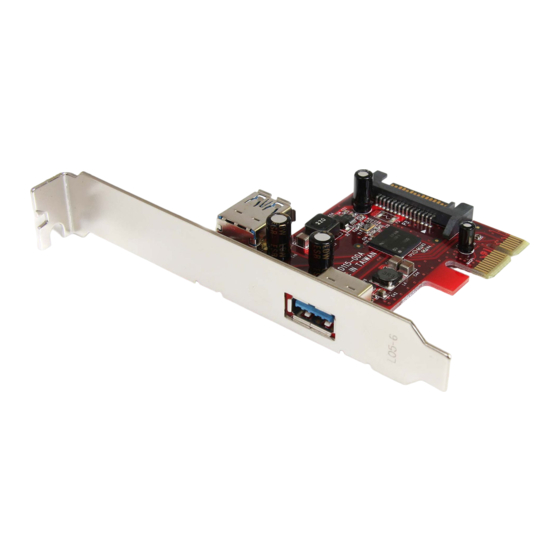

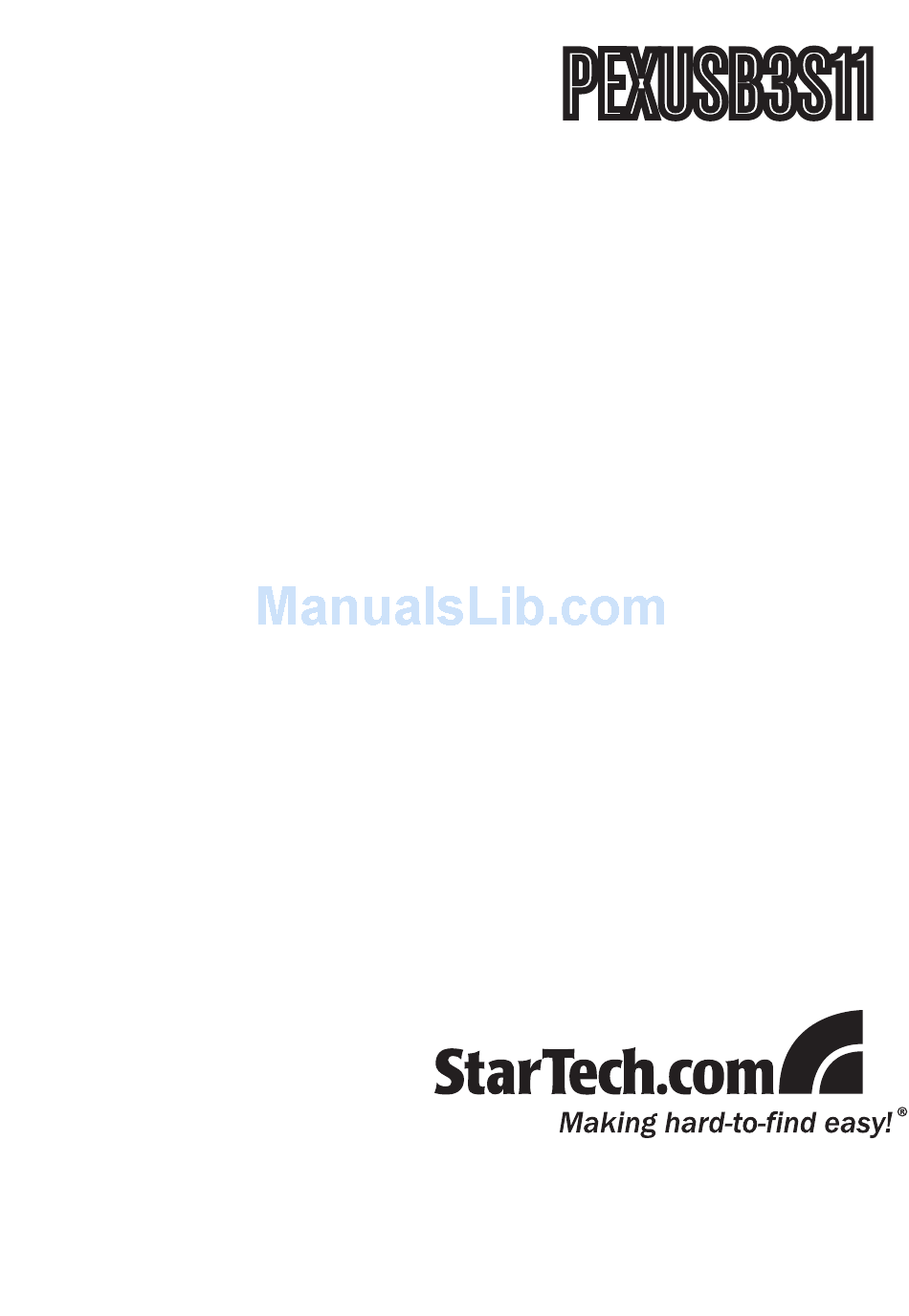

PEXUSB3S11 Instruction Manual PCI Express USB 3.0 Adapter Card 1-Port Internal, 1-Port External PCI Express to SuperSpeed USB 3.0 Adapter Card...
Page 2
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.
Introduction This StarTech.com SuperSpeed USB 3.0 adapter card enables you to access your data and transfer files much faster than USB 2.0! The new USB 3.0 standard supports transfer rates of up to 5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices.
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds.
Page 6
Verifying Installation Windows XP/Server 2003/Vista/7 From the main desktop, right-click on “My Computer” (“Computer” in Vista/7), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. In the Device Manager, under the Universal Serial Bus Controllers category, you should see the new entries for the USB controller card.
Specifications PCI Express 2.0 Bus Interface (x1 slot connector) Chipset ID NEC uPD720200 1 x USB 3.0 type A (internal) Connectors 1 x USB 3.0 type A (external) 1 x 15-pin SATA Power Form Factor Full/Low Profile Support Standards USB 3.0 revision 1.0 Maximum Data Transfer Rate USB 3.0: 5Gbps Operating Temperature...
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
