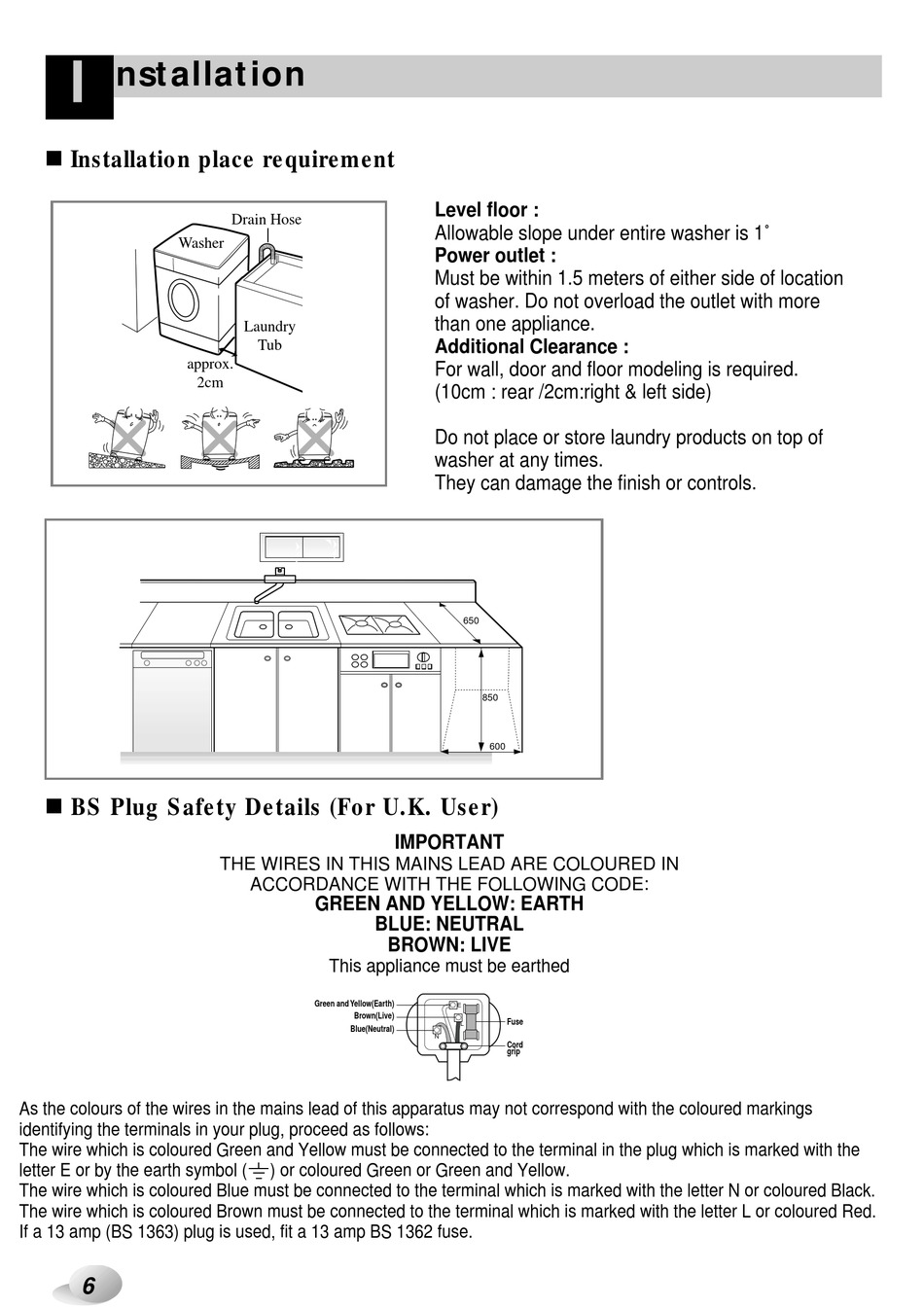

" Installation place requirement

Washer
approx.
" BS Plug Safety Details (For U.K. User)
As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the
letter E or by the earth symbol (
The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black.
The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red.
If a 13 amp (BS 1363) plug is used, fit a 13 amp BS 1362 fuse.
6
Drain Hose
Laundry
Tub
2cm
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
GREEN AND YELLOW: EARTH
This appliance must be earthed
Green and Yellow(Earth)
Brown(Live)
Blue(Neutral)
) or coloured Green or Green and Yellow.
Level floor :
Allowable slope under entire washer is 1˚
Power outlet :
Must be within 1.5 meters of either side of location
of washer. Do not overload the outlet with more
than one appliance.
Additional Clearance :
For wall, door and floor modeling is required.
(10cm : rear /2cm:right & left side)
Do not place or store laundry products on top of
washer at any times.
They can damage the finish or controls.
650
850
600
IMPORTANT
BLUE: NEUTRAL
BROWN: LIVE
E
Fuse
L
N
Cord
grip
