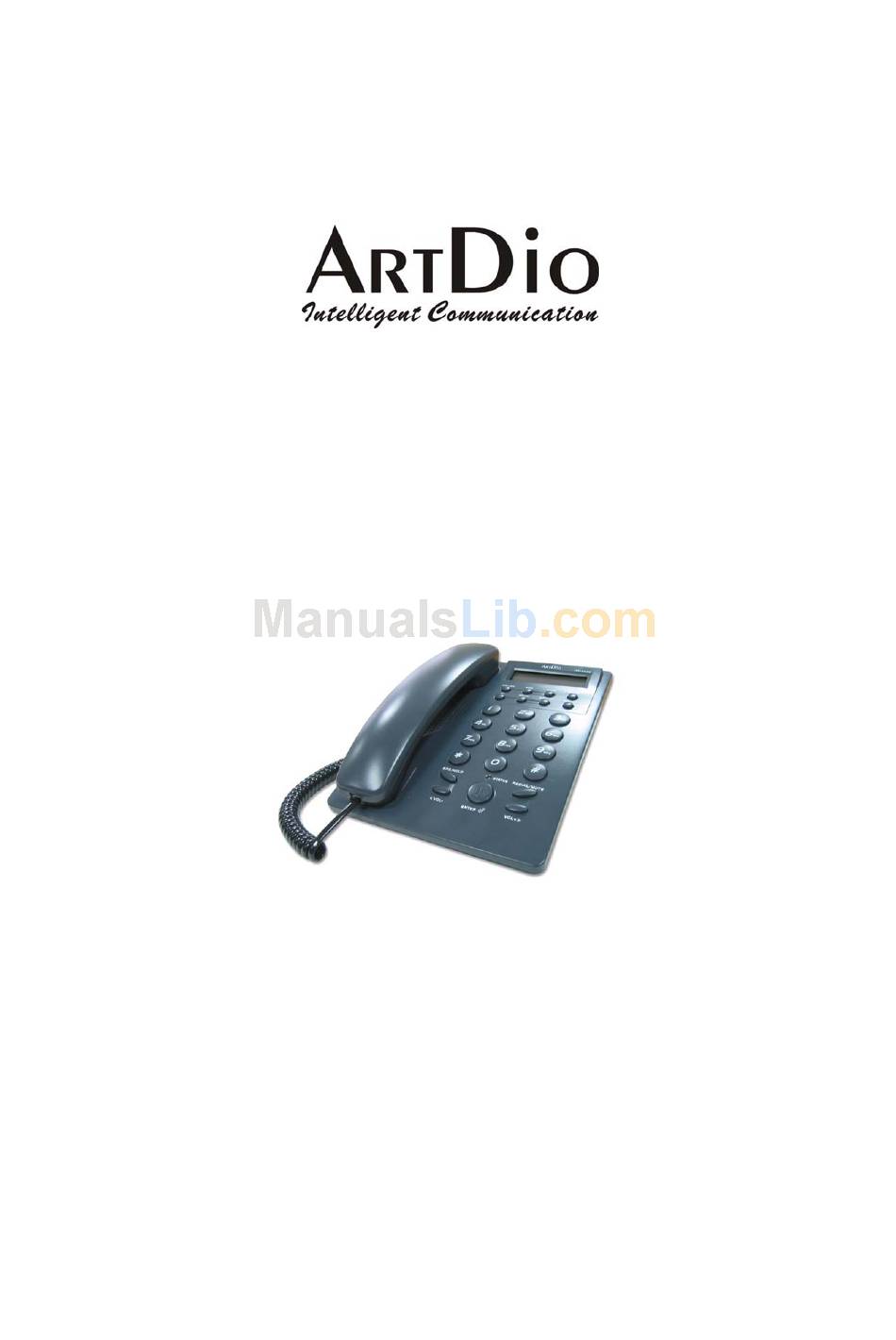

  • Page 1: User Manual

    User Manual IPF-2000 Ver.1.0 www.artdioinc.com ArtDio Company Inc.

  • Page 2: Safety Instructions

    4. The product should be connected to a power supply of the type described in the operating instructions or as marked on the product. 5. To avoid hazard to children, dispose of the product’s plastic packaging carefully. 6. Please read all the instructions before using this product. Safety Instructions IPF-2000 User Manual...

  • Page 3: Table Of Contents

    PRODUCT SPECIFICATION ...5 PACKAGE CONTENTS ...6 IPF-2000 FUNCTION ILLUSTRATION ...6 3.1. Front Panel...6 3.2. Rear and Back Panel ...7 3.3. Function Keys Introduction...7 HARDWARE INSTALLATION...8 KEYPAD CONFIGURATION...8 5.1. Network Settings...9 5.1.1. DHCP Settings...9 5.1.2. Static IP Setting...9 5.1.3. PPPoE Setting...10 5.2.
  • Page 4 6.6. Update ...21 6.7. Phone Book ...21 REGISTRATION MESSAGE...22 USING IPF-2000 ...22 8.1. To make a phone call ...22 8.2. Review call record ...22 8.3. Speed Dial...22 8.4. Mute...22 8.5. Hold ...22 APPENDIX ...23 9.1. Programming Keys...23 9.2. Frequently Ask Questions ...23...

  • Page 5: Product Specification

    Relative Humidity：10 – 95% Non-Condensing CE, FCC Headset Connection Interface、Firmware Upgrade NAT Pass-through (SIP with STUN) Speaker phone 、 Hold 、 Mute 、Redial 、 Speed Dial 、 Received Calls、Missed Calls、Dialed Calls、Call Status、Volume Adjustment、Voice Response、Web Configuration、LED indicator, etc.. IPF-2000 User Manual...

  • Page 6: Package Contents

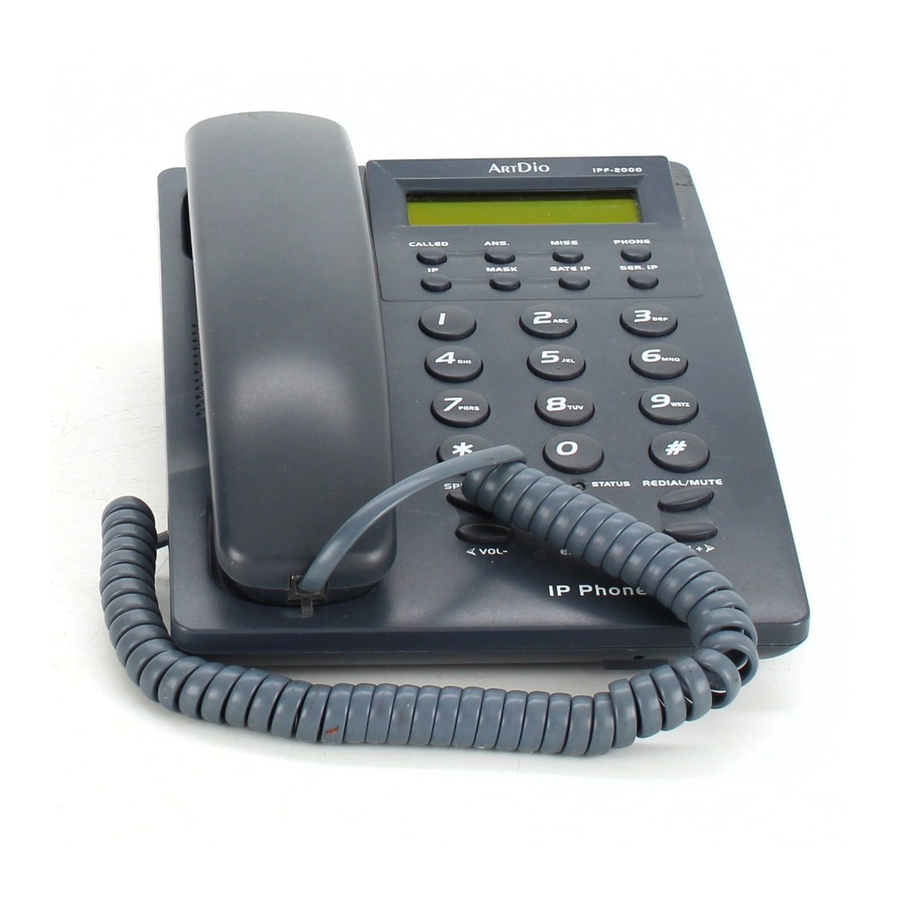

    IPF-2000 User Manual 2. Package Contents The IPF-2000 Series VoIP phone package contains: 1. One IPF-2000 VoIP phone 2. One power adaptor 3. One RJ-45 Ethernet cable 4. Quick Installation Guide 5. Installation CD 3. IPF-2000 Function Illustration 3.1. Front Panel...

  • Page 7: Rear And Back Panel

    With handset hung, press this key to get local IP address of the phone. Mask With handset hung, press this key to get the subnet mask of the IPF-2000. GATE IP With handset hung, press this key to get the gateway IP address in LAN.

  • Page 8: Hardware Installation

    ADSL Modem, or other broadband device. After installing the IPF-2000, please follow the configuration instructions in the following chapters. 5. Keypad Configuration IPF-2000 is able to be configured using keypad. Below table illustrates Function keys for configuration: Keys SPD/HOLD REDIAL/MUTE VOL－...

  • Page 9: Network Settings

    Figure below shows the options of the Main Menu: 5.1. Network Settings The default setting for IPF-2000 is DHCP . Therefore, IPF-2000 will be able to connect to the internet under any DHCP environment. If the network environment is either PPPoE or Static IP, please change the networking setting of IPF-2000 to its corresponding network environment.

  • Page 10: Pppoe Setting

    (XXX*XXX*XXX*XXX) and the press ENTER. 5.1.3. PPPoE Setting Connect the power adaptor of IPF-2000 and connect the PPPoE network to the IPF-2000 to its RJ-45 port. Press1234# (Hold the “#” key) → [Password] → Press 1234 and then press ENTER→ Network Settings.

  • Page 11: Audio Settings

    1. Press1234#( Hold the “#” key)→ [Password]→ Press 1234 and then press ENTER→ Network Settings Press1234#( Hold the “#” key)→Press Vol.+(volume increasing button) 3 times→ [Audio Settings] 2. Configure IPF-2000 voice compression Codec Type : In [Audio Settings] press ENTER once→ [audio type] → press SPD/HOLD→...

  • Page 12: Speed Dial Settings

    ENTER press ENTER again→ [number1] → press SPD/HOLD, input the first set of telephone numbers and then press ENTER. Please repeat step 2 when more numbers need to be stored. IPF-2000 has a capacity to store 100 phone numbers for speed dial.

  • Page 13: Web Configuration

    6. WEB Configuration IPF-2000 series VoIP Phone has an embedded Web server that will help user to configure VoIP Phone via Internet browser. The VoIP Phone Web configuration page can be accessed by assigned URL. You may press “IP” button from VoIP Phone keypad to check its IP address.
  • Page 14 IPF-2000 User Manual...

  • Page 15: Network

    With PPPoE or modem selected in iptype drop down list, please enter the password in this field. With Static selected in iptype drop down list, please enter the IP address of the IPF-2000 in this local ip field.

  • Page 16: Protocol

    IP address in the Service Addr. field. To make calls by dialing IP address of other IPF-2000 or H.323 device (such as Netmeeting) at the same network segment, do not check this option and leave the Service Addr.
  • Page 17 When IPF-2000 is using SIP protocol, and using the Outbound Proxy, please choose disable enable Automatically check the Public IP of the NAT router. When IPF-2000 is using the private IP, nat traversal please choose enable. After choosing enable, the nat address will automatically activate.

  • Page 18: Phone

    ※If there are many IPF-2000 traversing in the NAT at the same time, each IPF-2000 should be assigned with different port number. This defines how many seconds a register message will be sent to the server. The default register ttl setting is 60 second.
  • Page 19 Enter a number from 0 through 60 to set the entries of the seconds before the phone answer answer the call auto or forward the calls. To disable auto answer function, please set this parameter as 0. Set ring type by selecting corresponding option from the drop-down menu. ring type Phone Description IPF-2000 User Manual...

  • Page 20: Audio

    Drag the slider to adjust the volume of hand free output. Drag it to the left to reduce the volume; speaker out while drag it to the right to increase the volume. The range is 1 to 26 Audio Description IPF-2000 User Manual...

  • Page 21: Others

    6.7. Phone Book Click on Phone Book to access IPF-2000 phone book page. You may create a phone book entry by input the necessary information in their corresponding spaces. Click Save/Back to save entry. Speed dial function will then be activated after you have saved an entry.

  • Page 22: Registration Message

    7. Registration Message When the registration for IPF-2000 is successful, Ready for Call will appear on the screen. On the other hand Log fail or Wait Log will appear when registration is not successful. 8. Using IPF-2000 8.1. To make a phone call When dialing a call using IPF-2000, please press “#”...

  • Page 23: Frequently Ask Questions

    Press VOL－ to decrease handset volume until there is no echo. conversation Static Check all the cable to see if they are connected properly. 1. Hold “*” and then unplug power supply. IPF-2000 will back on when the power Revert to factory default supply is plugged back in. setting 2.
