ArtDio IPF-2000 Quick Install Manual

Artdio ipf-2000: installation guide
Hide thumbs Also See for IPF-2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
IPF-2000 Quick Installation Guide

Package Contents:

• One IPF-2000 VoIP phone
• One power adaptor
• One RJ-45 Ethernet cable
• Quick Installation Guide
• Installation CD

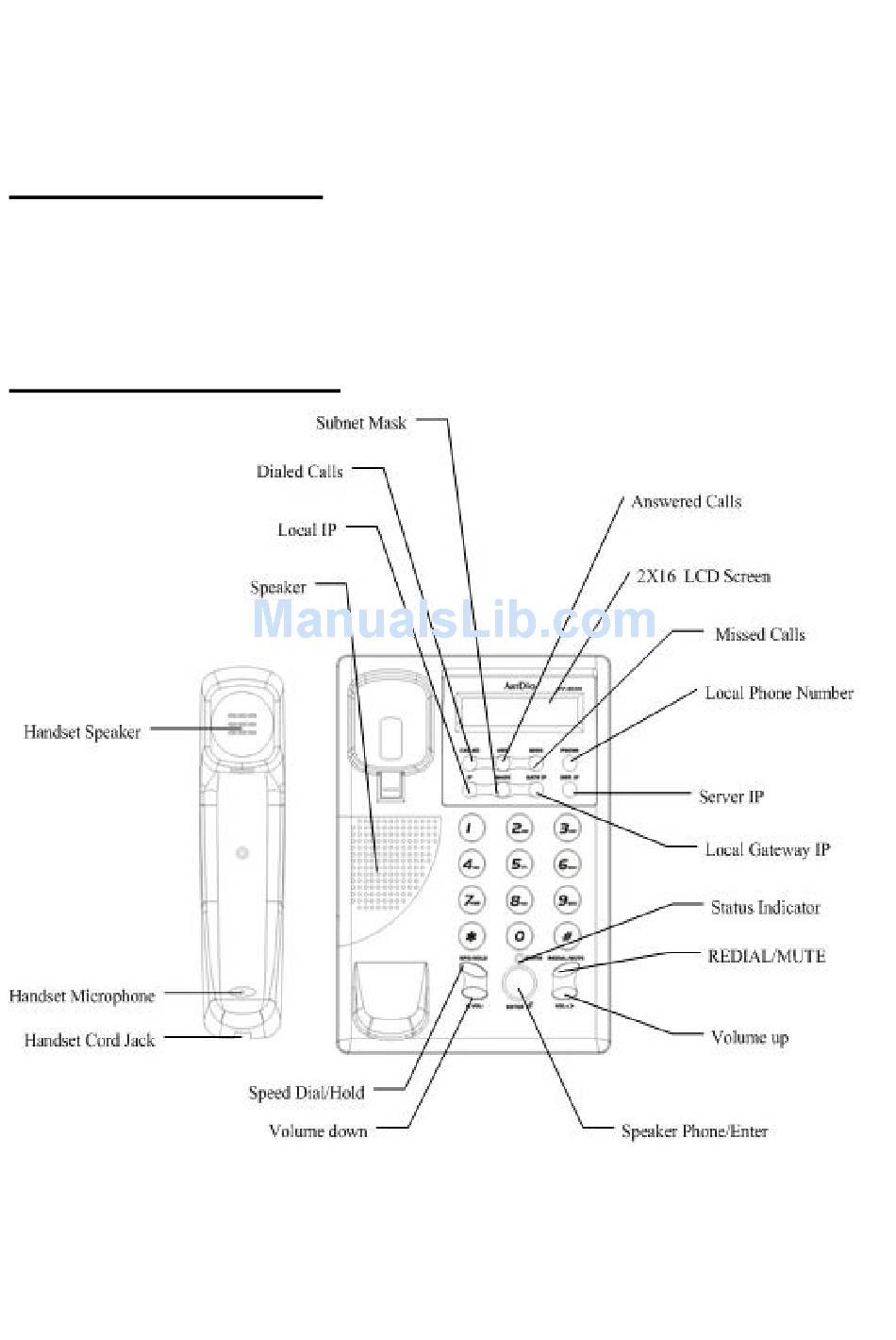

IPF-2000 Functions:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPF-2000 and is the answer not in the manual?

Questions and answers

Related Manuals for ArtDio IPF-2000

Summary of Contents for ArtDio IPF-2000

  • Page 1: Package Contents

    IPF-2000 Quick Installation Guide Package Contents: • One IPF-2000 VoIP phone • One power adaptor • One RJ-45 Ethernet cable • Quick Installation Guide • Installation CD IPF-2000 Functions:...

  • Page 2: Hardware Installation

    Connection with router Plug one end of the RJ-45 to your IPF-2000 LAN port, and plug another end to one of the LAN port of your router. Once “Ready for call” is shown on the screen, the hardware installation is completed.

  • Page 3: Keypad Configuration

    Confirm Setting Network Settings: • The default setting for IPF-2000 is DHCP. Therefore, IPF-2000 will be able to connect to the internet under any DHCP environment. • If the network environment is either PPPoE or Static IP, please change the networking setting of IPF-2000 to its corresponding network environment.

  • Page 4: Web Configuration

    ＃ NAT Environment configuration: If the IPF-2000 is under the NAT environment (Press the IP button on the front panel, if the LCD shows the IP address as 192.168.x.x or 10.x.x.x), please contact your VoIP service provider for the information.

  • Page 5: Registration Message

    Registration Message: When the registration for IPF-2000 is successful, Ready for Call will appear on the screen, so does the time and date. If the registration is not successful, Log Fail or Wait Logon will appear. The possible reasons of the registration failure would be: •...
  • Page 6 1. Please check the Internet connection of the RJ-45 is ok. 2. Please check if the IPF-2000 is able to acquire an IP address. If not, please check the Network Setting and see if the configuration is correct.
