Solo 433 Instruction Manual
Motorized high pressure sprayer
Hide thumbs
Also See for 433:
- Instruction manual (19 pages) ,
- Instruction manual (110 pages) ,
- Instruction manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Solo 433
Summary of Contents for Solo 433

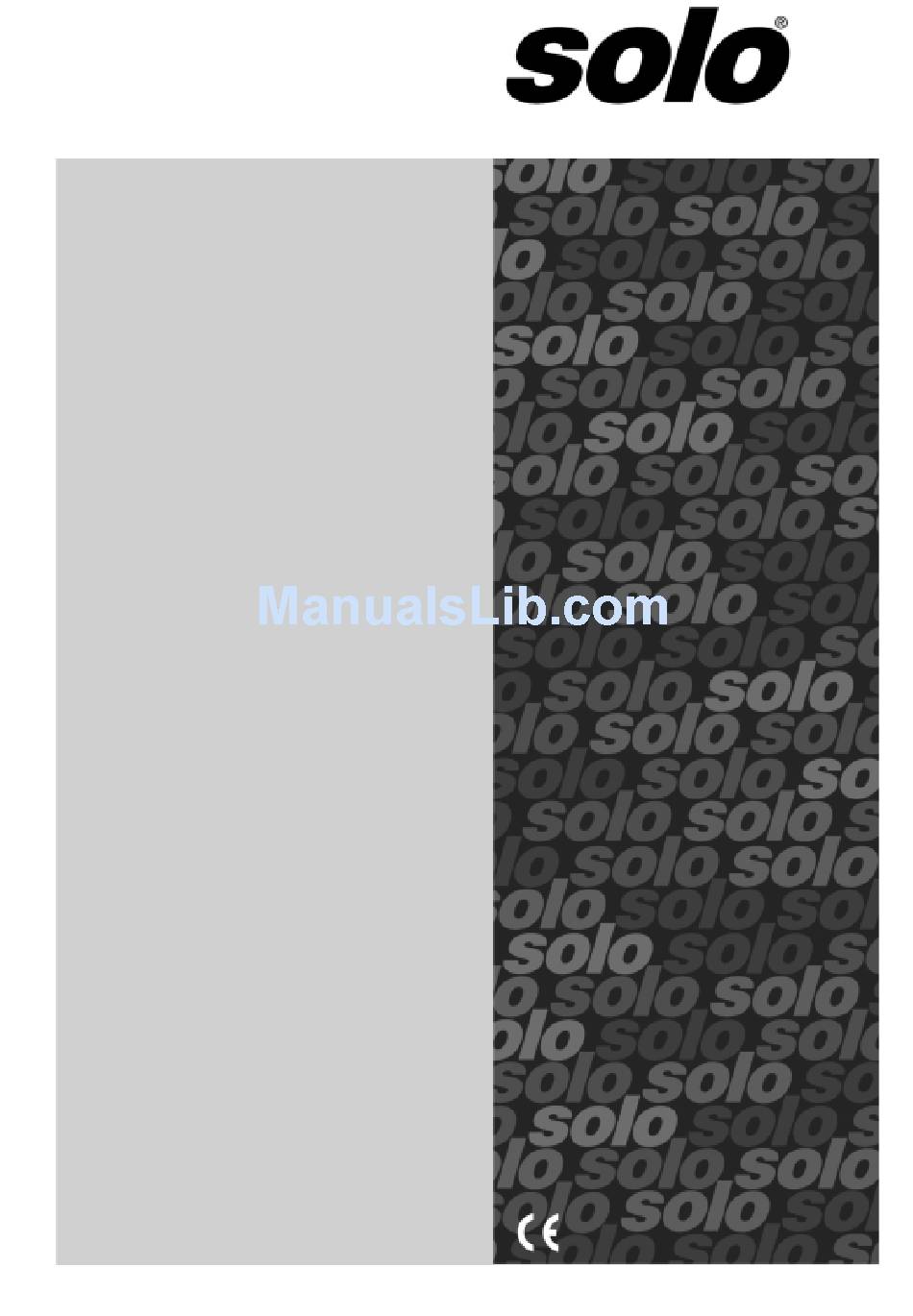

- Page 1 Motorized high Instruction manual pressure sprayer Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 9 433 100 english 07/2004...
- Page 2 Prelude We congratulate you on the purchase of your new high quality SOLO product and hope that you are well satisfied with it. Your high pressure sprayer is driven by a high performance, modern combustion engine. A single cylinder two-stroke engine with Nikasil...
-
Page 3: Table Of Contents
Index Page 1. Safety regulations ......................4 General safety hints Working with chemicals safely Work clothing Transporting the sprayer Fuelling Preparation for starting Starting Working with the machine Maintenance and repairs 2. Technical Specifications ....................7 3. Goods Supplied......................... 8 4. -
Page 4: Safety Regulations
Safety regulations 1. Safety regulations 1.1 General safety hints Read the manual thoroughly before using the machine for the first time. Keep the manual in a safe place. Use this machine carefully and with caution. Ignoring these safety hints may endanger your life. Also observe all rules and regulations for the prevention of accidents as issued by the respective trade associations. -
Page 5: Work Clothing
Safety regulations operate the sprayer for a short time. This will remove residual chemicals from the pump and the hose system. This will avoid possible chemical reactions. • Do not spray in small or closed rooms - there is a danger of poisoning from chemicals and from exhaust fumes. Use motorized equipment in glass houses only if there is sufficient ventilation. -
Page 6: Preparation For Starting
Safety regulations 1.6 Preparation for starting Check the complete machine for operational safety. • The stop button should function properly. • The throttle lever has to move easily and smoothly. • Check the chemical tank, pump, fuel tank and all hoses and pipes for chemicals and fuel for possible leakage. •... -
Page 7: Technical Specifications
Technical Specifications 2. Technical Specifications Engine type SOLO single cylinder two stroke engine Engine capacity 25 ccm Bore / stroke 33 / 30 Engine performance kW at rpm 0.75 / 6500 Medium idling speed 2800 Max. Admissible engine speed 6700... -
Page 8: Goods Supplied
Goods Supplied ; Important functional assemblies 3. Goods Supplied The SOLO 433 High Pressure Pump is supplied complete with the following equipment: • Basic unit o Complete unit but without spray wand • Spray wand with pre-assembled nozzle set • Instruction manual 4. -
Page 9: Preparation For Use
Preparation for use 5. Preparation for use 5.3 Prior to first use and after extended storage periods 5.1 Assembly Prior to using the engine driven high pressure sprayer for the first time and after extended The high pressure sprayer may only be used storage periods we recommend that you check after complete assembly and after the carrying the correct operation of the complete machine. -
Page 10: All About Fuel
All about fuel 6. All about fuel 6.3 Fuelling While fuelling always follow all safety 6.1 Fuel information instructions and take all safety precautions. Handle fuel only with the engine turned off. The power for this machine is supplied by a high Carefully clean the area around the filler inlet. -
Page 11: Preparation Of Spray Chemicals, Filling Of Liquid Container
Preparation of spray chemicals, filling of liquid container 7. Preparation of spray chemicals, filling Liquid volume of liquid container Prepare spray liquid according to the requirements of the chemical manufacturer. Always observe all safety instructions and Match the spray volume to the actual safety precautions when handling spray requirement. -
Page 12: Starting Engine / Stopping Engine
Starting engine / stopping engine 8. Starting engine / stopping engine 8.2 Starting Fig. 8 8.1 Preparation for starting To prevent the pump from running dry, always fill liquid into the tank (11) before starting the machine. When the sprayer is used for the first time or after extended storage or after the liquid tank has been completely run dry (brief dry run of the pump), the pump has to be primed. -
Page 13: Engine Will Not Start
Starting engine / stopping engine The following hints serve to extend the service 8.3 Engine will not start life of the starter rope and the starter If the engine fails to start despite several mechanism: starting attempts, check all previously described •... -
Page 14: Use Of High Pressure Pump
Use of High Pressure Pump Fig. 10 9. Use of High Pressure Pump 9.1 Scope of Application This high pressure pump is suitable for the application of approved liquid plant protection material, pesticides, herbicides and liquid fertilizers available from authorized trade outlets. -
Page 15: Spray Nozzle / Output Volume
Use of High Pressure Pump 9.4 Excess spray chemical / Completing Spray nozzle / Output volume spraying operation Fig. 11 Stop the engine of the high pressure sprayer as soon as air is pumped through the nozzle (this can be heard and seen by the formation of fog like spray drift). -
Page 16: Operating And Maintenance Instructions
Operating and Maintenance Instructions 10. Operating and Maintenance Instructions 10.3 Emptying and cleaning liquid tank 10.1 General operating and Fig. 12 maintenance hints After a running-in period of approx. 5 hours all accessible screws, nuts and hose connections (except for carburettor mixture adjustment screws) have to be checked and re-tightened if necessary. -
Page 17: Carburettor Adjustment
Using the D-CUT carburettor: Regularly clean the inlet funnel filter and the Key (SOLO part no: 00 80 537) to correct settings spray nozzle with a soft brush. Never use the on the idle mixture screw "L" (25) and on the mouth to blow through the nozzle! full load screw "H"... -
Page 18: Air Filter Maintenance
Operating and Maintenance Instructions 10.5 Air Filter Maintenance 10.6 Information about the spark plug Dirty air filters cause a reduction in engine Do not turn the engine over while the spark performance and increase fuel consumption plug has been removed or the spark plug cap with more pollutants in the exhaust gas. -
Page 19: Remove The Fuel Filter
Operating and Maintenance Instructions 10.8 Remove the fuel filter 10.9 Shutdown and storage We recommend to have the fuel filter (32) Drain and clean the machine according to the changed annually by a specialized service centre. instructions provided in section 10.3 "Emptying and cleaning liquid tank". -
Page 20: Maintenance Plan
Operating and Maintenance Instructions 10.10 Maintenance Plan The following hints are based on normal operating conditions. For special conditions, such as long, daily use, the recommended maintenance intervals should be shortened accordingly Carburettor Check idling speed Adjust idling speed Air filter Clean Replace Adjust electrode gap... -
Page 21: Guarantee
Guarantee ; Parts subject to wear and tear 11. Guarantee 12. Parts subject to wear and tear The manufacturer guarantees problem free Various parts are subject to application-specific quality and will cover the cost of replacing parts wear or to normal wear and must be replaced in which are found to be faulty in material or show good time if necessary. - Page 22 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________...
- Page 23 __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________ __________________________________________________________________________________________________...
- Page 24 Made in Germany SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-130 +49-7031-149 info@solo-germany.com export@solo-germany.com...
