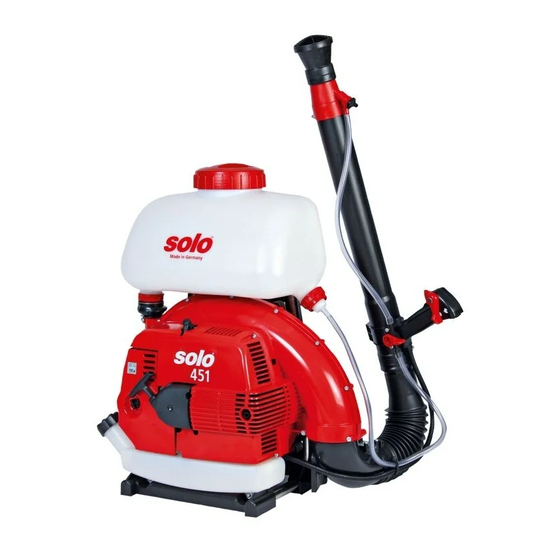

Motorized mistblower
Hide thumbs Also See for 451:

Advertisement

- ENGLISH -
Instruction manual
Original instructions
Caution! Prior to operating the unit, please
read the owner's manual carefully, and most
importantly, observe all safety rules.
Observe the maintenance guidelines closely to
ensure the long service life of your equipment.
Your dealer will be glad to assist you with any
questions.
This machine produces an electromagnetic
field during operation. This field may under some
circumstances interfere with active or passive
medical implants. Persons with medical implants
have to consult their physician and the medical
implant manufacturer before operating this
machine.
EC declaration of conformity  The EC
declaration of conformity on a separate piece of
paper forms part of these operating instructions.

Packaging and disposal

Please keep the original packaging in order to
protect the equipment against transport damage in
case you ever need to ship it or transport it. If the
packaging materials are no longer required then
they must be disposed of properly in accordance
with applicable local regulations. Cardboard
packaging materials are raw materials which can
be recycled or reused.
At the end of the equipment's service life, please
make sure that you dispose of it properly, in
accordance with the official directives and
regulations that apply in your area

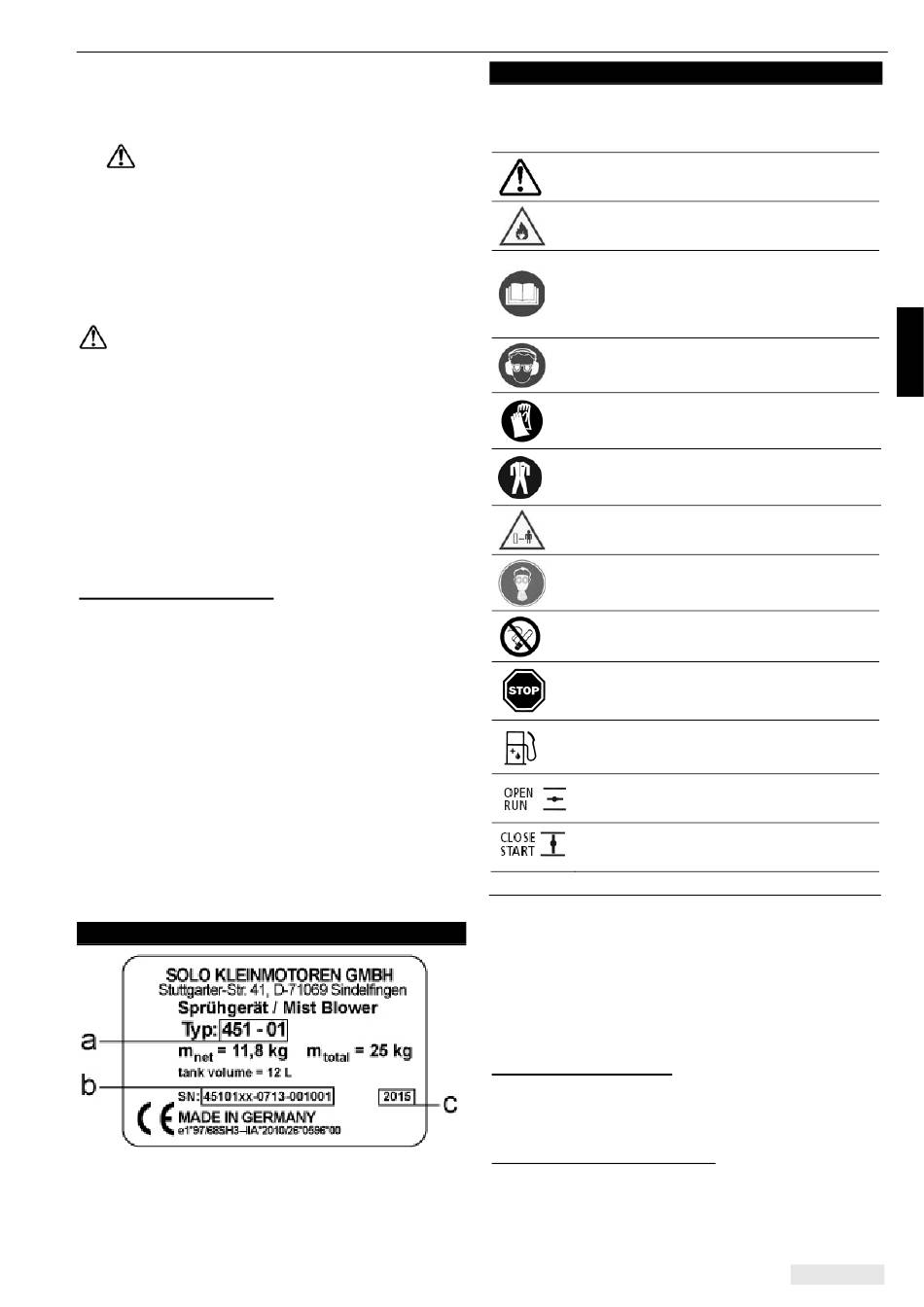

Type plate

a: Type designation
b: Serial number
c: Build year
Motorized mistblower

Symbols

The following symbols are used in this manual and
on the product:
Always handle this power tool with
particular care
Keep open flames away from the power
tool and the fuel can.
Thoroughly read these operating
instructions before undertaking any
maintenance, installation and cleaning
steps
Wear ear defenders and a face shield
before starting the engine
Wear protective gloves when handling
and working with the equipment
Wear the prescribed protective clothing.
No-one else may remain in the vicinity of
the motor appliance whilst it is operating.
A breathing mask should be worn when
using poisonous chemicals
Never smoke near the power tool or
where the equipment is refuelled!
Switch off engine
Fuel mixture
Choke open
Operation and warm start
Choke closed,
Cold start position
In the best interest of continued technological
progress we reserve the right to change the design
and configuration of any product without prior
notice.
For that reason, no claims can be accepted with
reference to text and illustrations in this manual

National requirements

The pressure sprayer may be subject to national
requirements for regular inspection by designated
bodies, as provided for in Directive 2009/128/EC
1
Directive 2009/128/EC of the European Parliament
and of the Council of 21 October 2009 establishing a
framework for Community action to achieve the
sustainable use of pesticides
451
.
1
.
ENGLISH 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 451 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Solo 451

  • Page 1 - ENGLISH - Motorized mistblower Symbols Instruction manual Original instructions The following symbols are used in this manual and on the product: Caution! Prior to operating the unit, please Always handle this power tool with read the owner’s manual carefully, and most particular care importantly, observe all safety rules.
  • Page 2 7. Assembly ............9 replacement part offering. Please note as well that guarantee performances from SOLO are not Active components of the operating possible if parts other than SOLO original parts are handle used. 8. Adjustment of shoulder straps ....10 9.
  • Page 3 • Unauthorized modification or changes made to the device. • Intervention by non-specialized persons, or improper repair attempts. • The use of unsuitable replacement parts or parts other than SOLO original parts to the extent that they cause damage. • Using unsuitable fuel or fuel that has been stored too long.
  • Page 4 Safety regulations 4.2 General safety instructions Some parts on the machine have been removed for transport purposes. Prior to first use, the mistblower has to be completely assembled. This mistblower may only be started and used when completely assembled. Read the operating instructions carefully before placing in service and keep them in a safe place. The operating instructions must be kept available at all times wherever the device is used or stored.
  • Page 5 Safety regulations 4.5 Irregularities, incidents, accidents  In case of irregularities, leaks, visible damage or reduced efficiency, do not commence work, but leave the unit from a dealer check.  When irregularity, leaks or malfunctions occur during operation, turn off the stop switch immediately and put the machine on the ground immediately.
  • Page 6 Important Components 5. Important Components Fig. 1 Tank lid / Filler basket with filter Primer Formula tank Shoulder strap – quickcoupling Formula outlet Liquid tap Spark plug Spray tube Carburetor adjustment screws Spray nozzle Muffler Dosage sleeve Starter handle Throttle lever Air filter cover Stop switch Fuel tank cap...
  • Page 7 Maintenance and care 6. Maintenance and care Turn the idling end-stop screw "T" to adjust the idling speed in accordance with the details provided in the specification. Use an engine rev counter for this job. Any cleaning, maintenance or repair jobs should ...
  • Page 8 Maintenance and care 6.2 Air Filter Maintenance 6.3 Spark Plug The correct spark plug with thermal range 200 is The air filter separates and retains dirt before the available under the following brands: air reaches the combustion chamber. This reduces BOSCH WSR6F engine wear.
  • Page 9 Assembly 7. Assembly Completely assembly the mistblower before its first use: Fig. 4 Assembly of misting equipment Attach the blower elbow (1) to the blower housing and secure with both screws (Fig.4D; A+B). Ensure the elbow can swivel easily. Push pleated hose onto blower elbow and secure with clamp (4). Assembly of handle, spray tube and spray nozzle Push handle (5) onto spray tube (start from the front) and fix in the required position (Fig.4C).
  • Page 10  Remove tank lid and fill fuel mix up to the lower cycle oil “SOLO Profi 2T Oil”. When using other - edge of the filler neck. Do not overfill. If cycle oils we recommend a mixture ratio of 1:25 possible, always use a fuel funnel with filter.
  • Page 11 The strainer has a mesh size of 0.55 mm. Only use original SOLO strainers, part no.: 42 00 104 with standard mesh size. Avoid any direct contact of the filling hose and the contents of the spraying agent tank.
  • Page 12 Starting / Stopping the engine ; Operation hints 11. Starting / Stopping the engine 12. Operation hints  Before every use and before every start of the 12.1 Misting Hints mistblower check and ensure the machine is in good and safe condition. (throttle operation, Open liquid tap: Lever in horizontal position ...
  • Page 13 Operation hints 12.2 Spraying Nozzle attachment (6):  When applying spraying agent, ensure by using Fig. 10 appropriate measures and procedures that the unintended release of agent to other areas is minimized and the drift to the surrounding areas is prevented. ...
  • Page 14 Operation hints 12.3 Residual spray medium Switch off the appliance as soon as no further liquid is expelled, when the metering body is correctly positioned for spraying, or air bubbles are visible inside the lance supply hose. The tank will then contain less than 100 ml residual medium.
  • Page 15 Dispose of residual spray medium correctly at disposal sites licensed for specialised waste. Please obtain the following practical accessories from your SOLO Dealer: Accessories Part No. ULV-nozzle ULV-Nozzle with ULV dosage selector for application of minute...
  • Page 16 Maintenance Plan 14. Maintenance Plan The following information is based on standard operating conditions. For special conditions, such as prolonged daily use, the recommended maintenance intervals should be reduced accordingly. Implement all maintenance jobs regularly. If required, authorise a specialist service centre to maintain the machine for you.
  • Page 17 Air filter cartridge Paperstyle Ignition Electronically controlled magneto ignition, maintenance free Total Formula Tank Capacity 13 / 21 (Typ 451-02) Nominal Formula Tank Capacity 12 / 20 (Typ 451-02) Strain funneled mesh size 0.55 Residual volume which the equipment cannoot properly apply <...
  • Page 18 Made in Germany SOLO SOLO Postfach 60 01 52 P.O.Box 60 01 52 D 71050 Sindelfingen D 71050 Sindelfingen Germany Tel. 07031-301-0 Phone+49-7031-301-0 Fax 07031-301-130 +49-7031-301-149 info@solo-germany.com export@solo-germany.com...
