User Manual
WT-171LM / S
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax WT-171LM
Summary of Contents for Commax WT-171LM
-
Page 1: User Manual
User Manual WT-171LM / S • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
Contents 1. Introdution..............3 2. Important Safeguard............4 3. Part names and features ..........4 4. Wiring .................5 5. Registration / Deleting ..........6 6. How to use ..............7 7. Accessories ..............8 8. Specifications and Features ........8... -
Page 3: Introdution
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
2. Important Safeguards ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service per- sonnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spilled or objects have fallen into the unit ⓒ... -

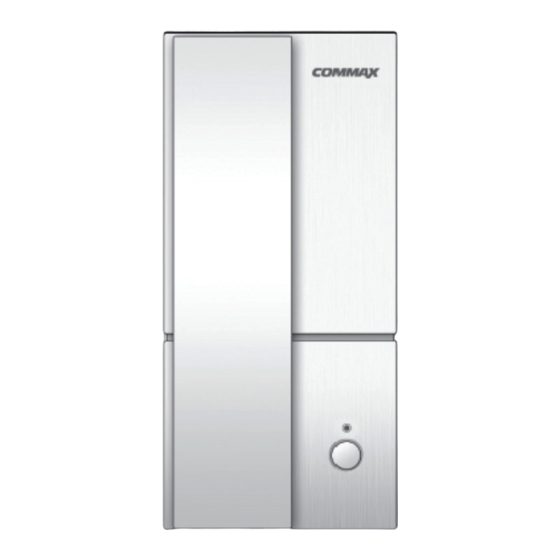

Page 5: Part Names And Features
3. Part names and features Features and setting Power switch ① Handset ② Call Button ③ Handset cord ④ Power plug ⑤... -
Page 6: Wiring
4. Wiring SCREW T4X18(2EA) ※ Plug the AC cord into the outlet... -
Page 7: Registration / Deleting
① When the power is turned on, the beep will sound. ② This product consists of the master(WT-171LM) and slave (WT-171LS) units. ③ Turn on the master unit first and, within 30 seconds, press the call button for 5 seconds while the handset is hung on its hook lever. -
Page 8: How To Use
6. How to use ① Pick up one of the handsets of Master and Slave unit and press call button ② Bell rings when it is called(Ding Dong Dang) ③ Pick up the handset to start the conversation. ④ When the conversation is over, put down the handset. ⑤... -
Page 9: Accessories
7. Accessories Screws for wall mount : 2 Ea. Bracket & screw for powercord 8. Specifications and Features Model WT-171LM / S Power Source 110~220V / 50~60HZ Power WT-171LM : 2W Consumption WT-171LS : 1W Call Method GFSK Ring tone... - Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2014.04.105 PM53WT171M10...
