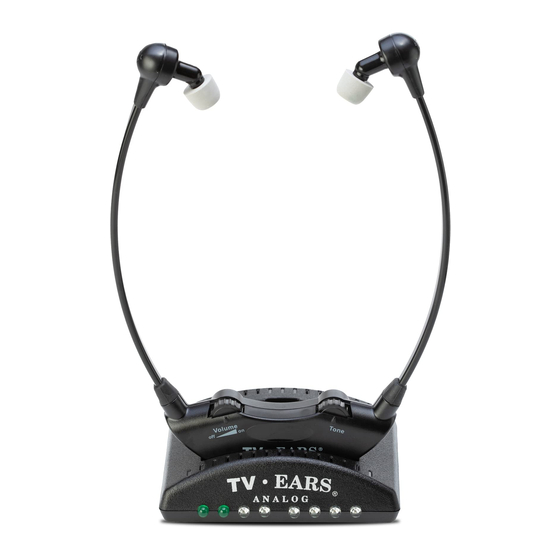

TV Ears 5.0 Analog User Manual
Hide thumbs
Also See for 5.0 Analog:
- User manual (36 pages) ,
- Quick start manual (13 pages) ,
- User manual (24 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for TV Ears 5.0 Analog
Summary of Contents for TV Ears 5.0 Analog
- Page 1 TV Ears 5.0 Analog User Manual Voice Clarifying Circuitry ®...
- Page 2 Keep these instructions in a safe place for future reference. v1.4.2014.5.0A TV Ears logos, pictures, design, and content ©2014 TV Ears, Inc. All rights reserved.
-
Page 3: Table Of Contents
Table of Contents Important Safety Information Introduction Product Diagram What’s Included Ideal TV Ears Placement Installation Step 1 - Place & Power the Transmitter Step 2 - RCA Analog Installation Step 2.1 - 3.5mm Cord Analog Installation Step 3 - Charge the Headset Custom Fit the Headset Using the System &... -
Page 4: Important Safety Information
TV Ears, Inc. asks that you read all instructions completely and heed all warnings to ensure proper handling and prevent any injuries. Failure to act in accordance with TV Ears, Inc.’s instructions can lead to physical harm or injury. For safety purposes, do not deface the prongs on the AC adapters. If the provided plug does not fit into your outlet, purchase the correct adapter or consult an electrician for further assistance. -
Page 5: Introduction
Towards the back of the manual, you will find information on our warranty, technical specifications of your product, and support contact information just in case you have any questions. Again, we welcome you to the TV Ears family and wish you happy TV listening! -
Page 6: Product Diagram
Product Diagram Foam Ear Tips Headset Bow Arm On/Off & Volume Dial Tone Dial Charging Cradles Transmitter Infrared Signal Lights Charging Lights... -
Page 7: What's Included
Package Contents 5.0 Analog Transmitter 5.0 Wireless Headset RCA Analog Audio Cord 3.5mm Analog Audio Cord AC Power Adapter... -
Page 8: Ideal Tv Ears Placement
Ideal TV Ears Placement Every wireless TV Ears system utilizes infrared technology to send audio signals from the transmitter to the headset. Infrared technology requires a direct line-of-sight from the transmitter to the receiver (or headset) to successfully transmit audio signals. Therefore, when installing any wireless TV Ears system, you will have to be sure the transmitter has a direct line-of-sight with the headset when the headset is in use. -
Page 9: Installation
Installation pgs. 8-11... -
Page 10: Step 1 - Place & Power The Transmitter
Step 1 - Place & Power the Transmitter This step explains where to place the transmitter for the best performance as well as how to power the transmitter. The infrared diodes on the transmitter must be in direct line- of-sight with the headset when using the system for best performance. -
Page 11: Step 2 Rca Analog Installation
• Your TV’s audio settings may be set to “variable” or “fixed”. If you want to be able to control your TV volume level separate from your TV Ears volume level, you will need to make sure your TV is set to “fixed”. Contact your TV manufacturer for assistance. -
Page 12: Step 2.1 - 3.5Mm Cord Analog Installation
• If you connect the 3.5mm audio cord to the Headphone port on your TV, your TV Ears will still function properly, but the sound to your television speakers will be muted. The port is usually labeled with an icon that looks like the following: Plug one end of the 3.5mm audio cord into the “Audio Out”... -
Page 13: Step 3 - Charge The Headset
At leAst 14 hours before fIrst use is recommended to help prolong the lifespan of the battery. • The TV Ears headset will last around 6 hours on a full charge, but will last a lesser or greater amount of time depending on the average volume level of the headset. -
Page 14: Custom Fit The Headset
Custom Fit the Headset Headset Width Adjustment All TV Ears headsets should be adjusted prior to first use to fit the user comfortably. • Hold the arm portion of each side and evenly pull apart to stretch the arms into a more comfortable position. -
Page 15: Using The System & Features
Using the System & Features The Headset Putting the Headset On Using both hands, gently separate the arms at the top by the ear tips and place the earpieces into each ear. Removing the Headset Make sure the headset is completely turned off. Using both hands, gently separate the arms at the top by the ear tips removing the earpieces from your ears. -
Page 16: Using The System & Features
Using the System & Features The Transmitter Charging Lights There are two charging lights on the transmitter. They are the two leftmost green lights on the front of the transmitter. When a headset is charging in the front cradle, the left of the two charging lights will illuminate. -
Page 17: Caring For Your Product
Servicing is required when the TV Ears product has been damaged in any way, such as when the power-supply cord is damaged, liquid has been spilled on the product, objects have fallen into the... -
Page 18: Troubleshooting
(consult your television manual or manufacturer). When the TV is set to a “Variable” audio out setting, the volume of the TV Ears headset will be the same volume as the TV. Why do I hear a television station when I’m watching a DVD/... - Page 19 Troubleshooting Will the lights change colors once the headset is fully charged? No, the charging light will remain a constant color as long as a headset is placed in the charging cradle. We recommend keeping the headset in the charging cradle when not in use. The headset cannot be overcharged, so leaving it in the charging cradle when you are not using it will not damage the headset.
-
Page 20: Warranty And Return Information
Repairs or alterations performed by non-authorized TV Ears representatives will void the warranty and may damage the equipment. Also, if the TV Ears product is taken outside of the US the warranty becomes void. This warranty is provided at the discretion of TV Ears, Inc. and... -
Page 21: Manufacturer Declarations
Manufacturer Declarations TV Ears Declaration All content, marks, and brand logos are property of TV Ears, Inc. TV Ears, Inc. reserves the right to change product content and product specifications without notice. CE Declaration of Conformity TV Ears is in compliance with the essential safety requirements and other relevant provisions of Standard IEC 60065:2001 + Ammd 1:2005 / EN 60065:2002 and Directive 2004/108/EC;... -
Page 22: Technical Specifications
Technical Specifications Headset Specifications operating time - Up to 6 hours on a full charge Power supply - NiMH (Nickel Metal Hydride) rechargeable Max sPl - 125 dB Weight - 2 oz (57g) height - 8 in (20.32 cm) Transmitter Specifications Audio Microphone connection - RCA Analog/Mini Headphone Dimensions (h x W x D) - 1.4”... - Page 23 Includes two 5.0 Headsets, one Dual Digital Transmitter, and accessories. TV Ears 5.0 Dual Digital with Speaker Item Number - 11941 | MSRP $399.95 This is our advanced wireless speaker system with analog and digital connectivity.
-
Page 24: Contact Information
Contact Information Register Your Product Online at www.tvears.com/warranty www.tvears.com www.facebook.com/tvearsinc twitter: @tvears 888-883-3277 - Sales Main Line 866-611-9934 - Support 888-958-7899 - Fax info@tvears.com - Email TV Ears, Inc. 2701 Via Orange Way, Suite 1 Spring Valley, CA 91978...
