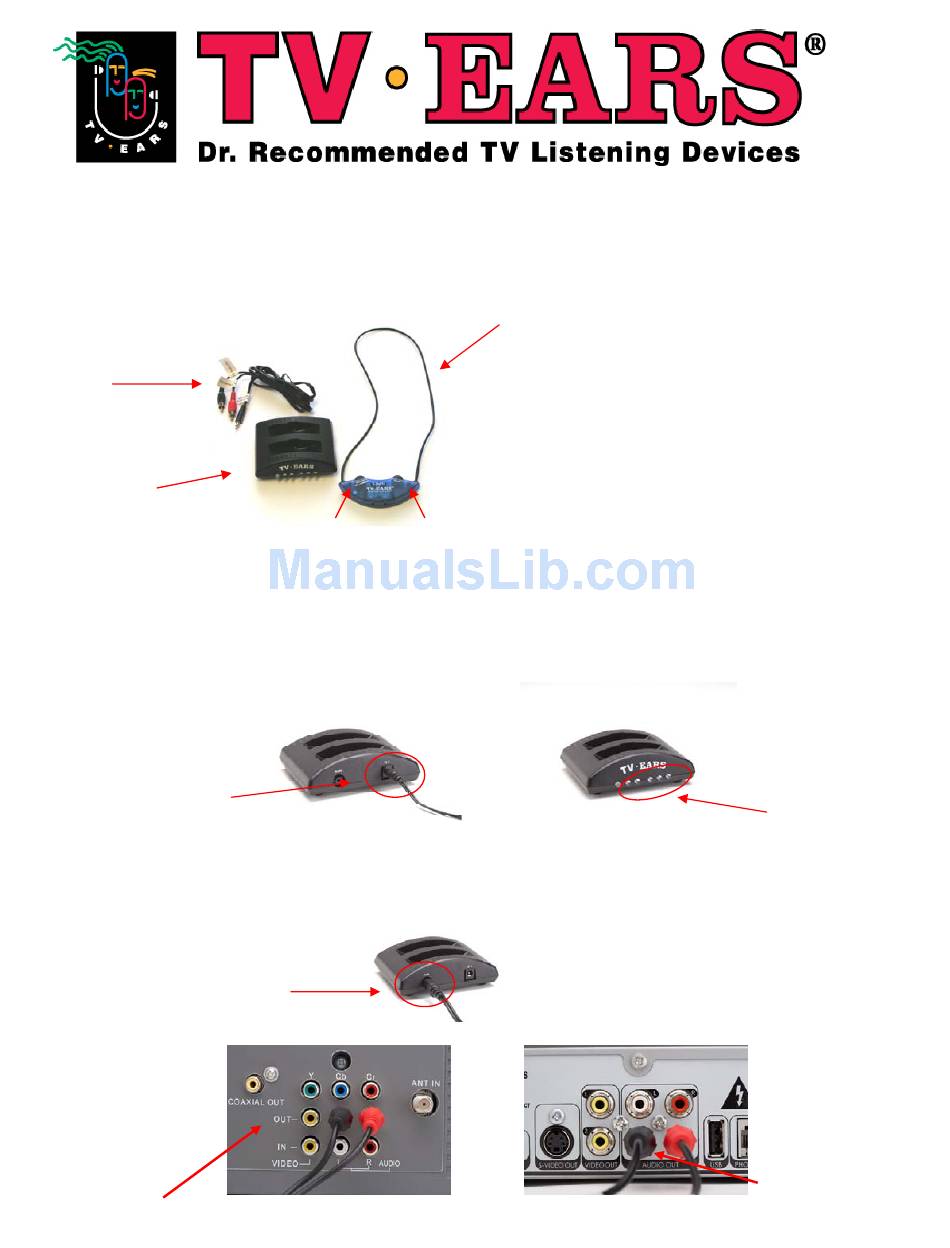

TV Ears Hearing Aid User Manual

Creates a TV Ears looped environment for T-coil hearing aid wearers as they listen to their television. Now users can
keep their T-coil hearing aids in and hear the clarity of dialogue on the TV. TV Ears Link is compatible with a TV
Ears 2.3MHz system.
Audio Cord
2.3 MHz
Transmitter

Step 1: Install Power

 Plug the AC power supply into the wall outlet and plug the other end into the 12v jack located on the back of
the transmitter. Always keep transmitter plugged into a powered wall outlet.
 The 5 clear lights on the front of the transmitter are the LED infrared lights. They will glow red at all times
when transmitter is receiving power. Cup you hand over the lights to confirm the transmitter has power.
Plug the AC
Power Supply
into the 12v jack
on the back of
the transmitter

Step 2: Install Audio

 Insert the single end of the Audio Cord into the audio jack located on the back of the transmitter.
Audio port on
back of your TV
Ears transmitter

Insert the double end of the audio cord audio out ports on the back of your television
Example of
Audio Out

TV Ears Link System

Adjustable Volume & Tone Control Dials
TV Ears TV Link

Features:

1 TV Ears TV Link
1 2.3MHz transmitter
1 Audio Cord
1 a/c power supply
Adjustable volume and tone control dials
The 5 LED
infrared
lights on the
front of the
transmitter
.
Example of
Audio Out
