User Manual
The Original System Installation Instructions

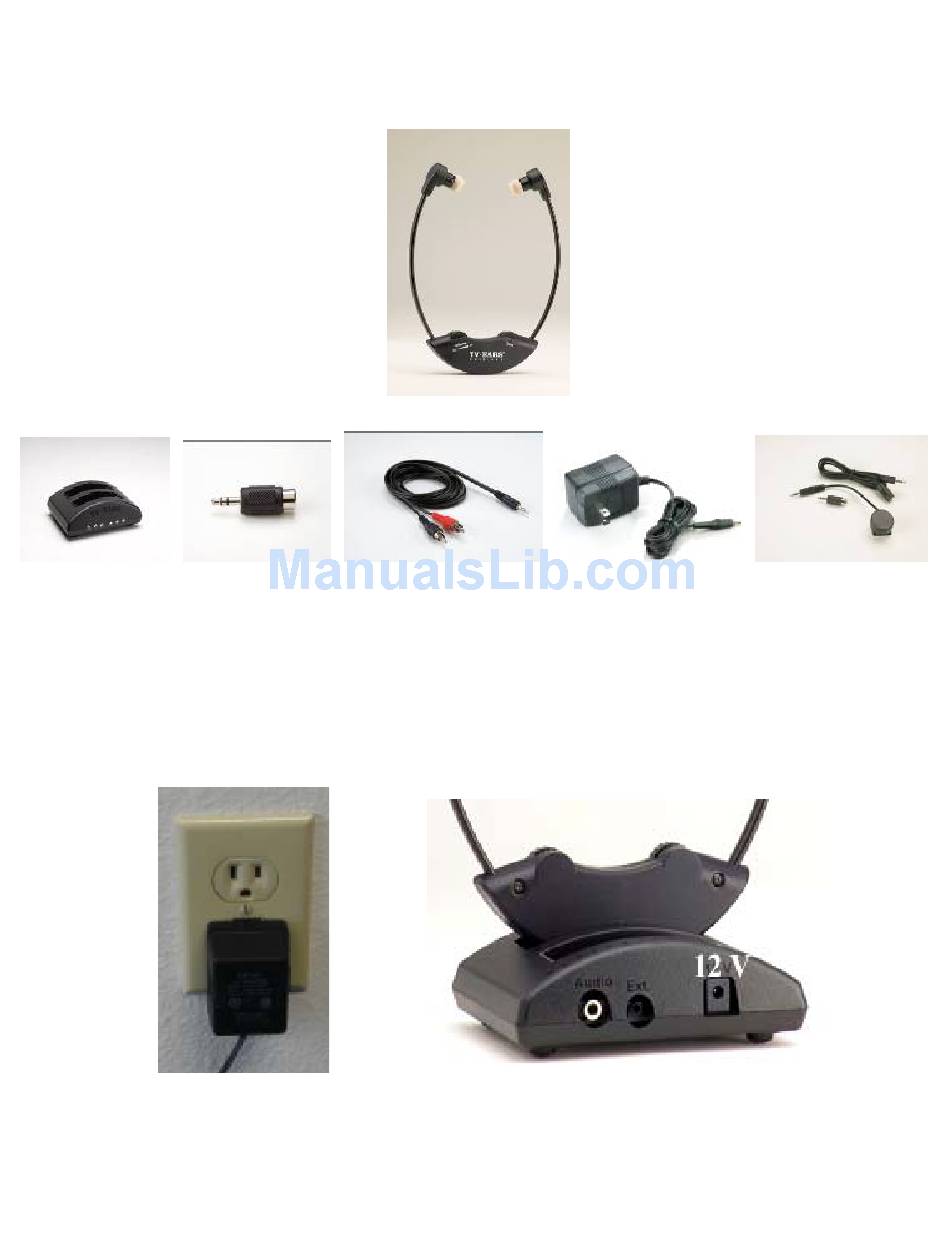

Step 1 - Contents
Remove items from box:
1
Headset
2
3
4
5
6
(2) Transmitter, (3) Headphone Adapter, (4) Audio Cord, (5) A/C Adapter (6) Alternative
Installation Kit.
Step 2 – PLUG IN A/C ADAPTER
5
2
Plug the A/C Adapter (5) into standard 110 volt electrical outlet and plug the other end into
the"12v" jack located on the back of the transmitter (2). NOTE: System will not work
if unplugged from electrical outlet.
Advertisement
Table of Contents
Related Manuals for TV Ears Headphone
Summary of Contents for TV Ears Headphone
- Page 1 Step 1 - Contents Remove items from box: Headset (2) Transmitter, (3) Headphone Adapter, (4) Audio Cord, (5) A/C Adapter (6) Alternative Installation Kit. Step 2 – PLUG IN A/C ADAPTER Plug the A/C Adapter (5) into standard 110 volt electrical outlet and plug the other end into the“12v”...
- Page 2 Step 3 – PLUG IN AUDIO CORD Plug the single end of the Audio Cord (4) into the "Audio" jack located on the back of the transmitter (2). Plug the other end (RED & BLACK) into the "Audio Out" ports located on the back of your (8) television set……or….
- Page 3 If you chose to plug the Audio Cord (4) into the back of your satellite box or cable box and you want TV Ears to also work with your DVD or VCR, then plug the RED wire of the Audio Cord (4) into the "Audio Out"...
-
Page 4: Step 4 - Placing The Transmitter
Audio Out port anywhere, then use the "Alternative Installation Kit". The Alternative Installation Kit is also helpful when traveling with TV Ears. Step 4 – PLACING THE TRANSMITTER If you experience interference, use the six foot extender cord included, to move the... - Page 5 Attention Plasma Screen TV Owners Plasma screen television sets create a field of disturbance that may interfere with the TV Ears system. We offer a 6 foot Extension Cord which can work with either the Audio Cord or the Multi-Use Power Microphone. This Extension Cord allows you to move the TV Ears Transmitter / Charger away from the plasma screen and outside the field of disturbance.
-
Page 6: Step 5 - Using The Headset
Audio Cord 4 (either red or black will work) and plug it into the headphone jack on the front or side on the television set and the other end into the back of the transmitter labeled “Audio”. -
Page 7: Step 6 - Charging The Headset
Step 7 – REPLACING THE EAR TIPS The Headset (1) comes with a set of “TV Ears Tips” installed on the headset. When the tips become dirty or frayed they should be replaced. To replace the tips: First remove the old tips by pulling them off with your fingers or using the specially designed “Tip Remover”... -
Page 8: Optional Accessories
Optional Accessories TV EARS TIPS (5 Pair) ADDITIONAL 2nd HEADSET MSRP $79.95 ITEM #10021 MSRP $19.95 ITEM #10111 TV Ears Original 95 KHz TV Ears Tips 5 Pair Additional Headset. SEAT SIDE CHARGER TV EARS BATTERY Power Stacker Transmitter MSRP $49.95 MSRP $19.95... -
Page 9: Frequently Asked Questions
I walked into the next room and I can’t hear the television anymore, is this normal? A10: TV Ears uses Infrared technology in our TV Ears Systems, which requires a direct Line of Sight in order for you to receive a clear Audio Sound.
