VirtualDJ 8 – Denon MC4000
1

Advertisement

Table of Contents
loading

Related Manuals for Denon MC4000

Summary of Contents for Denon MC4000

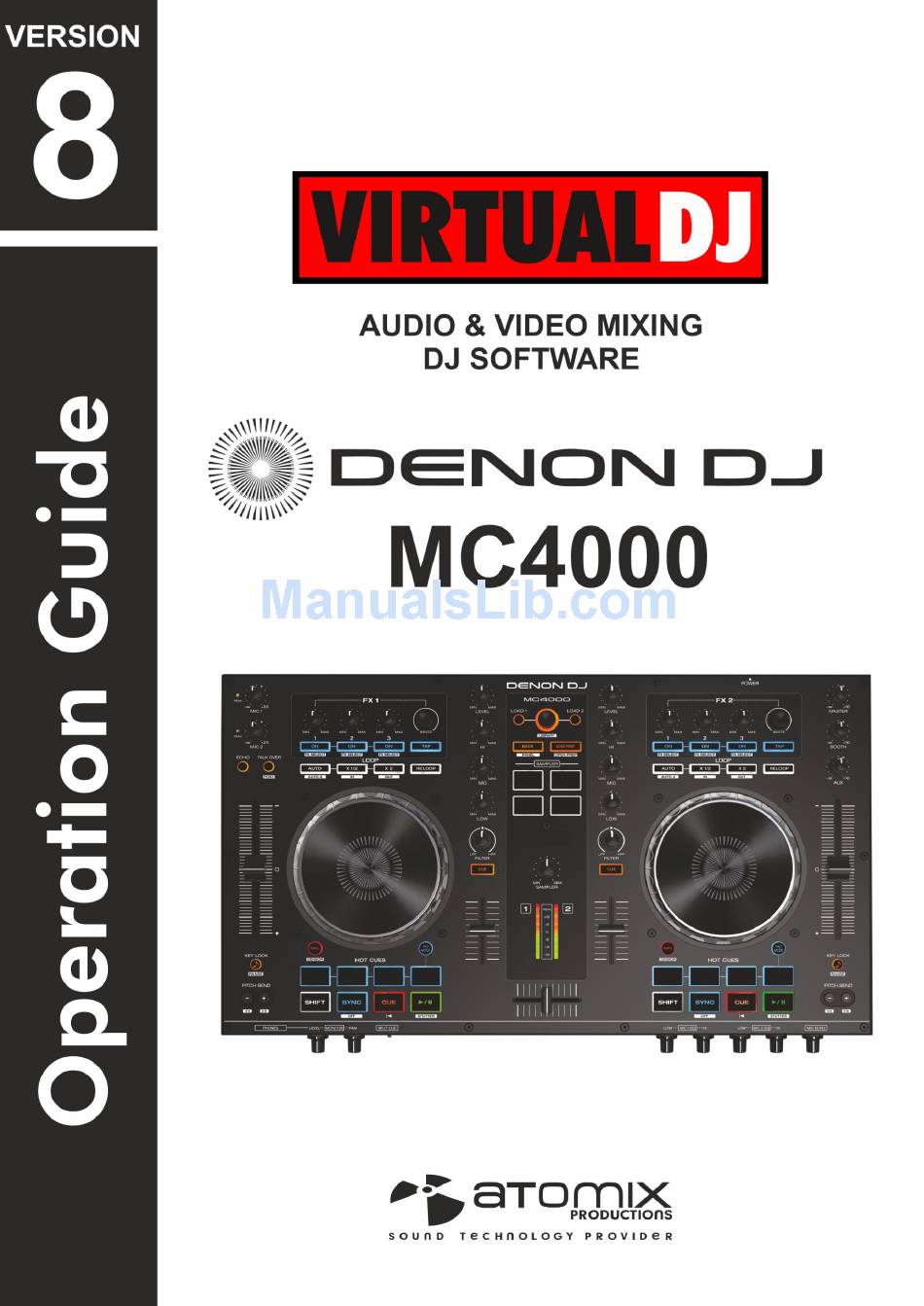

  • Page 1 VirtualDJ 8 – Denon MC4000...

  • Page 2: Table Of Contents

    Hot-Loop 1-4 mode ......................10 Loop Rolls mode ........................10 F. EFFECTS & LOOPS ......................11 G. MICROPHONE ........................13 H. MASTER ..........................13 I. REAR PANEL ........................14 J. FRONT PANEL ........................14 INPUTS & RECORDING ......................15 VirtualDJ 8 – Denon MC4000...

  • Page 3: Installation

    Master Output sockets (RCA or XLR). Power on MC4000. Firmware Windows & Mac Currently there is no firmware available, but please make sure of that by visiting the MC4000 product page. http://denondj.com/products/view/mc4000 Drivers Windows only Download and install the latest ASIO drivers from: http://denondj.com/products/view/mc4000...

  • Page 4: Advanced Setup

    A detection window will appear next, asking to use or not the pre-defined audio setup with the built-in sound card of the MC4000. Select “Use Soundcard” and click OK The unit is now ready to operate. Advanced Setup MIDI Operation...
  • Page 5 SHIFT. Press and hold this button to access secondary functions of other controls on the MC4000 M. PAD MODE. Press and hold this button to access a different mode for the HotCue PADS Sampler PADS VirtualDJ 8 – Denon MC4000...

  • Page 6: Mixer

    12. BACK Use this button to set focus to the Folders List. If the focus is on the Folders list, use this button to expand/collapse sub-folders. Hold SHIFT down and then use this button to cycle through the available center panels of the default GUI of VirtualDJ (Mixer, Video, Scratch an Master view) VirtualDJ 8 – Denon MC4000...

  • Page 7: Sampler

    SHIFT down and then use the same Sampler buttons to stop the playing samples. 15. SAMPLER VOLUME. Use this knob to adjust the Master Volume of the Sampler (will affect the Output Volume of all Samples) VirtualDJ 8 – Denon MC4000...

  • Page 8: Deck Controls

    Pitch Fader. Hold SHIFT down and then use this button to select the next available range of the Pitch Fader ( from ±6%, ±8%, ±10%, ±12%, ±20%, ±25%, ±33%, ±50% to ±100%). 21. PITCH. Adjust the track's playback speed (tempo). VirtualDJ 8 – Denon MC4000...

  • Page 9: Hotcues

    Hold the PAD MODE button (M) down and then press Pad Nr2 button to select the HotCues 5-8 mode. The LED of the PAD MODE selection button will be turned on blue after the selection. VirtualDJ 8 – Denon MC4000...

  • Page 10: Hot-Loop 1-4 Mode

    (while pressed) Loop Roll of a different size in beats as per the image. Once the Pad is released, the track will continue to play from the position it would have been if the Loop was never triggered. VirtualDJ 8 – Denon MC4000...

  • Page 11: Effects & Loops

    The Multi FX mode offers 3 Effect slots with up to 2 Effect Parameters per slot. 29. FX1 ON Single FX Mode. Press this button to trigger the selected Effect. Hold SHIFT down and then press this button to open/close the FX GUI of the selected Effect. VirtualDJ 8 – Denon MC4000...
  • Page 12 Slot 3. Hold SHIFT down and then use this knob to control the 2 parameter of the selected Effect on FX Slot 3. 36. BEATS ENC. Use the left BEATS Encoder to select the Video Transition and the right BEATS encoder to select the Video Effect for Master. VirtualDJ 8 – Denon MC4000...

  • Page 13: Microphone

    Effect is controlled from the front panel of the unit. 40. TALK OVER. Use this button to enable/disable Talk Over (led will blink when engaged). When enabled, the MC4000 detects the MIC inputs and attenuates the audio signal level of the master output. When using the microphone, this function...

  • Page 14: Rear Panel

    MC4000 first, and then plug the other end into a power outlet. Use the Power Switch to turn the MC4000 on and off. Turn on the MC4000 after all input devices have been connected and before you turn on amplifiers. Turn off amplifiers before you turn off the unit 29.

  • Page 15: Inputs & Recording

    If you wish to record both the software mix and the Inputs (Microphones and Aux) at the same time, you will need to: Route the Booth Output of the MC4000 to a Line Input of a different sound card (could be the MIC/LINE Input of your computer’s built-in sound card) using suitable...
  • Page 16 VirtualDJ 8 Operation Guides: http://www.virtualdj.com/wiki/PDFManuals.html Denon DJ web-page: http://denondj.com/ Denon DJ Support Center: http://denondj.com/support Denon DJ MC4000 product page: http://denondj.com/products/view/mc4000 Denon DJ MC4000 User Guide: http://denondj.com/products/view/MC4000 Hardware Integration Department 2015 - ATOMIX PRODUCTIONS Reproduction of this manual in full or in part without written permission from Atomix Productions is prohibited.
