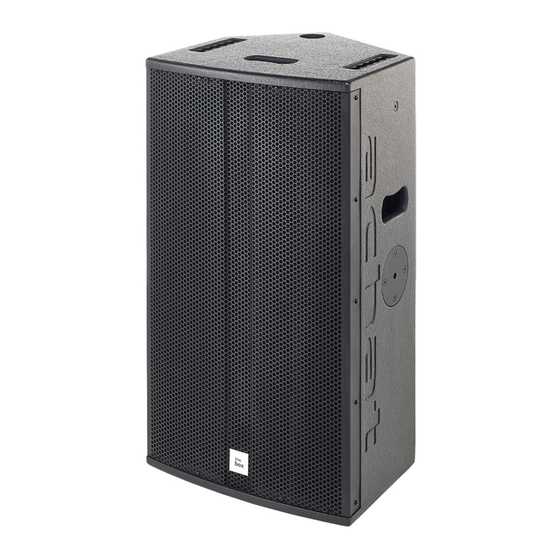

thomann the box pro Achat 110 MA MKII User Manual

Hide thumbs Also See for the box pro Achat 110 MA MKII:
Table of Contents

Advertisement

Quick Links

Download this manual
Achat 110 MA MKII
Achat 112 MA MKII
Achat 115 MA MKII
Active Speaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the the box pro Achat 110 MA MKII and is the answer not in the manual?

Questions and answers

Related Manuals for thomann the box pro Achat 110 MA MKII

Summary of Contents for thomann the box pro Achat 110 MA MKII

  • Page 1 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 22.07.2022, ID: 498102, 498103, 498105 (V3)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 7 Safety instructions............................. 9 Features............................... 13 Installation..............................16 4.1 Tips on handling speakers......................18 4.2 Hanging the speaker box......................19 4.3 Mounting bracket..........................
  • Page 4 Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Symbols And Signal Words

    General information Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 8 General information Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 10 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. WARNING! Consequences of faulty mounting Faulty mounting may lead to lethal injuries or property damage.
  • Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Fire hazard due to exceedance of the maximum current The device can power other devices of identical construction. The current consumption of all other devices connected in series must not exceed the values indicated in the technical specifications.
  • Page 12 Safety instructions NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains.

  • Page 13: Features

    Features Features Achat 110 MA MKII Special features of the device: Active 2-way full-range speaker box with built-in crossover 10 inch Ferrit woofer and 1 inch compression driver (woofer with 3 inch voice coil) Output power: 140 W RMS, 550 W Peak 2 ×...
  • Page 14 Features Achat 112 MA MKII Special features of the device: Active 2-way full-range speaker box with built-in crossover 12 inch Ferrit woofer and 1.75 inch mid / high speaker (woofer with 3 inch voice coil) Output power: 350 W RMS, 1400 W Peak 2 ×...
  • Page 15 Features Achat 115 MA MKII Special features of the device: Active 2-way full-range speaker box with built-in crossover 15 inch woofer and 3 inch Ferrit mid / high speaker Output power: 350 W RMS, 1400 W Peak 2 × XLR / 1/4" jack combo mic / line input 1 ×...

  • Page 16: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 17 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field.

  • Page 18: Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.

  • Page 19: Hanging The Speaker Box

    Installation 4.2 Hanging the speaker box To hang the speaker box on special mounting devices (aka ‘flying’), the top of the housing of Achat 112 and Achat 115 MA MKII offer built-in Aeroquip or fly tracks. In these tracks safety eyelets (double studs) can be screwed or latched.

  • Page 20: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Achat 110 MA MKII 1 [STANDBY | CONDITION] Slide switch to enable or disable the power saving mode. If the speaker box is in power save mode and receives no signal for 60 minutes, it switches to standby mode.
  • Page 21 Connections and operating elements 5 [MIX OUT] Line output for the mixed input signal from both channels. 6 [POWER ON/OFF] Use this mains switch to turn the device on or off. 7 [INPUT] Power Twist connector for powering the device. 8 [OUTPUT] Power Twist connector for powering another device.
  • Page 22 Connections and operating elements 12 [POWER] This LED lights up when the device is turned on. 13 [SIG/PEAK] This LED flickers or lights up green when a signal is present in at least one of the two channels. If the colour changes to red, this indicates that the permissible input level has been exceeded.
  • Page 23 Connections and operating elements Achat 112 & 115 MA MKII 1 [PEAK] This LED indicates that the permissible input level has been exceeded. Then reduce the volume in the relevant channel. 2 [BASS BOOST | FLAT | 120Hz HPF] Preset switch [BASS BOOST]: Increasing the low frequencies.
  • Page 24 Connections and operating elements 7 [INPUT] Power Twist connector for powering the device. 8 [OUTPUT] Power Twist connector for powering another device. 9 [CH1 IN | CH2 IN] Signal input, designed as XLR / ¼" jack combo socket. 10 [LINE - MIC] Switch for toggling the sensitivity of the respective input between microphone and line level.

  • Page 25: Technical Specifications

    Technical specifications Technical specifications Achat 110 MA MKII Speaker 1× 10" ferrite woofer, 1" compression driver Input connections Mic/Line 2 × XLR / 1/4" jack combo socket Power supply 1 × lockable input socket (Power Twist) Input sensitivity Line 1 V (RMS) ± 10 % 20 mV ±...
  • Page 26 Technical specifications Signal-to-noise ratio LF ≥88 dB (630 Hz, typical), HF ≥75 dB (6,3 kHz, typical) Sound pressure level (SPL), max. 120 dB Dispersion angle (H × V) 90° × 60° Power consumption 13.5 W ± 3 W (static) Operating supply voltage 100 - 240 V 50/60 Hz Fuse...
  • Page 27 Technical specifications Frequency response Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...
  • Page 28 Technical specifications Achat 112 MA MKII Speaker 1× 12" ferrite woofer, 1,75" compression driver Input connections Mic/Line 2 × XLR / 1/4" jack combo socket Power supply 1 × lockable input socket (Power Twist) Input sensitivity Line 1 V (RMS) ± 10 % 20 mV ±...
  • Page 29 Technical specifications Dispersion angle (H × V) 60° × 40° (rotatable horn) Power consumption 16.5 W ± 3 W (static) Operating supply voltage 100 - 240 V 50/60 Hz Fuse 3.5 mm × 10 mm, 5 A, 250 V, slow-blow Dimensions (W ×...
  • Page 30 Technical specifications Frequency response Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...
  • Page 31 Technical specifications Achat 115 MA MKII Speaker 1× 15" ferrite woofer, 3" compression driver Input connections Mic/Line 2 × XLR / 1/4" jack combo socket Power supply 1 × lockable input socket (Power Twist) Input sensitivity Line 1 V (RMS) ± 10 % 20 mV ±...
  • Page 32 Technical specifications Dispersion angle (H × V) 60° × 40° Power consumption 16.5 W ± 3 W (static) Operating supply voltage 100 - 240 V 50/60 Hz Fuse 3.5 mm × 10 mm, 5 A, 250 V, slow-blow Dimensions (W × H × D) 436 mm ×...
  • Page 33 Technical specifications Frequency response Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...
  • Page 34 Technical specifications Further information Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII (item no. 498103) (item no. 498102) (item no. 498105) Design Standard Standard Standard Monitor inclination Simultaneous inputs Mic Preamp Tone control / ch. Master tone control Bluetooth Play USB player Bluetooth-Control...
  • Page 35 Technical specifications Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII (item no. 498103) (item no. 498102) (item no. 498105) Housing Wood Wood Wood Colour Black Black Black Suitable for 100 V Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...

  • Page 36: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 37 Notes Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...
  • Page 38 Notes Achat 110 MA MKII Achat 112 MA MKII Achat 115 MA MKII Active Speaker...
  • Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
