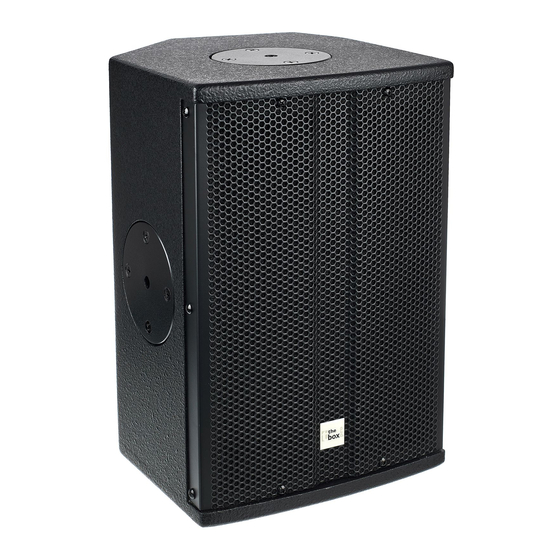

- Page 1 Achat 108 CX passive speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 16.08.2021, ID: 214524 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 11 Installation..............................12 4.1 Tips on handling speakers......................14 4.2 Connections............................15 Technical specifications........................17 Protecting the environment...................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. passive speaker... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 8 General information Warning signs Type of danger Warning – danger zone. passive speaker...
-
Page 9: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
-
Page 11: Features
Features Features Special features of this powerful coaxial neodym speaker box: Connections: 2 lockable NL4 sockets (1+/1–) Rigging points M10 Speaker pole mounting flange Optional vertical mounting bracket available Black textured coating Achat 108 CX... -
Page 12: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 13 Installation NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
-
Page 14: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 15: Connections
Installation 4.2 Connections 1 [INPUT] Lockable NL4 connector for signal input (1+/1–) achat 108 CX 2 [THRU] Lockable NL4 output connector (1+/1–) to connect another speaker Power rating 140W RMS 560W PEAK Impedance 8 Ohm SPL IW/Im 93 dB Connectors 2xNL4 1+/1- Weight ö... - Page 16 Installation NL4 mounting connectors for The adjoining figure shows the pin assignment of the lockable NL4 panel connectors. speaker connections passive speaker...
-
Page 17: Technical Specifications
Technical specifications Technical specifications 1 × 8" low/mid speaker, 1" mid-high speaker Speaker Input connections 1 × lockable NL4 socket (1+/1–) Output connections 1 × lockable NL4 socket (1+/1–) Frequency range 80 Hz … 20 kHz Load capacity 140 W (RMS), 560 W (peak) 8 Ω... - Page 18 Technical specifications Further information Construction standard Monitor inclination Colour Black passive speaker...
- Page 19 Technical specifications 124 mm 64,6 mm 121,7° 158,3° 130° 130° 124 mm 248 mm 75 mm Achat 108 CX...
-
Page 20: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 21 Notes Achat 108 CX...
- Page 22 Notes passive speaker...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
