Summary of Contents for RAMSET JET

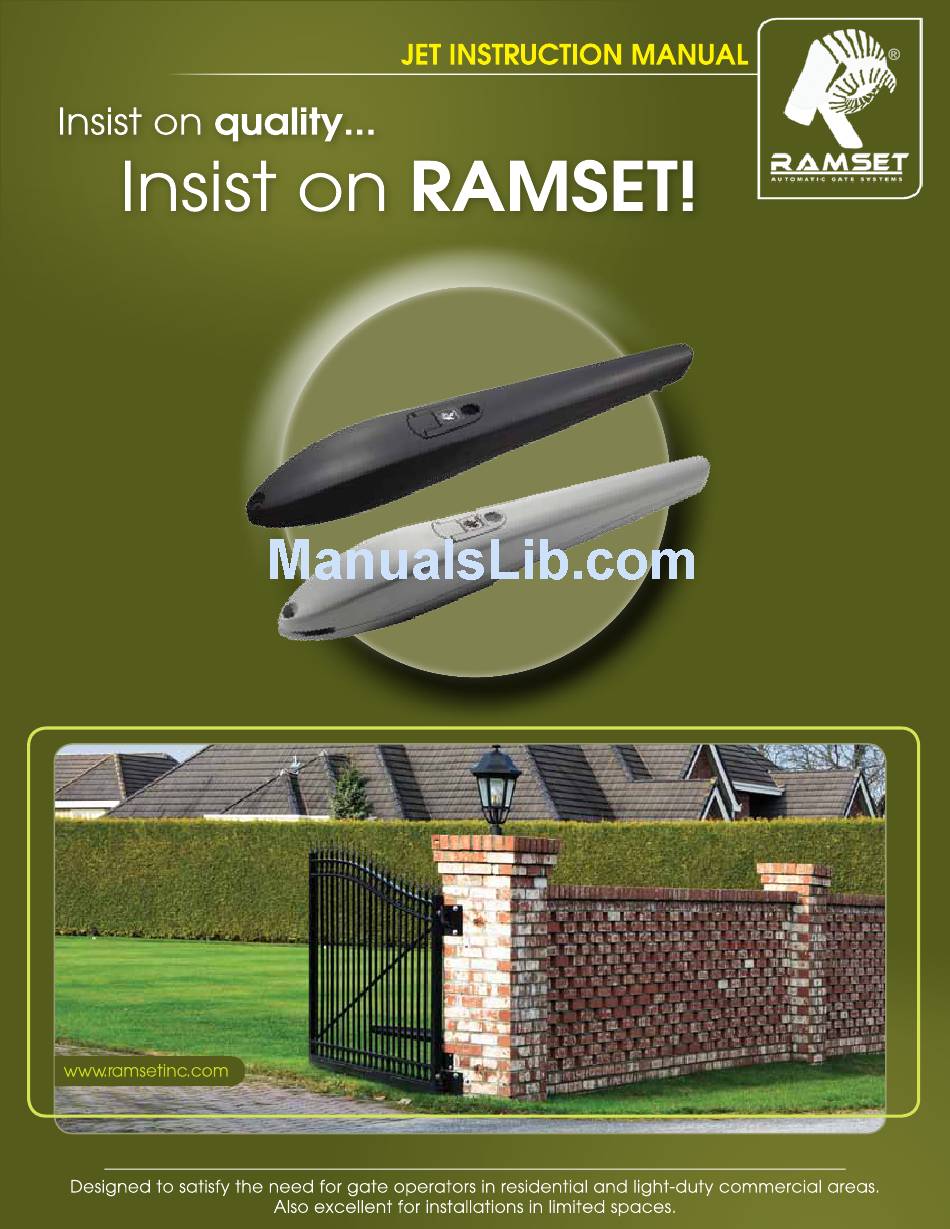

- Page 2 www.ramsetinc.com...
-
Page 3: Table Of Contents
Radio Transmitter Programming Procedure ..................17 Adjustable Slow Down Learning Procedure ..................17 Main Block Terminal Hookup......................18 Ramset Optional Accessories ......................19 Important Information for The Homeowner..................20 Gate Entrance Safety Precautions ....................21 Do not install this gate operator if you do not have experience or appropriate training with gate operators. -
Page 4: Responsibilities Of Installers And Technicians
• MAKE SURE TO ELIMINATE ANY PINCH POINTS ExISTING ON THE INSTALLATION. (ie. ROLLERS, ARMS…etc. ) • RAMSET GATE OPERATORS MUST BE INSTALLED BY A TRAINED TECHNICIAN. SAFETY DEvICES • REMOVE OR PROTECT ALL PINCH POINTS FROM THE GATE OPERATOR. -
Page 5: Important Safety Requirements By Ul Standards
RAMSET IMPORTANT SAFETY REQUIREMENTS BY UL STANDARDS Prior to installation, the following must be g) The stop and/or reset button must be located in the line- observed: (per UL 325.56.8.4). of-sight of the gate. Activation of the reset control shall not cause the operator to start. -
Page 6: Classes Of Vehicular Gate Operators
RAMSET CLASSES OF vEhICULAR GATE OPERATORS vehicular horizontal slide-gate operator (or system) - A vehicular gate operator (or system) that controls a gate which slides in a horizontal direction that is intended for use for vehicular entrance or exit to a drive, parking lot, or the like. -
Page 7: General Specifications
POWER FAILURE RELEASE: Hand Lever Release or Battery Back Up OvERALL DIMENSIONS: H 4” L 32” W 4” ShIPPING WEIGhT: jet Arm: 22 lbs / Star Control Board: 22 lbs Do not exceed the specifications. The warranty on your unit will be void if the WARNING installation exceeds the recommended specifications. -
Page 8: Positive Stops And Emergency Release
EMERGENCY RELEASE The emergency release handle is located on the top of the jet arm. Insert the key into the emergency release handle and turn it in order to unlock the release handle. The release handle can now be raised in order to disengage the operator (see figure A). -
Page 9: Gate Operator Installation
Level Line CAUTION: To avoid damage to gate and gate operator, CAUTION: Weld the Jet bracket onto a solid frame member across the full length of the gate. 1 3/4” be- do not weld Jet bracket directly onto gate pickets. -
Page 10: Standard & Compact Installation
RAMSET STANDARD INSTALLATION MaxiMuM gaTE sizE & wEighT 14’ @ 600 lbs –– 12’ @ 800 lbs Outside Figure 9 Property Steel Square Tubing Gate Rotation Center (hinge) Gate Closed g a t e 5” 5¼” Inside 28½” Property Top view COMPACT INSTALLATION MaxiMuM gaTE sizE &... -
Page 11: Installation Guideline
RAMSET INSTALLATION GUIDELINE 1) Measure the distance from the center point of the hinge to the rear bracket hole. 2) Use the table to determine the optimum measurement for B and attach the rear bracket to the post. 3) Mount the front bracket so that the hole of the front bracket is 28½” from the hole on the rear bracket... -
Page 12: Terminal Strip Connections
RAMSET TERMINAL STRIP CONNECTIONS STAR DIP SWITCHES 8–PARTIAL CONTROL BOARD 7–ONE-PASS 6–KICK-BACK 5–LOCK 4–PHO 2/ EDGE 3–TIMER Figure 12 2–RADIO CYCLE 1–MODE SPEED TIMER DELAY Factory jumper Factory jumpers POWER SWITCH Phantom To 120 VAC Loop (currently available) Vicky Exit Loop... - Page 13 RAMSET TERMINAL STRIP CONNECTIONS TERMINAL #1 – COMMON TERMINAL #9 – COMMON Low voltage common. Low voltage common. TERMINAL #2 – SAFETY TERMINAL #10 – PhO 2 Normally Closed. Becomes active with an open con- Normally Closed. Becomes active with an open con- tact to common.
-
Page 14: Trim Adjustments - Potentiometers
RAMSET TRIM ADJUSTMENTS – POTENTIOMETERS Figure 13 SPEED TIMER DELAY TRIM POTS TRIM POTS Use the “SPEED” trimmer to adjust the voltage with which the motor is powered during operation. Increasing/ decreasing this trimmer will affect the speed and torque with which the operator functions. -
Page 15: Dip Switch Configuration
The kickback feature is disabled. Keep this dipswitch off when using the jet operator. tion on the next command. The unit will open or close the gate depending on the Dip Switch 7 –... -
Page 16: Loop Installation
RAMSET LOOP INSTALLATION Ramset Gate Operators should always be installed with non-contact sensing devices such as Loop Detectors, Photo Eyes or the equivalent. A non-contact sensor (photoelectric sensor or equivalent) and a contact sensor (edge device or equivalent) is required on each individual installation to comply with UL325. -
Page 17: Photo Eye Installation
RAMSET LOOP INSTALLATION A non-contact sensor (photoelectric sensor or equivalent) and a contact sensor (edge device or equivalent) is required on each individual installation to comply with UL325. Figure 16 Top view 4’ 2’ 2’ 2’ 2’ Minimum Minimum Minimum Minimum 4’... -
Page 18: Master Slave Installation
RAMSET MASTER SLAvE INSTALLATION STAR DIP SWITCHES CONTROL BOARD 8–PARTIAL 7–ONE-PASS 6–KICK-BACK 5–LOCK 4–PHO 2/ EDGE Figure 18 3–TIMER 2–RADIO CYCLE 1–MODE SPEED TIMER DELAY Factory jumper Factory jumpers Motor 2 Motor 1 www.ramsetinc.com... -
Page 19: Programming Procedure
The jet will automatically proceed to a learning mode. It will open the gate for 5 seconds (see important note below) and close the gate all the way, then it will open the gate again all the way and close the gate. -
Page 20: Main Block Terminal Hookup
RAMSET MAIN BLOCK TERMINAL hOOKUP 21.22.23. TRANSFORMER 24.25. MOTOR 1 26.27. MOTOR 2 MOT2 MOT1 1. ANTENNA signal ANTENNA 2. ANTENNA sock 3. Opening limit switch - motor 1 FOP1 4. Closing limit switch - motor 1 FCC1 LIMIT SWITCH 5. -
Page 21: Ramset Optional Accessories
RAMSET RAMSET OPTIONAL ACCESSORIES RAMSET Stylo Remote Controls 4-Channel Radio Transmitter, Rolling Code, Small, Fire Box LCD-KP Sleek, black and Allows the fire department Chrome Design. Liquid Crystal Display-Keypad to open the gate in 1,024 Codes case of an emergency. -
Page 22: Important Information For The Homeowner
RAMSET Important InformatIon for the homeowner Ask your technician about all the features of our new Ramset operator. Safety devices, such as reversing loops, phantom loops, photo eyes, or miller edges must be installed on your gate before the operator may be used. Ask your technician which safety de- vices best suit your safety needs. -
Page 23: Gate Entrance Safety Precautions
RAMSET GATE ENTRANCE SAFETY PRECAUTIONS WARNING: 1. Never let children operate or play with gate controls. Keep the controls away from children. 2. The entrance is for vehicles only. Pedestrians should use a separate entrance. 3. Always keep people, children and objects away from the gate while the gate is in operation. No one should cross the area of a moving gate. - Page 24 9116 De Garmo Ave. Sun valley, CA 91352 Tel: (818) 504-2533 • Fax: (818) 504-1141 www.ramsetinc.com...
