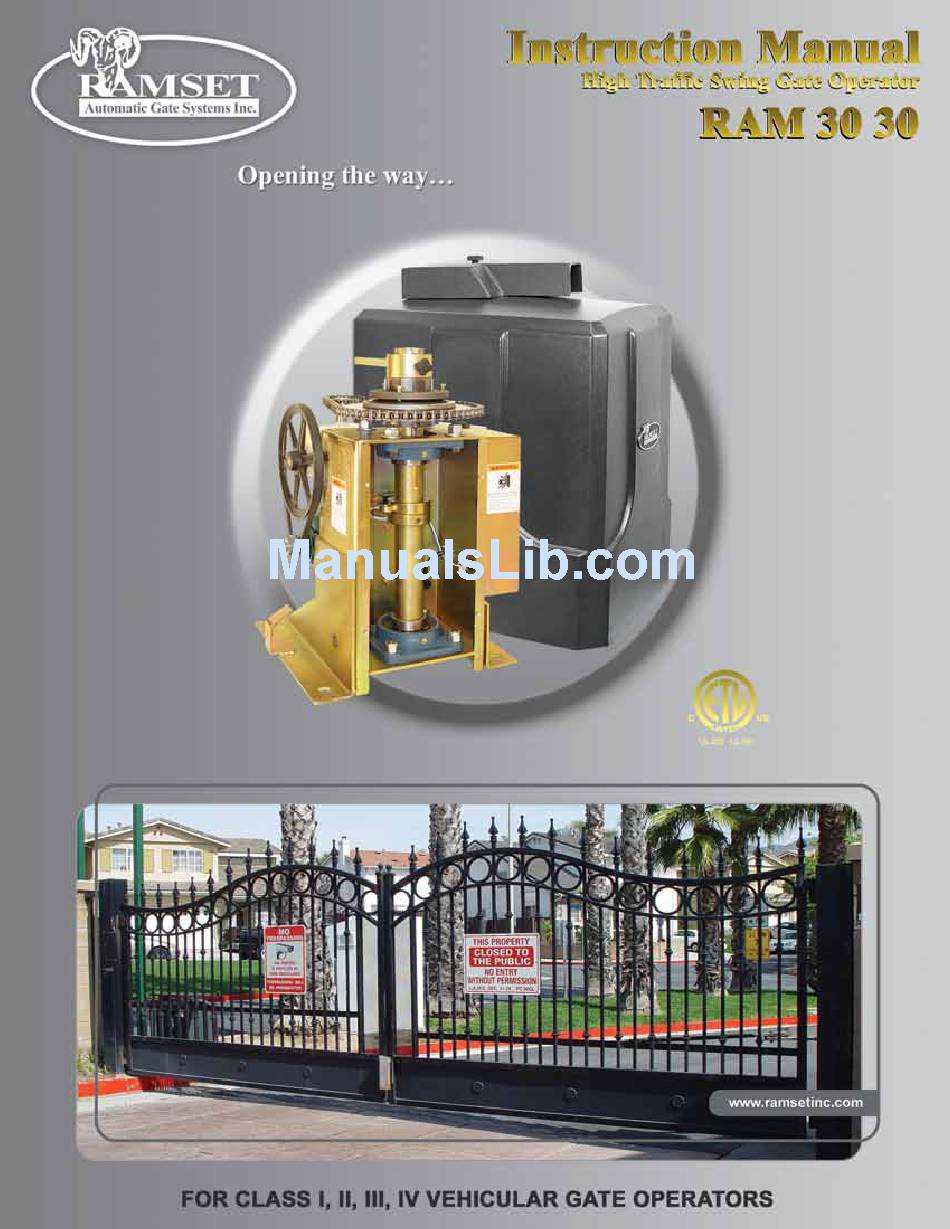

- Page 1 RAMSET www.ramsetinc.com...
- Page 2 RAMSET www.ramsetinc.com...
-
Page 3: Table Of Contents
Sensor Installation ..........................9 Pushbutton Controls & Master/Slave Installation ................10 Dip Switch Configuration ......................11-12 Terminal Strip Connections ......................13-14 Ramset “Intelligate” Control Board ....................15 Wire Board Connections........................16 Exploded View Parts Diagram ......................17 Bill of Materials ........................... 18-19 Gate Entrance Safety Precautions ....................20 Important Information for The Homeowner..................21... -
Page 4: Responsibilities Of Installers And Technicians
• MAKE SURE TO ELIMINATE ANY PINCH POINTS ExISTING ON THE INSTALLATION. (ie. ROLLERS, ARMS…etc. ) • RAMSET GATE OPERATORS MUST BE INSTALLED BY A TRAINED TECHNICIAN. SAFETY DEvICES • REMOVE OR PROTECT ALL PINCH POINTS FROM THE GATE OPERATOR. -
Page 5: Important Safety Requirements By Ul Standards
RAMSET IMPORTANT SAFETY REQUIREMENTS BY UL STANDARDS Prior to installation, the following must be g) The stop and/or reset button must be located in the line- observed: (per UL 325.56.8.4). of-sight of the gate. Activation of the reset control shall not cause the operator to start. -
Page 6: Classes Of Vehicular Gate Operators
RAMSET CLASSES OF vEhICULAR GATE OPERATORS vehicular horizontal slide-gate operator (or system) - A vehicular gate operator (or system) that controls a gate which slides in a horizontal direction that is intended for use for vehicular entrance or exit to a drive, parking lot, or the like. -
Page 7: General Specifications
RAMSET GENERAL SPECIFICATIONS MAXIMUM GATE SIZE & WEIGhT: 20’ @ 3000 lbs GATE TRAvELING SPEED: Approx 90° opening in 16 sec MOTOR: 3/4 Hp, 1 Hp DUTY CYCLE: Continuous OPERATING TEMPERATURE: -10º F to 160º F POWER FAILURE RELEASE: Knob Release or Battery Back Up OvERALL DIMENSIONS: H 27½”... -
Page 8: Installation Specifications
RAMSET INSTALLATION SPECIFICATIONS CONCRETE PAD CONSTRUCTION: Steel Square Tubing Outside Dimensions given for the pad are based on soil Property bearing shear of 2000 P.S.F. These figures may have to be adjusted depending on local soil conditions. 1. Construct form for mounting pad according... -
Page 9: Hookup Electrical Power - Gate Travel Adjustment
RAMSET hOOkUP ELECTRICAL POWER GATE TRAvEL ADJUSTMENT Figure 4 Outlet Leads Gate travel is adjusted by loosening the lim- Note: 15 amp wires connected to independent it Cams and adjusting them until proper gate breaker. travel has been achieved. STANDARD INSTALLATION FOR GATES FROM 8’ TO 16’ IN LENGTh Do not exceed the specifications. -
Page 10: Standard Installation For Gates From 16' To 20' In Length
RAMSET STANDARD INSTALLATION FOR GATES FROM 16’ TO 20’ IN LENGTh Steel Square Tubing Outside 16’ to 20’ Maximum Gate Length Property 50” Gate Closed Gate Rotation Supplied Bracket 24” Center (hinge) 42” 43 1/4” 33 1/4” 76 1/2” 32”... -
Page 11: Sensor Installation
RAMSET SENSOR INSTALLATION Ramset Gate Operators should always be installed with non-contact sensing devices such as Loop Detectors, Photo Eyes or the equivalent. A non-contact sensor (photoelectric sensor or equivalent) and a contact sensor (edge device or equivalent) is required on each individual installation to comply with UL325. -
Page 12: Pushbutton Controls & Master/Slave Installation
RAMSET PUShBUTTON CONTROLS Three pushbuttons are located under the dip switches for operation of the gate (see Figure 11). The opening, stop and closing buttons can be utilized to set limit switches and verify proper system operation when installing or servicing an operator. -
Page 13: Dip Switch Configuration
RAMSET DIP SWITCh CONFIGURATION Figure 13 “Intelligate” Control Board DIP SWITCH "A" Dip Switch "A" 1, 2 & 3; Dip Switch "B" 2; “PRE WARN” AUTOMATIC TIMER TO CLOSE GATE Used with JP2 “Relay Connections”: pins 7 & 8. ‘0’ is “OFF”... -
Page 14: Dip Switch Configuration
RAMSET DIP SWITCh CONFIGURATION DIP SWITCH "C" Dip Switch "C" 1; “SECURE CLOSE” Dip Switch "C" 5; “CLOSE DELAY” One second delay on the closing of the gate. Function: OFF Normal Operation Dip Switch "C" 6; “OPEN DELAY” ON When power is lost, then regained, control board One second delay on the opening of the gate. - Page 15 RAMSET TERMINAL STRIP CONNECTION Figure 14 RAM 30 30 RAM 30 30 3/4 Hp www.ramsetinc.com...
-
Page 16: Terminal Strip Connections
RAMSET normal operation. If triggered twice before TERMINAL STRIP CONNECTIONS reaching a limit switch, the alarm will sound for Terminal # 1 - COMMON: 6 minutes and the control board will not accept Low voltage common. any commands. After the 6 minutes the 24 VDC is... -
Page 17: Ramset "Intelligate" Control Board
RAMSET RAMSET “INTELLIGATE” CONTROL BOARD Introduction: Ramset’s “Intelligate” Control Board works VAC and 220 VAC single-phase applications. with Sliding, Swinging and Overhead vehicular Some of the functions of the Control Board gate operators. It is controlled by a program- are: 0 - 60 seconds automatic close timer, self mable microprocessor that reads and precisely adjusting E.R.D. -
Page 18: Wire Board Connections
Use with ILD-24s, Loop wires should be connected to this plug. JP4, JP5 & JP8 - Reverse, Exit & Phantom Sensor: Used with the Ramset ILD-24 plug-in loop detector. The Loop wires should be connected into the “LOOP INPUTS” plug. www.ramsetinc.com... -
Page 19: Exploded View Parts Diagram
RAMSET PARTS DIAGRAM Figure 16 www.ramsetinc.com... -
Page 20: Bill Of Materials
RAMSET BILL OF MATERIALS FOR: RAM 30-30 ITEM PART # PART DESCRIPTION 3/4 hP 1 hP 800-00-06 Chassis 800-02-08 Gear Reducer - Size 70, Ratio 60:1 800-04-12 Motor, Standard - 120VAC 3/4 HP 800-04-13 Motor, Standard - 220VAC 1HP 800-06-00 Sprocket - 1 1/8”... - Page 21 RAMSET BILL OF MATERIALS FOR: RAM 30-30 ITEM PART # PART DESCRIPTION 3/4 hP 1 hP 800-75-00 ARM ASSEMBLY 800-28-00 Arm, Metal Tubing - 1” x 2” x 32” 800-28-01 Arm, Metal Tubing - 1” x 2” x 42” 800-54-10 Bracket, Channel - 1 3/4”...
-
Page 22: Gate Entrance Safety Precautions
RAMSET GATE ENTRANCE SAFETY PRECAUTIONS WARNING Not following these instructions may cause severe injury or death to persons IMPORTANT SAFETY INSTRUCTIONS 1. Never let children operate or play with gate con- trols. Keep the controls away from children. 2. The entrance is for vehicles only. Pedestrians should use a separate entrance. -
Page 23: Important Information For The Homeowner
E.R.D. and battery back warranty extension card. Return the warranty card, up systems. via certified mail, to Ramset within 90 days of purchase: Warning signs must be placed on every gate in a highly visible area. -
Page 24: Troubleshooting Table
"EXIT" L.E.D. IS ALWAYS 1. Disconnect all accessories, including 'ON'. to the "Exit". plug-ins, using the "Exit" input. If problem persist, contact Ramset. 1. Faulty accessory connected 1. Disconnect all accessories, including "REV LOOP" L.E.D. to the "Rev Loop". ALWAYS 'ON'. -
Page 25: Ramset Optional Accessories
RAMSET RAMSET OPTIONAL ACCESSORIES Fire Box Allows the fire department to open the gate in the LCD-keypad case of an emergency. 1,024 Codes 5,112 Event Log LCD Display Post Mounts 7-Day Timer 1/4” angle iron flats. Time Zones 3/16” square tubing legs. - Page 26 9116 De Garmo Ave. Sun valley, CA 91352 Tel: (818) 504-2533 • Fax: (818) 504-1141 www.ramsetinc.com...
