Summary of Contents for RAMSET DC100

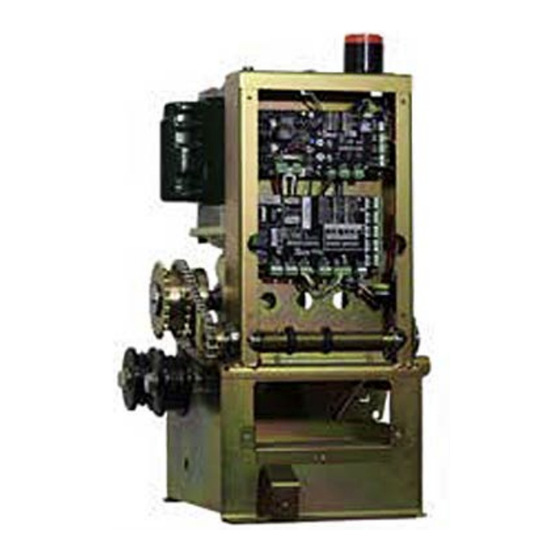

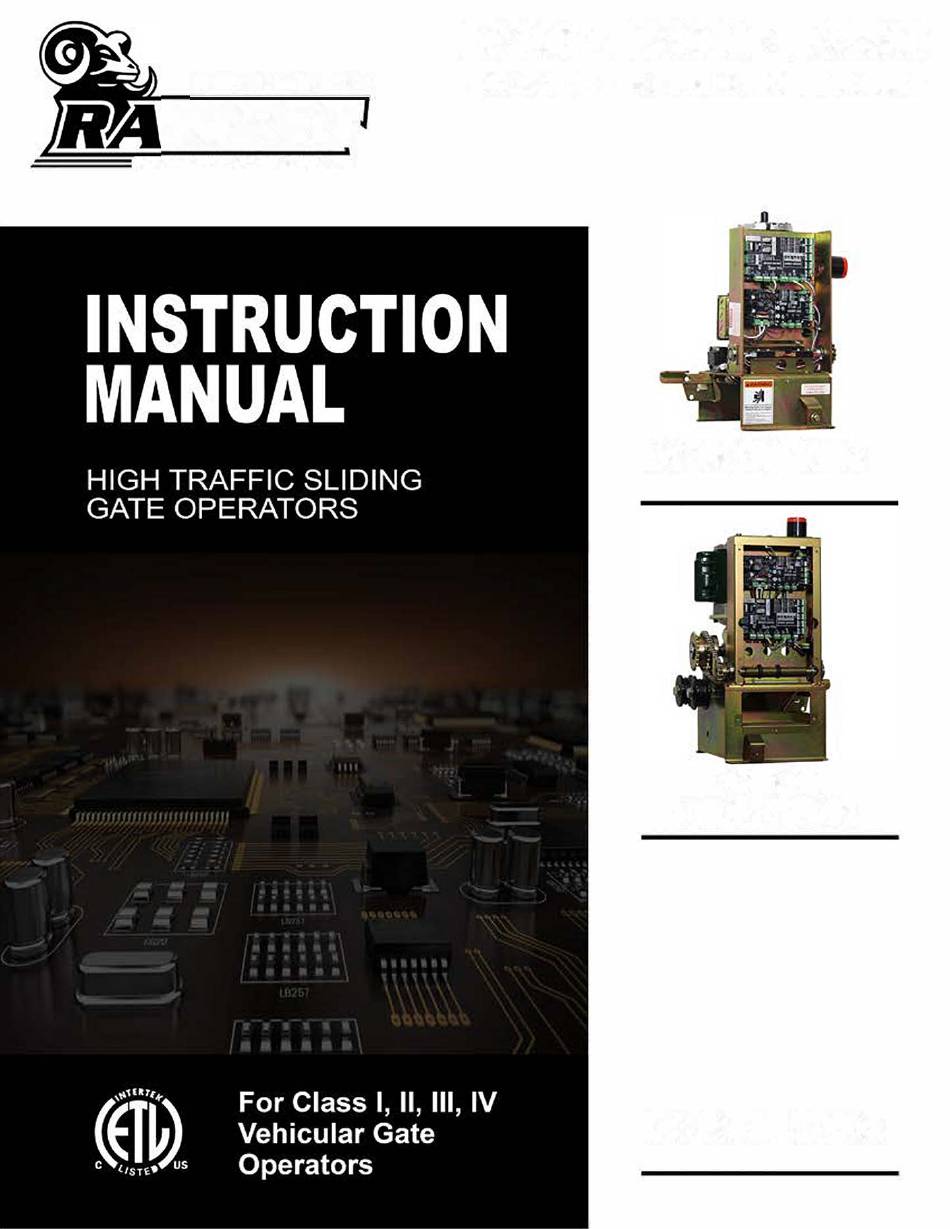

- Page 1 DC100 • DC1000 • DCSS00 DC SLIDE • INSTRUCTION MANUAL MADE IN THE USA MSEli' 'AUTOMATIC GATE SYSTEMS DC RAM 100s DC RAM 1 000s/5500s DC RAM 5700s www.RamsetStore.com | (800) 878-7829 | Sales@RamsetStore.com...
- Page 2 IMPORTANT SAFETY REQUIREMENTS BY UL STANDARDS a) Install the gate operator only when: Exception: Emergency access controls only accessi 1) The operator Is appropriate for the construc ble by author i zed personnel (e.g. fire, police, EMS) tion of the gate and the usage Class of the gate, may be placed at any location in the line-of-sight of 2) All openings of a horizontal slide gate are the gate.
- Page 3 RESPONSIBILITIES OF THE INS TALLER/ GATE TECHNICIAN _. RAM SET GATE OPERATORS SHOULD ONLY BE INSTALLED, MAINTAINED OR SERVICED BY A QUALIFIED, EXPERIENCED GATE TECHNICIAN WITH THE APPROPRIATE TRAINING. READ & UNDERSTAND THE ENTIRE INSTRUCTION MANUAL BEFORE STARTING ANY INSTALLATION USE THE PROPER OPERATOR.
- Page 4 • Read and understand your warranty certificate. • Ramset's warranty only covers the operator against manufacturer's defects. • Ask the installer/ technician what the warranty on their service is. (Labor is not covered under Ramset's warranty). • All Warranty issues & claims must be redeemed by a gate technician.
-
Page 5: Ul Gate Classifications
UL GATE CLASSIFICATIONS CLASS I - Residential Vehicular Gate Operator -A vehicular gate operator (or system) intended for use in garages or par1<ing areas associated with a residence of one-to four single families. CLASS II • Commercial I General Access Vehicular Gate Operator• A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more single units), hotels, garages, retail stores, or other buildings accessible by or servicing the general public. - Page 6 ENTRAPMENT & SAFETY PROTECTION ALL ENTRAPMENT AREAS NEED TO BE PROTECTED BY A &WARNING MONITORED ENTRAPMENT PROTECTION DEVICE. • Every slide gate operator requires a minimum of 2 entrapment protection devices in both directions. One each direction is covered by the enherent ERO system (Type Al. Therefore, at least one additional photo eye, edge sensor or equivafent is required to be added, by the installer, in each direction.
- Page 7 ENTRAPMENT PROTECTION AREA �WARNING MAKE SURE ALL ENTRAPMENT ZONES ARE PROTECTED BY APPROVED ENTRAPMENT PROTECTION DEVICES. ENTRAPMENT ZONE: Locations between a moving gate and a counter opposing edge or surface where entrapment is possible up to 6ft. above grade. Such locations occur if during any point in travel the gap between a moving gate and fixed counter opposing edges or surfaces are less than 16 inches.
- Page 8 LOGIC AC DRIVER BOARD LAYOUT L.E.D. & • SAFETY -Safety I Reversing device is being triggered. • FIREBOX -Fire box device is being triggered. • EXIT - Exit device is being triggered. • PHANTOM -Phantom device is being triggered. • RADIO -Radio device is being triggered •...
-
Page 9: Push Buttons
LOGIC BOARD DIP SWITCHES PUSHBUTTONS & DIP SWITCH 1 - FULL REVERSE ERO DOWN Normal Operation. If an ob.struclion sensed, the gate will stop and reverse for 1 second. If an obstruction is sensed: Opening• Gate will stop and reverse for 1 sec. Closing •... -
Page 10: Entrapment Protection
ENTRAPMENT PROTECTION DIP SWITCHES & PLUGS ENTRAPMENT PROTECTION NO DEVICE CONNECTED NO DEVICE CONNECTED PHOTO EYE ON CLOSING EDGE ON CLOSING PHOTO EYE ON OPENING EDGE ON OPENING PHOTO EYE ON OPEN I NG & CLOSING EDGE ON OPENING & CLOSING DIP SWITCH 'D &... - Page 11 LOGIC BOARD PLUGS REVERS I NG LOOP • S.afety IOop d•ttetors • • Non.monitoted edgfl unsors & photo eytt FIREBOX PHANTOM INStOE MAG/SOL SEC XCOM EXIT RADIO OETECTOR • Knox type • ExJI loop • Phantom - Receivers • Magnetic lock -Secondary driver -Padlo<klyp<...
- Page 12 PRIMARY/ SECONDARY Bl-PARTING GATES • Connect a 3-wire, shielded cable (not supplied), between 'SEC XCOM' on the Logic Board in the Primary Unit and 'XCOM' on the AC Driver Board in the Secondary Unit. • The Primary/ Secondary wires should be ran in a conduit separate from power. SECONDARY AC DRIVER BOARD PRIMARY...
- Page 13 (M.E.P.) MONITORED ENTRAPMENT PROTECTION QUICK SETUP GUIDE #.\! , IMPORTANT: MAKE SURE THE M.E.P. DEVICE YOU ARE USING IS A UL325 !.,U MONITORED ENTRAPMENT DEVICE USING THE 10K METHOD 1. Slide Gate Requirements: a. Closing - Minimum 1 photo eye or edge sensor. b.
