E N G L I S H

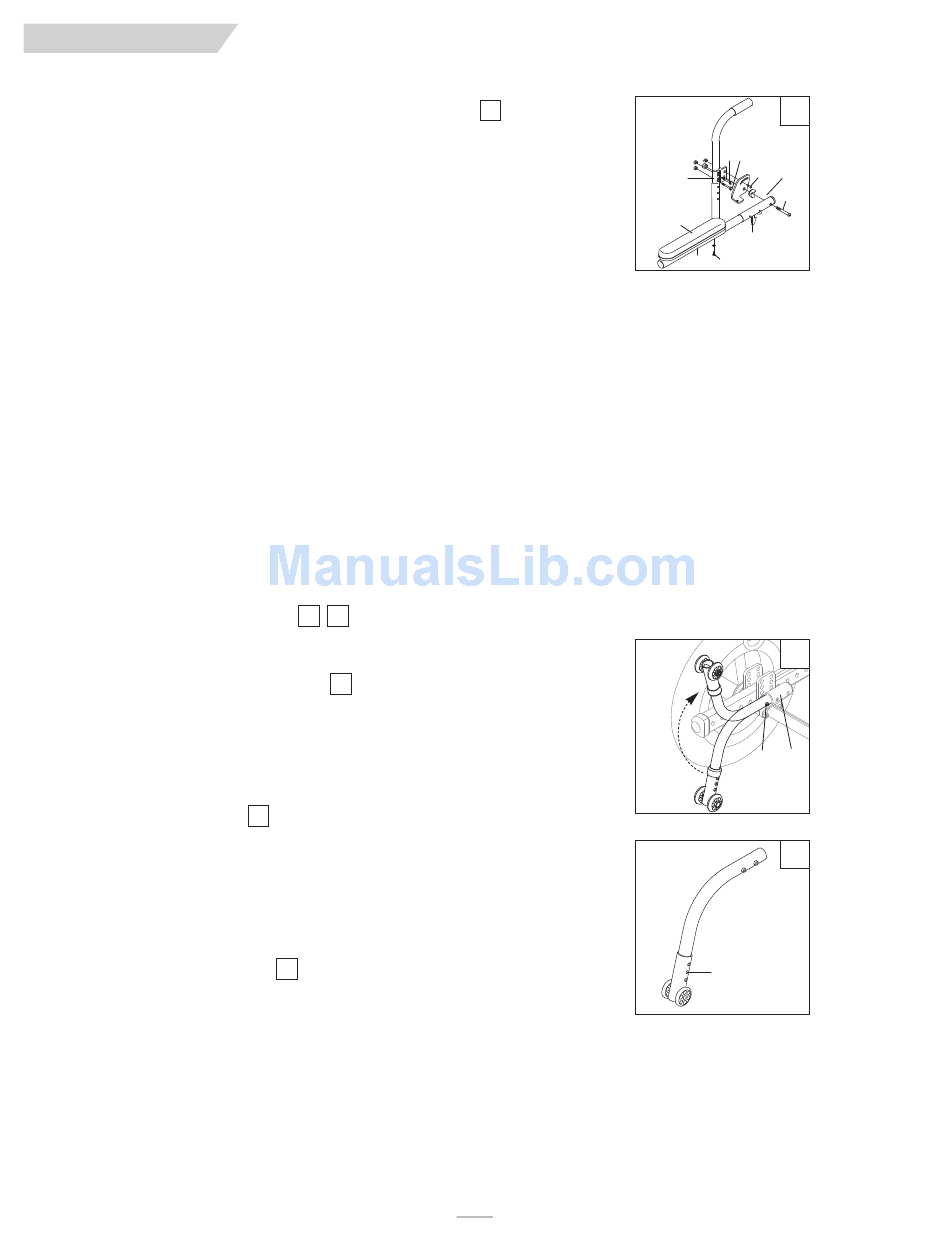

I. ADJUSTABLE LOCKING FLIP-UP ARMRESTS
1. Flip up and down
a. Release the upper securing lever (B).
b. Flip the armrest back, it remains attached to the back post.
c. Move armrest down into place.
d. The lever (B) locks itself in position automatically.
2. Height Adjustment
a. Loosen bolts (C, D) and remove flip-back tube.
b. Loosen bolts (E, F) and remove clamp (J).
c. Move the clamp (J) up or down to the desired position.
d. Tighten bolts (E, F).
e. Install the flip-back tube back in place and tighten bolts (C,D).
f. Repeat the process for the other armrest.
3. Angle-Adjustment
a. Loosen bolt (D).
b. Set armrest at desired angle using preset holes in armrest angle plate.
c. Tighten bolt.
4. Length-Adjustment (optional)
a. Remove foam grip or armpad (A) from armrest.
b. Loosen screw (G) in the adjustable flip-up tube.
c. Reposition the sleeve (I) at the desired length.
d. Re-tighten the screw (G).
e. Put foam grip or armpad back in place.
J. ANTI-TIP TUBES- REAR
Anti-tip tubes are recommended for all wheelchairs.
NOTE– Use a torque setting of 120 in.-lbs. When setting-up anti-tip tubes.
1. Inserting Anti-Tip Tubes Into Receivers
a. Press the rear anti-tip release pin (A) on the anti-tip tube so that both release pins are
drawn inside.
b. Insert the anti-tip tube into the receiver (B).
c. Turn the anti-tip tube down until front release pin protrudes through the rear receiver
mounting hole.
d. Insert second anti-tip tube the same way.
2. Turning Anti-Tip Tubes Up
Turn anti-tip tubes up when being pushed by attendant, overcoming obstacles or climbing
curbs.
a. Press the rear anti-tip tube release pin (A).
b. Hold pin in and turn anti-tip tube up (C).
c. Release pin.
d. Repeat with second anti-tip tube.
e. Remember to return anti-tip tubes to down position after completing maneuver.
3. Adjusting Anti-Tip Tube Wheel
The anti-tip tube wheels may have to be raised or lowered to achieve proper ground clear-
ance (1-1/2" to 2").
a. Press the anti-tip wheel release pin (D) so that the release pin is drawn inside.
b. Raise or lower to one of the three or six pre-drilled holes.
c. Release pin (D).
d. Adjust the second anti-tip tube wheel the same way. Both wheels should be at exactly
the same height.
113373 Rev. C
15
16
15
15
16
14
Adjustable Locking Flip-Up
A. Armrest Pad
B. Upper Securing Lever
H. Flip-back tube
I. Sleeve
J. Clamp
16
IX. SET-UP & ADJUSTMENT
14
EF
H
D
J
C
A
B
G
I
15
C
B
A
16
D
