E N G L I S H

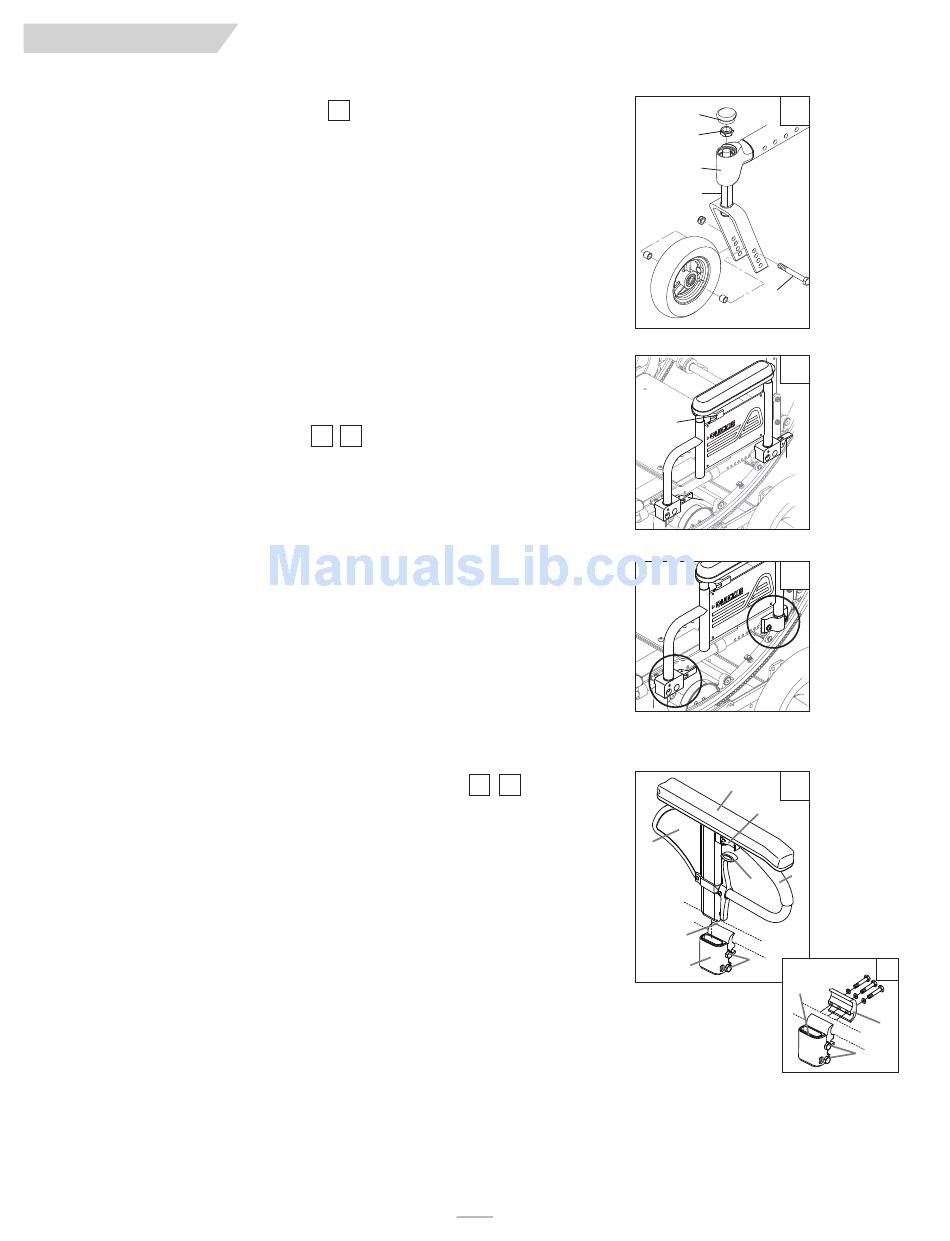

F. CASTER/FORKS ASSEMBLY
1. Installation
a. Remove dust cover (A) from caster housing. Pry cover off using a back and forth motion.
b. Caster assembly holds one nut (B) and one washer (immediately below the nut).
Remove nut and washer.
c. Insert caster stem (C) into caster housing (D) and place washer on stem.
d. Replace nut (B) on caster stem and tighten until all play is removed; then loosen approx-
imately 1/8 turn, allowing for free rotation.
e. Replace dust cover to caster housing.
2. Height Adjustment
a. Loosen and remove bolt (F).
b. Set axle at desired height using pre-set holes in the fork.
c. Replace and tighten bolt.
d. Repeat on other side.
NOTE– The frame must be kept horizontal when height is adjusted. Refer to matrix in the ordering guide
for proper setting. Refer to Section S-7 for rear axle height adjustment.
G. DUAL-POST ARMRESTS
1. Installation or Removal
a. The assembly is held securely in place when the securing lever (A) is facing outside.
b. Pull front securing lever (A) forward to release.
c. Insert or remove armrest.
d. Return securing lever to locked position.
2. Height-Adjustment (optional)
a. Release the upper securing lever (C).
b. Set armrest at desired height.
c. Return securing lever to locked position.
d. Move armrest up or down to allow armrest to snap into place.
3. Flip Back (optional)
a. Release the front securing lever only (A).
b. Flip the armrest back, it remains attached to the rear receiver.
c. To detach armrest completely pull rear securing lever (B) up.
d. Move armrest down into place.
e. Return securing lever to locked position.
H.HEIGHT-ADJUSTABLE ARMRESTS
1. Installation
a. Slide the outer armpost into the receiver mounted to the wheelchair frame.
b. The armrest will automatically lock into place.
2. Height Adjustment
a. Rotate release lever to second stop.
b. Slide armrest pad up or down to desired height.
c. Return lever to locked position against armpost.
d. Push arm pad until upper armpost locks firmly into place.
3. Removing Armrest
a. Rotate release lever to first stop and remove the armrest.
4. Replacing Armrest
a. Slide armrest back into receiver.
b. Return release lever to locked position against armpost.
5. Adjusting Armrest Receiver Fit
To tighten or loosen the fit of the outer armpost in the receiver:
a. Loosen the bolts on the sides of the receiver (9).
b. With the armrest in the receiver, squeeze the receiver to achieve the desired fit.
c. Tighten the four bolts.
10
11 12
13
(optional)
15
IX. SET-UP & ADJUSTMENT
C
Flip-up receivers
Std receivers
13a
6
1
7
1. Outer armpost
2. Release Lever–
Height
3. Release lever
4. Armrest pad
5. Transfer bar
6. Side panel
7. Receiver
8. Clamp
9. Receiver adjustment
hardware
10
A
B
D
C
F
11
B
A
12
4
13
2
5
3
9
7
9
13a
8
