K. DUAL-POST ARMRESTS
1. Installation or Removal
a. The assembly is held securely in place when the securing lever (A) is facing outside.
b. Pull front securing lever (A) forward to release.
c. Insert or remove armrest.
d. Return securing lever to locked position.
2. Height-Adjustment (optional)
a. Release the upper securing lever (C).
b. Set armrest at desired height.
c. Return securing lever to locked position.
d. Move armrest up or down to allow armrest to snap into place.
3. Flip Back (optional)
a. Release the front securing lever only (A).
b. Flip the armrest back, it remains attached to the rear receiver.
c. To detach armrest completely pull rear securing lever (B) up.
d. Move armrest down into place.
e. Return securing lever to locked position.
L. HEIGHT-ADJUSTABLE ARMRESTS (optional)
1. Installation
a. Slide the outer armpost (1) into the receiver(7) mounted to the wheelchair frame.
b. The armrest will automatically lock into place.
2. Height Adjustment
a. Rotate release lever (2) to second stop.
b. Slide armrest pad (4) up or down to desired height.
c. Return lever (2) to locked position against armpost.
d. Push arm pad down until upper armpost locks firmly into place.
3. Removing Armrest
a. Grip release lever (3) and pull up to remove the armrest.
M. ADJUSTABLE LOCKING FLIP-UP ARMRESTS
1. Flip up and down
a. Release the upper securing lever (2).
b. Flip the armrest back (1), it remains attached to the back post.
c. Move armrest down into place.
d. The lever (2) locks itself in position automatically.

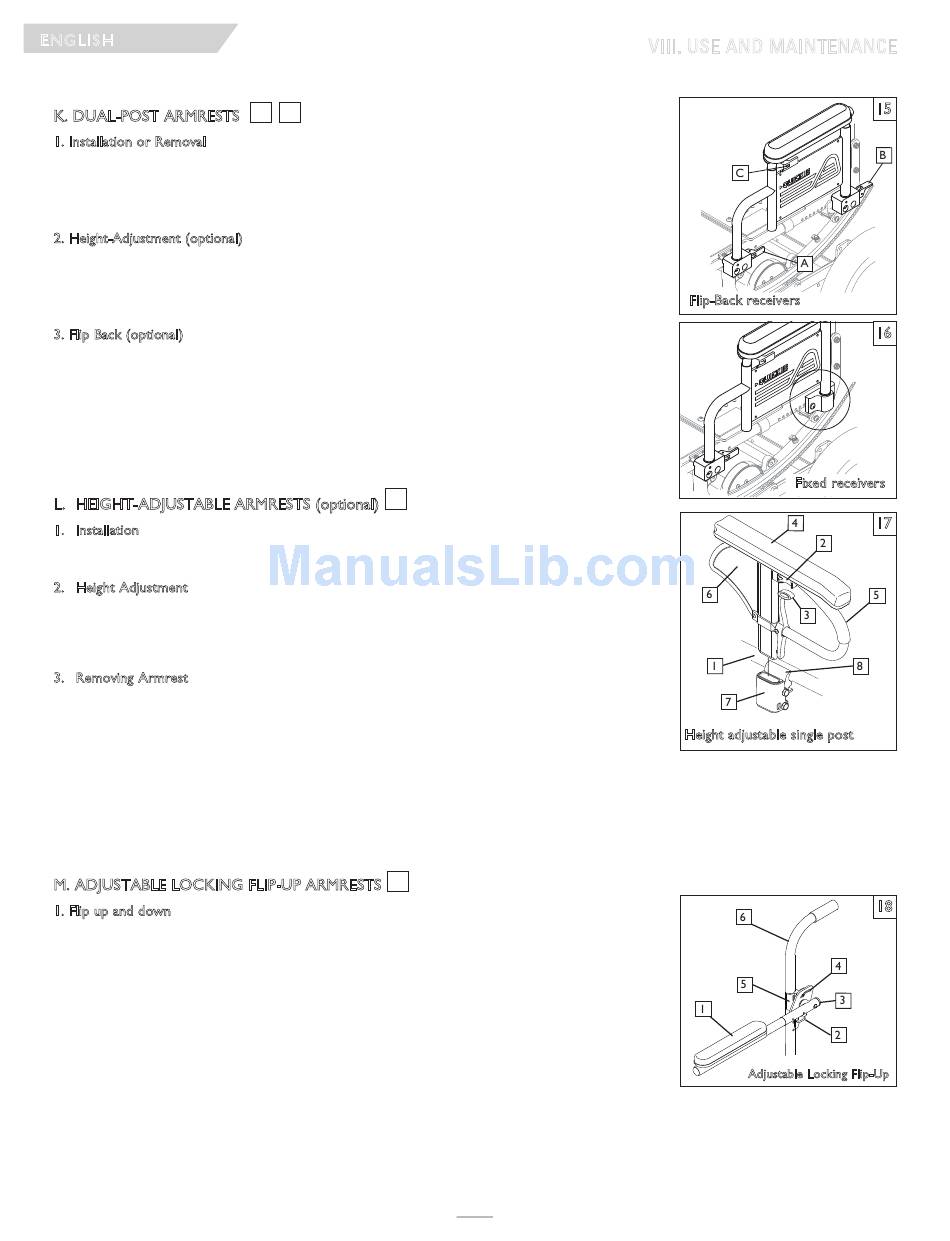

15 16
17
18
15
VIII. USE AND MAINTENANCE
Flip-Back receivers
Fixed receivers
Height adjustable single post
1. Outer armpost
2. Release Lever Height
3. Release lever
4. Armrest pad
5. Transfer bar
6. Side panel
7. Receiver
8. Clamp
Adjustable Locking Flip-Up
1. Armrest Pad
2. Upper Securing Lever
3. Flip-back tube
4. Angle Adjust Bracket
5. Clamp
6. Back cane
15
16
17
18
