A G
CCESS ATEWAY
ETH (1-4):
1.
The rear panel supports four auto-sensing RJ-45 ports and all ports can be auto-switched
to MDI-II connections. The LAN ports are used for linking hosts or other network
devices.
WAN: One Ethernet port used for linking to an ISP connection.
2.
Reset Button:
3.
The Wireless Connect Gateway has a reset button at the rear panel of the device. Use this
control button to reset the system back to factory defaults.
Power Jack: Used to connect the external power supply with the Wireless Connect
4.
Gateway.

Technical Specifications

Hardware Specifications

Network Specification
IEEE802.3 10BaseT Ethernet

IEEE802.3u 100BaseTX Fast Ethernet

IEEE802.11b/g/n Wireless LAN

ANSI/IEEE 802.3 NWay auto-negotiation

Wi-Fi Compatible

Connectors
Four LAN Ports (10BaseT/100BaseTX Auto cross-over)

One WAN Port (10BaseT/100BaseTX Auto cross-over)

Introduction

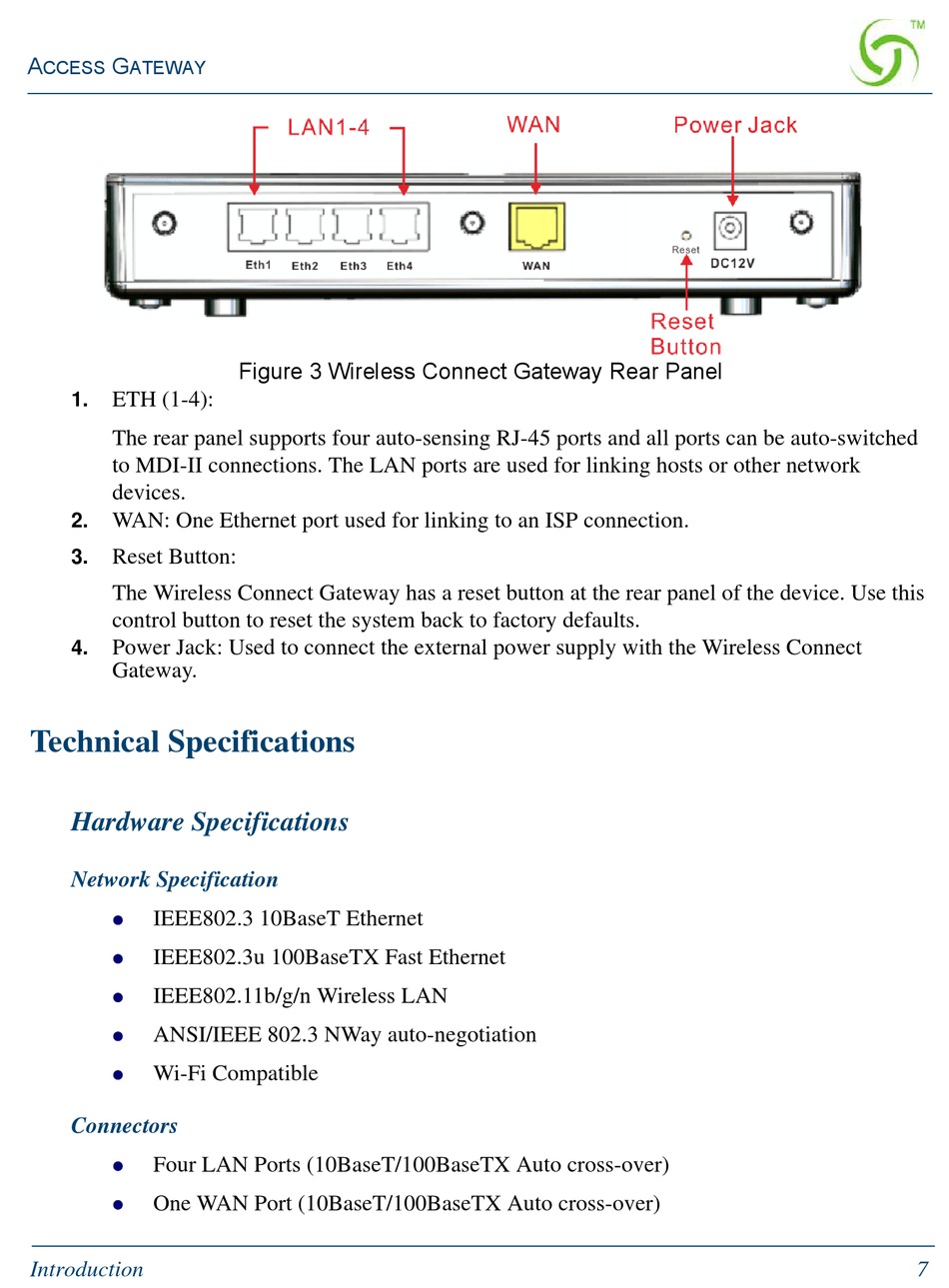

Figure 3 Wireless Connect Gateway Rear Panel
7
