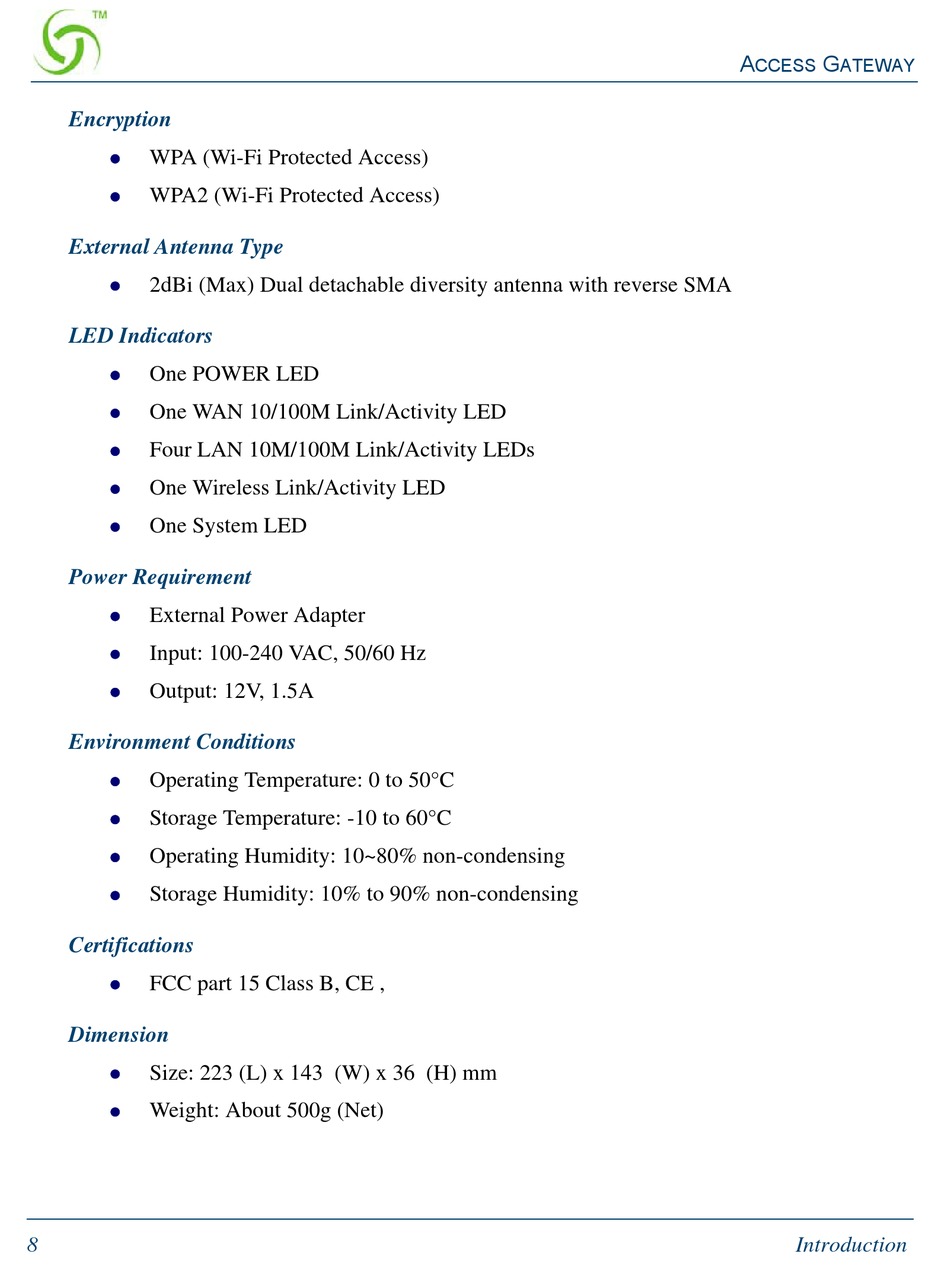

Nomadix NWCG User Manual page 10

Encryption
WPA (Wi-Fi Protected Access)

WPA2 (Wi-Fi Protected Access)

External Antenna Type
2dBi (Max) Dual detachable diversity antenna with reverse SMA

LED Indicators
One POWER LED

One WAN 10/100M Link/Activity LED

Four LAN 10M/100M Link/Activity LEDs

One Wireless Link/Activity LED

One System LED

Power Requirement
External Power Adapter

Input: 100-240 VAC, 50/60 Hz

Output: 12V, 1.5A

Environment Conditions
Operating Temperature: 0 to 50°C

Storage Temperature: -10 to 60°C

Operating Humidity: 10~80% non-condensing

Storage Humidity: 10% to 90% non-condensing

Certifications
FCC part 15 Class B, CE ,

Dimension
Size: 223 (L) x 143 (W) x 36 (H) mm

Weight: About 500g (Net)

8
A G
CCESS ATEWAY
Introduction
