Nomadix NWCG User Manual page 161

A G
CCESS ATEWAY
Item Default
URL Empty
Link
Click Apply button to save the new settings.
Click Apply button, the success dialog box appears. Click on Back to return to Portal Page
setting screen.
Advertisement
The system allow service provider to input 10 URL links for advertisement link

purpose.
Configuring the Wireless Connect Gateway

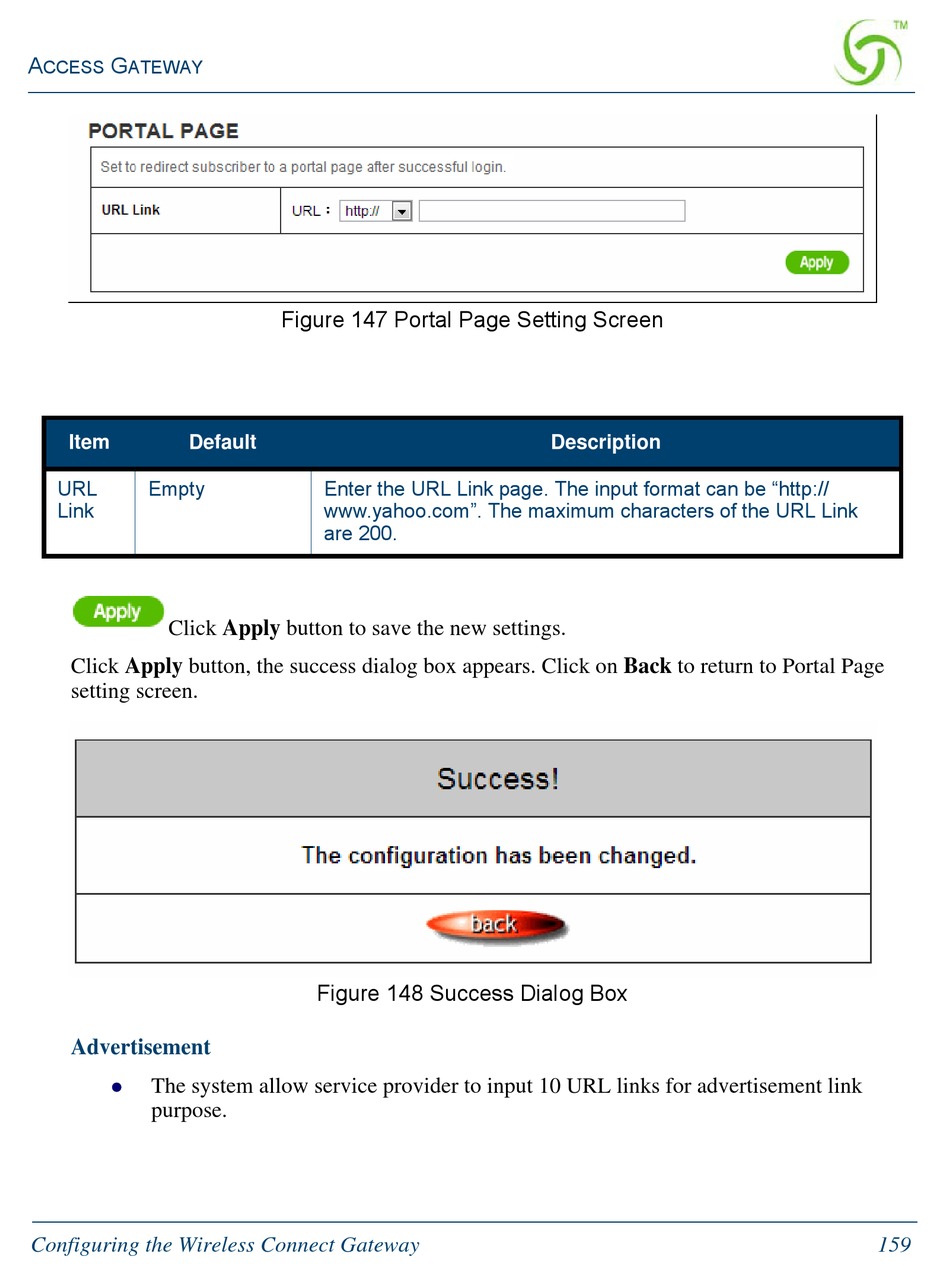

Figure 147 Portal Page Setting Screen
Enter the URL Link page. The input format can be "http://
www.yahoo.com". The maximum characters of the URL Link
are 200.
Figure 148 Success Dialog Box
Description
159
