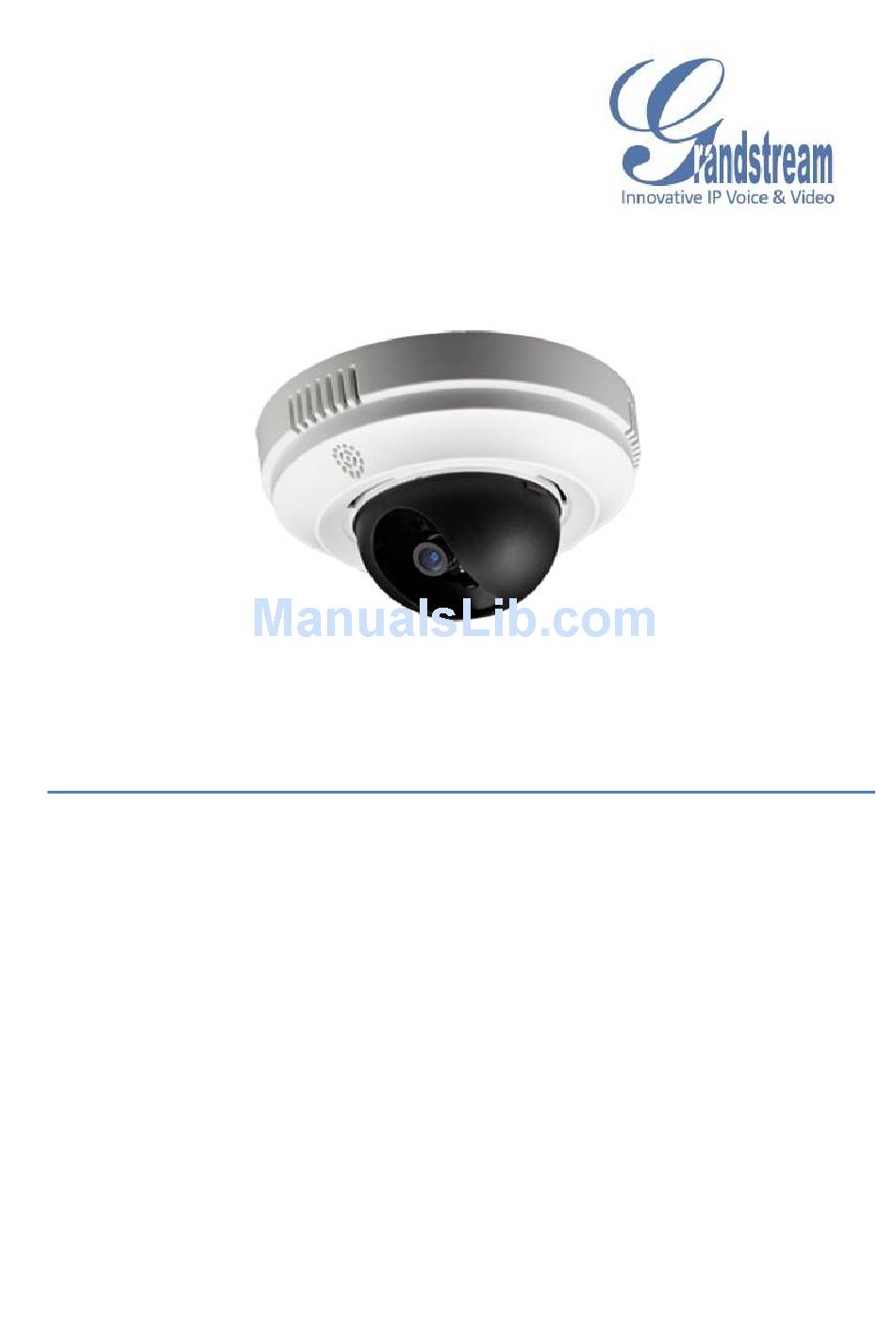

  • Page 1 Grandstream Networks, Inc. GXV3611 User Manual...
  • Page 2 GXV3611 Mini IP Dome Camera Safety Instructions These instructions are intended to assist users with the operation of the GXV3611 and also to instruct on how to avoid dangerous situations or damage to the device. Warnings: Serious injury or death may be caused if any of the warnings below are neglected.
  • Page 3 GXV3611 Mini IP Dome Camera detector alarm system. The smoke detector does not comply with the National Alarm and Signaling Code, nor does it provide any form of visual or audible signal to alert the premises dwellers. You must not replace any existing smoke alarm system with this product.

  • Page 4: Table Of Contents

    GXV3611 Lens Specification ......................... 9 Minimum Recommended System Requirement ................... 11 Connect your GXV3611 ........................11 Configuring the GXV3611 via Web Browser ....................12 Access GXV3611 Web Configuration Menu ..................12 GXV3611 Home Web Page ........................13 GXV3611 Status Page .......................... 15 GXV3611 Video &...

  • Page 5: Welcome

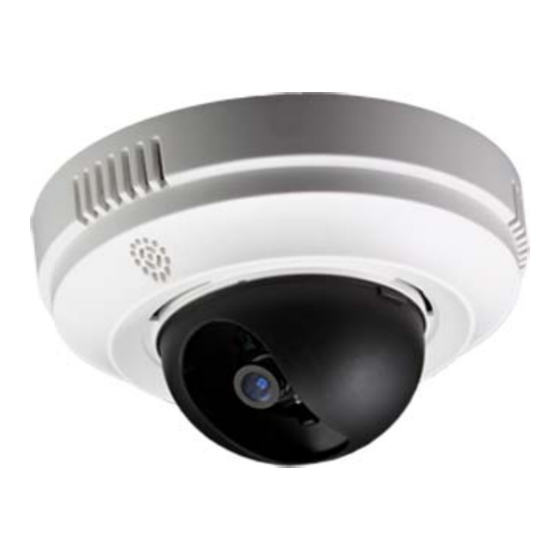

    The GXV3611 is a next generation mini IP dome camera for remote monitoring and surveillance over your LAN or internet. The GXV3611 combines best in class IP video technology and SIP protocols for a robust IP surveillance solution. The product features H.264 video streams with up to 30 frames per second in full D1, delivering rich image clarity at rapid transmission rates.

  • Page 6: Package Contents

    GXV3611 Mini IP Dome Camera Package Contents Items in the package:  GXV3611 IP Camera  12V DC power Adapter  Quick installation guide Firmware 1.0.3.5 Page 6 of 32 Grandstream Networks, Inc. 02/2010...

  • Page 7: Product Overview

    GXV3611 Mini IP Dome Camera Product Overview GXV3611 Overview GXV3611 Side View GXV3611 Sample Connection Diagram Connectors and cables PINs –Alarm In connector, and Alarm out connector. AUDIO IN – 3.5mm port for audio input devices (microphone, pickup and etc.).

  • Page 8: Gxv3611 Key Features

    GXV3611 Mini IP Dome Camera POWER – The indicator will be solid green if the power is on. Ground – wire used for grounding GXV3611 Key Features The table below lists the key features the GXV3611 Supports. Features GXV3611-HD GXV3611-LL 1/3.2”, 2-Megapixel CMOS, 1600H...

  • Page 9: Gxv3611 Lens Specification

    GXV3611 Mini IP Dome Camera Max Resolution 30fps for 1280 x 720,800x450, 25fps for PAL 640x360, 480x270, 320x180 32 Kbps – 8 Mbps 32 Kbps – 2 Mbps Video Bit Rate 1BNC (voltage1.0Vp-p, Video Output resistance75) Audio Input 3.5mm LINE IN 3.5mm LINE OUT...
  • Page 10 GXV3611 Mini IP Dome Camera 1/3” 2 Mega pixels Lens Format 1/4” Focal Length 4.2 mm 4.5 mm Aperture (D/f‟) View Angle Size 14x15.8mm 14x12.91mm (Diameter x Length 1 x Length Firmware 1.0.3.5 Page 10 of 32 Grandstream Networks, Inc. 02/2010...

  • Page 11: Minimum Recommended System Requirement

    Connect the other end of the RJ-45 cable to your network or PC.  Connect the power supply to the DC 12V power jack on the back of the GXV3611.  Connect the other end of the power supply to a wall outlet. The POWER LED will turn solid green.

  • Page 12: Configuring The Gxv3611 Via Web Browser

    GXV3611 Mini IP Dome Camera Configuring the GXV3611 via Web Browser The GXV3611‟s embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML pages allow you to configure your IP camera through Microsoft Internet Explorer. ccess onfiguration GXV3611 W ...

  • Page 13: Gxv3611 Home Web Page

    GXV3611 Mini IP Dome Camera GXV3611 Home Web Page Figure2: Home web page of GXV3611-LL Firmware 1.0.3.5 Page 13 of 32 Grandstream Networks, Inc. 02/2010...
  • Page 14 GXV3611 Mini IP Dome Camera Figure3: Home web page of GXV3611-HD Items on GXV3611 Home Page Control Console PTZ Console controller. PTZ device needs to be connected. Motion Detection If the motion detection alarm is triggered, the indicator will flash red.

  • Page 15: Gxv3611 Status Page

    LAN Subnet Mask – This field shows the LAN subnet mask of the GXV3611. LAN Default Gateway – This field shows the LAN default gateway of the GXV3611. DDNS Status – This field shows the status of DDNS. Camera Type This section shows the Lens information of GXV3611.
  • Page 16 GXV3611 Mini IP Dome Camera Video Settings Preferred Video Codec – The GXV3611 supports the H.264 video codec. Resolution – The higher the resolution is, the better the video quality is, and higher bandwidth is required. Low ----------------------- High Resolution...

  • Page 17: Gxv3611 Networking Page

    – Assign an IP to GXV3611 GXV3611 Networking Page GXV3611 supports IP version 4. The IP address can set automatically via DHCP, or a static IP address can be set manually. To make GXV3611 work properly, the user needs to set the DNS configuration properly.

  • Page 18: Gxv3611 Ddns Page

    4. Click Save to save the changes. You might need to reboot the device to apply all the changes. GXV3611 SIP Page The GXV3611 has the ability to receive phone calls and make phone calls when an alarm event is triggered through motion detection or alarm input. Register the GXV3611 to a SIP Firmware 1.0.3.5 Page 18 of 32 Grandstream Networks, Inc.
  • Page 19 To make outgoing phone calls out, the user needs to configure the Phone List properly. Register GXV3611 to a SIP Server 1. From the GXV3611 home page, click Basic Settings > SIP. 2. Go to SIP Settings Tab. 3. Enter the required information.

  • Page 20: Gxv3611 Date & Time Page

    GXV3611 Mini IP Dome Camera Configure Phone List Page To make sure the GXV3611 can make phone calls to the number you preferred when alarm is triggered. You need to add number to the phone list. Steps to add phone number: 1.

  • Page 21: Gxv3611 Maintenance Page

    Upgrades are supported via TFTP, HTTP and HTTPS. 3. Log in to the Maintenance page of the GXV3611. Select the server type from the dropdown list under the “Upgrade Via” field. Enter your server‟s root directory in the “Firmware Server Path” field.

  • Page 22: Gxv3611 Change Password Page

    If you login anonymously, you will not be able to change any settings. Camera Name Settings This field lets you configure the name of the GXV3611, which helps GSurf and GS_NVR to indentify the device when using GS_Search to search all the Grandstream network cameras or digit video cameras in the same subnet.

  • Page 23: Gxv3611 Ftp Page

    GXV3611 Mini IP Dome Camera Port – The port of the SMTP server. The GXV3611 supports port 25 and SSL port 465, which is for SMTP with an encrypted connection. From E-Mail Address – The email address that sends out the alarm email(s).
  • Page 24 GXV3611 Mini IP Dome Camera 3. Configure the alarm actions which you would like the GXV3611 to take when alarm is triggered. Note: The smoke detector in the GXV 3611 mini dome camera is not intended to replace any smoke detector alarm system. The smoke detector does not comply with the National Alarm and Signaling Code, nor does it provide any form of visual or audible signal to alert the premises dwellers.
  • Page 25 Set up Alarm Event Time Schedule This section allows you to configure the time during which the GXV3611 will monitor the Alarm Input. The GXV3611 can not only monitor your settings but can also take actions when the alarm is triggered.

  • Page 26: Gxv3611 Motion Detection

    Video and configure the FTP page properly to use this feature. Email JPEG and Store it to USB drive or SD card – If this option is selected, the GXV3611 will capture the image and store it to connected live storage device when an alarm is triggered.
  • Page 27 GXV3611 Mini IP Dome Camera something/somebody moves in the motion detection region, an alarm will be triggered. Show Motion Detection Regions – If this option is selected, the motion detection regions will be displayed on the screen with a white border.

  • Page 28: Gxv3611 System Log

    GXV3611 Mini IP Dome Camera GXV3611 System Log This page is used to set up the system log server path and system log level. Once they are correctly configured, the device will send out system log messages to the system log server, which will help perform troubleshooting.

  • Page 29: Faq

    Once you log into the GXV3501/ 3504/ 3601/ 3611‟s web interface Internet Explorer will indicate that “This website wants to install to following add-on: „GSViewer. cab‟ from Grandstream Networks, Inc.”. Please install this add-on when prompted by IE. 3. How do you manually uninstall the Grandstream video viewer add-on for IE?
  • Page 30 GXV3611 Mini IP Dome Camera New firmware will often upgrade the add-on as well. To watch the live video stream, you must install the newest version of the add-on. 7. How do you watch secondary video stream? Login to the home page of the GXV3501/ 3504/ 3601/ 3611 web GUI, click Play to watch the video stream.
  • Page 31 GXV3611 Mini IP Dome Camera from a cell phone. Make sure to set the bit rate to 64kbps to ensure the best video quality. 14. Why doesn’t the IP address of the device reset when I click the “Restore” button on the Maintenance page? The GXV3501/ 3504/ 3601/ 3611 could be installed in areas that are not easy to access.
  • Page 32 GXV3611 Mini IP Dome Camera Display Adapter Test Result SiS 650/651/740/661 FX/741/760 Series Works normally Intel(R) 82945R Express Chipset Family Works normally VIA/S3G UniChrome Pro IGP Works normally NIVDIA Geforce 7300GS Works normally SiS 661FX Works normally SiS Mirage Graphics...
