Grandstream Networks GXV3672_HD User Manual
Outdoor day/night ip camera
Hide thumbs
Also See for GXV3672_HD:
- User manual (39 pages) ,
- Admin manual (9 pages) ,
- Quick start manual (5 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Admin Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grandstream Networks GXV3672_HD
Summary of Contents for Grandstream Networks GXV3672_HD

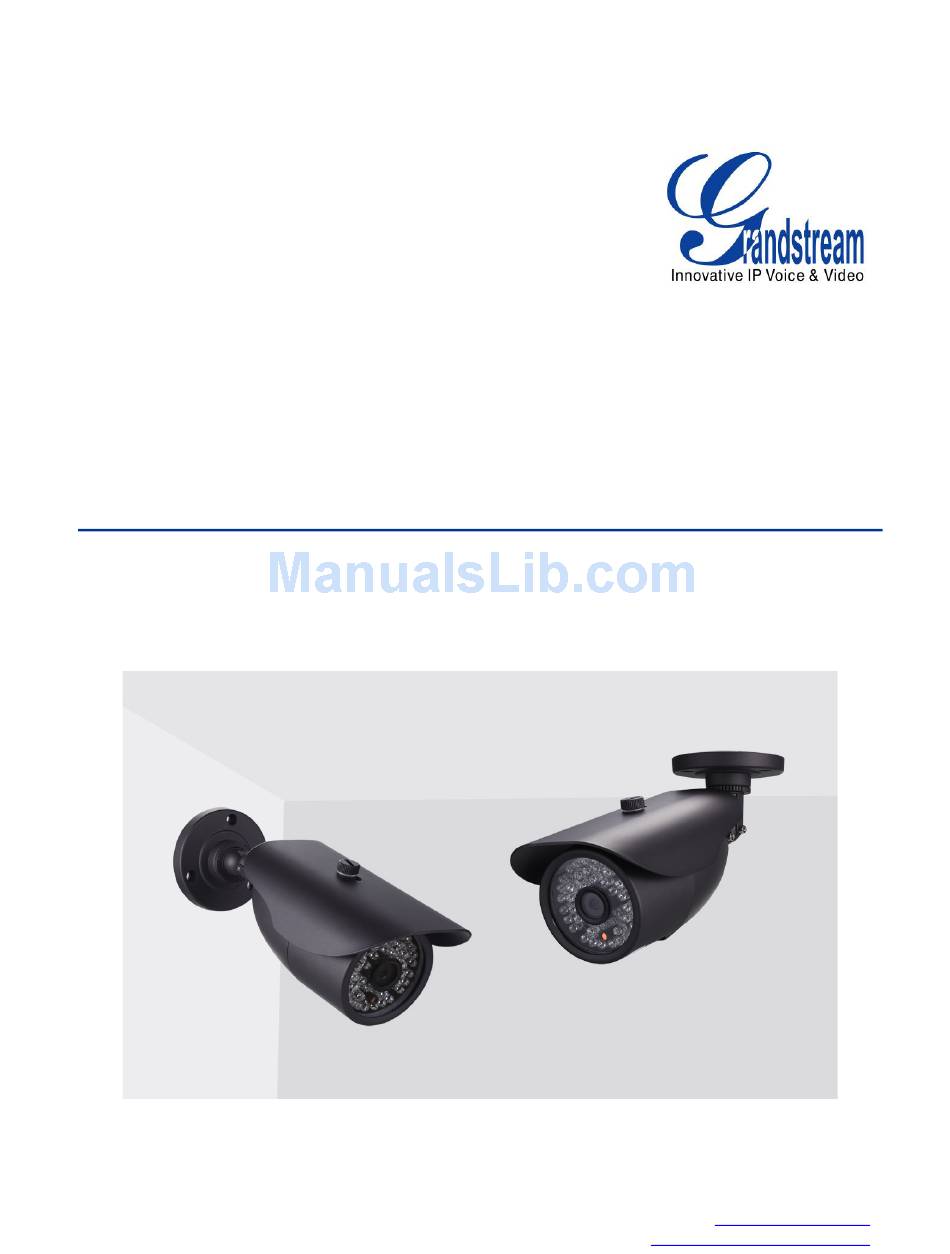

- Page 1 Grandstream Networks, Inc. GXV3672_HD/GXV3672_FHD Outdoor Day/Night IP Camera GXV3672_HD/FHD User Manual www.grandstream.com Firmware Version 1.0.1.71 http://esupport.grandstream.com...
-
Page 2: Table Of Contents
NSTRUCTIONS FOR LOCAL FIRMWARE UPGRADE USING SERVER ......................34 ONFIGURATION OWNLOAD RESTORE FACTORY DEFAULT SETTING ....................35 ........................35 ESET FROM NTERFACE IP SURVEILLANCE FAQ ........................... 36 Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 2 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... - Page 3 ROVISIONING 18: F ....................35 IGURE ACTORY ESET FROM NTERFACE ABLE OF ABLES GXV3672_HD/FHD U ANUAL 1: GXV3672_HD/FHD T ..................10 ABLE ECHNICAL PECIFICATIONS Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 3 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013...
-
Page 4: Welcome
GSurf_Pro, Grandstream’s intuitive FREE VMS (video management systems) software that controls up to 36 cameras (*) simultaneously; or record video using GSNVR, Grandstream’s FREE network and PC based DVR (digital video recorder) software. It is fully compliant with ONVIF standard and offers flexible HTTP API and an SDK for advanced integration. -
Page 5: Safety Compliances
Serious injury or death may be caused if any of the warnings below are neglected. Injury or damage to the equipment may occur if any of the following caution messages are Cautions: neglected. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 5 of 39 Firmware Version 1.0.1.71... -
Page 6: Warranty
Grandstream reserves the right to remedy warranty policy without prior notification. Caution: Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty. -
Page 7: Connect Your Gxv3672_Hd/Fhd
GXV3672_HD/FHD IP Camera • 12V DC Universal Power Adaptor • Ethernet Cable • Hex Key and 3 Screws and Wall Anchors • Quick Installation Guide Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 7 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 8: Connecting The Gxv3672_Hd/Fhd
Connect the RJ-45 Ethernet cable to the NETWORK port of GXV3672_HD/FHD Connect the other end of the RJ-45 cable to your PoE switch. Please refer to following connection diagram to hook up the camera. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 8 of 39 Firmware Version 1.0.1.71... -
Page 9: Product Overview
1/3”CMOS (1.2M for HD/3.1M for FHD) and Lens 5. IR Light Array Infrared Light Array 6. Light Sensor for IR-Cut Light Sensor for mechanical IR-Cut switching Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 9 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 10: Gxv3672_Hd/Fhd Specifications
IP66 compliant weather-proof metal case Compliance FCC Part 15, Subpart B Class B; CE EN 55022 Class B, EN61000-3-2, EN 61000-3-3, EN55024, EN60950-1; C-tick AS/NZS CISPR22, CISPR24; IP66 Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 10 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 11: Installation Guide
Google Chrome and Apple Safari support is NOT yet supported and status pending. Microsoft Internet Explorer 64-bit support is pending. Please temporarily disable Antivirus or Internet Security Software when download and install the Grandstream Firefox plug-in for video or “GSViewerX.cab” for Microsoft Internet Explorer. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 11 of 39 Firmware Version 1.0.1.71... - Page 12 The GXV3672_HD/FHD by default enabled as DHCP client, it will automatically get IP address from the network with DHCP server running. User can know the IP address assigned to the camera from DHCP server log or using “SearchTool” from Grandstream GSurf_Pro free VMS software. 1. Download and install the GSurf_Pro software from Grandstream website: http://www.grandstream.com/products/tools/surveillance/gsurf_pro.zip...
- Page 13 10. Firefox user need to download and install the plug-in to see the video, the plug-in for Firefox is here: http://www.grandstream.com/products/tools/surveillance/firefox_plugin.exe NOTE: Please temporarily disable Antivirus or Internet Security Software when download and install the Grandstream Firefox plug-in for video or “GSViewerX.cab” for Microsoft Internet Explorer. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 13 of 39 Firmware Version 1.0.1.71...
-
Page 14: Gxv3672_Hd/Fhd Home Web Page
Click to change the path of record/snapshot file saved. 16. Motion Detection Alarm Indicator: If motion detection alarm triggered, the indicator will flash in red. Click the indicator icon to turn off the alarm indication. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 14 of 39 Firmware Version 1.0.1.71... -
Page 15: Gxv3672_Hd/Fhd Configuration & Language Page
When click the “Language” tab, supported languages will be displayed in Figure 2. Click to select the related webpage display language. Figure 2: Web Language Switch • Currently firmware only support: English (default), Simplified Chinese and Russian. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 15 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 16: Basic Settings Explanation
(*) If select this option, a valid DNS server must be preconfigured under Basic Settings Networking button has to be clicked to save all the changes made to the device. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 16 of 39 Firmware Version 1.0.1.71... -
Page 17: Video & Audio Setting Page
Slide to adjust the built-in speaker volume. • Power Frequency: Select correct local power frequency to avoid video flicking effect under fluorescence light condition. Default is Outdoor. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 17 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 18: Figure 4-2: Video & Audio Settings Page
If MJPEG selected, reduce max. frame rate to min. value to save bandwidth and get better image Grandstream IP Camera provides two video streams, user can use them with flexibility. For example, the high-resolution stream for local recording; another low or high resolution for remote monitoring; or vice versa depending application scenarios. -
Page 19: Cmos Settings Page
Color Mode: Camera Color Mode. There are three options: Color; Black/White; Auto. NOTE: Auto option recommended for Shutter Speed, IR CUT Setting and Color Mode. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 19 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 20: Networking Setting Page
HTTP port changed to 8088, the RTSP port should be 10088, both 8088 and 10088 should be configured for port forwarding in order for remote camera video access. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 20 of 39 Firmware Version 1.0.1.71... -
Page 21: Ddns Settings Page
• STUN Server: Stun server FQDN or IP. If device behind a non-symmetric router, STUN server can help to penetrate & resolve NAT issue. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 21 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 22: Sip Setting Page
This page allows user to configure SIP related parameters. GXV3672_HD/FHD can be configured as SIP endpoint to call out when alarm trigged; or allow permitted number to call in to check the video if Grandstream video IP phone is used. Figure 8-1: SIP Setting Page •... -
Page 23: Figure 8-2: Sip Setting Page
Phone numbers allowed to call into the camera. NOTE: Unless external microphone connected to internal module, GXV3672_HD/FHD does NOT support Audio even the audio codec configured. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 23 of 39 Firmware Version 1.0.1.71... -
Page 24: Status Page
NOTE: When SIP account registered, the status will display “Online” in Green. When SIP account unregistered, the status will display “Offline” in Red, as below. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 24 of 39 Firmware Version 1.0.1.71... -
Page 25: Advanced Settings Explanation
When checked, no security enhanced. Any person can view the camera if knowing the IP or FQDN of the camera, but can NOT change anything, just view ONLY. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 25 of 39 Firmware Version 1.0.1.71... -
Page 26: Maintenance Page
Time interval for automatic upgrade, default 10080 • Automatic Upgrade: Checked to enable automatic firmware upgrade and provisioning. NOTE: Only XML based automatic provisioning is supported by GXV3672_HD/FHD. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 26 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 27: Smtp Setting Page (Email Alarm)
Click “Save” to save the email configuration information. Click “Test” after configuration, if setting is correct, a test email will send out and “Test successful!” yellow bar will display like below Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 27 of 39 Firmware Version 1.0.1.71... -
Page 28: Ftp Settings Page (Upload Alarm)
Click “Test” after configuration, if setting is correct, a test FTP operation will be performed and “Test successful!” yellow bar will display if the operation is successful. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 28 of 39 Firmware Version 1.0.1.71... -
Page 29: Alarm Server Settings Page (Upload Alarm To Supported Vms Or Http Server)
Grandstream provide HTTP API to help 3 party company by using HTTP server or VMS to develop further solutions for its customers. Grandstream IP Camera and DVS (include GXV3672_HD/FHD) are ONVIF certified. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 29 of 39 Firmware Version 1.0.1.71... -
Page 30: Motion Detection Configuration Page (Set Alarm)
0 to 15. • Sensitivity: Select configured alarm region number, input number for sensitivity to trigger alarm, 100 is the maximum sensible value. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 30 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 31: Figure 15-2: Motion Detection Schedule Configuration Page
Upload to Alarm HTTP Server When checked, the alarm will be sent to Alarm HTT Server. Party Server also can be used via GS HTTP API NOTE: Grandstream free GSurf_Pro VMS software can be downloaded here: http://www.grandstream.com/products/tools/surveillance/gsurf_pro.zip • Email and FTP upload JPEG:... -
Page 32: Syslog Settings Page (Troubleshooting)
Syslog Server: Syslog server IP or Domain Name • Syslog Lever: Lever of syslog message sent to the syslog server: None, Debug, Info, Warning, Error. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 32 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013... -
Page 33: Software Upgrade
This page allows user to configure firmware upgrade: Figure 17: Firmware Upgrade and Provisioning NOTES: Grandstream recommends end-user use the Grandstream HTTP server. Its address can be found http://www.grandstream.com/support/firmware Currently the HTTP firmware server is firmware.grandstream.com. For large companies, we recommend to maintain their own TFTP/ HTTP/HTTPS server for upgrade and provisioning procedures. -
Page 34: Instructions For Local Firmware Upgrade Using Tftp Server
Microsoft IIS web server. Configuration File Download Grandstream SIP Device can be configured via Web Interface as well as via Configuration File through TFTP or HTTP/HTTPS. “Config Server Path” is the TFTP or HTTP/HTTPS server path for configuration file. It needs to be set to a valid URL, either in FQDN or IP address format. The “Config Server Path” can be same or different from the “Firmware Server Path”. -
Page 35: Restore Factory Default Setting
Restoring the Factory Default Setting will DELETE all configuration information of the camera. Please BACKUP or PRINT out all the settings before approach to following steps. Grandstream will not take any responsibility if you lose all the parameters of setting or cannot connect to your VoIP service provider. -
Page 36: Ip Surveillance Faq
Please double check whether the IE add-on was installed correctly. Once you log into the GXV 3672HD_FHD web interface, Internet Explorer will indicate that this website wants to install to following add-on: GSViewer. cab‘ from Grandstream Networks, Inc. Please install this add-on when prompted by IE. -
Page 37: Gxv3672_Hd/Fhd User
Login to the home page of the GXV3672HD_FHD web GUI, click Play to watch the video stream. To watch a secondary video stream, right click on the video, and select Secondary Stream on the pop-up menu. Try reinstalling the Grandstream Viewer add-on for IE if you cannot see the video stream. - Page 38 If the web port is 80, then the RTSP port is 554. If the web port is not 80, then the RTSP port equals the web port +2000. For example, if the web port is 88, then the RTSP port will be 2088. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 38 of 39 Firmware Version 1.0.1.71...
- Page 39 Mobile intel® 915GM/GMS, 910GML Express Chipset Family Works normally Intel® G45/G43 Express Chipset Works normally ATI Technologies, RAGE XL PCI This display adapter cannot display videos. Grandstream Networks, Inc. GXV3672_HD/FHD User Manual Page 39 of 39 Firmware Version 1.0.1.71 Last Updated: 2/2013...
