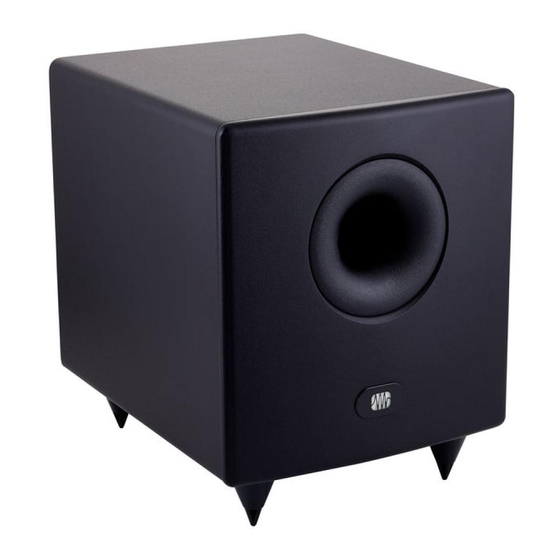

- Page 1 Temblor ™ Active Studio Subwoofer Owner’s Manual ® www.presonus.com...
-
Page 2: Table Of Contents
Table of Contents Overview — 1 Introduction — 1 Summary of Temblor T8 Features — 1 Hookup — 2 What is in the Box — 2 Rear-Panel Connections and Controls — 2 Inputs — 2 2.1.1 Outputs — 2 2.1.2 Power —... -
Page 3: Overview
The result is a natural and musical sound that enhances full-range speakers without overshadowing them. The variable (50 to 130 Hz) lowpass filter lets you dial in the Temblor T8 to pair perfectly with your full-range system, making it the ideal solution for 2.1 and surround sound applications. -
Page 4: Hookup
(such as the PreSonus Monitor Station). This will ensure that your Temblor T8 receives the low-frequency content from both the left and right sides of a stereo audio signal. If your audio source provides a mono or LFE output, you only need to connect one input—either L or R. -
Page 5: Power
AC Select Switch: The input-power voltage is set at the factory to correspond with the country to which it was shipped. Use this switch only if you are using your Temblor T8 in a country that uses a different standard voltage than is used in the country where you purchased your T8. -
Page 6: Hookup Diagrams
Temblor T8 Hookup Hookup Diagrams Owner’s Manual Hookup Diagrams 2.2.1 Basic Setup Left Right ACOUSTIC TUNING High – -6dB +6dB OUTPUT TO -6dB +6dB RIGHT SPEAKER Balanced – INPUT line Input SUB OUT Balanced Unbalanced 100-12V-, 50-60Hz-TIAL 250V 220-240V-, 50-60Hz-T500mAL 250V... -
Page 7: Advanced Setup
Temblor T8 Hookup Hookup Diagrams Owner’s Manual 2.2.2 Advanced Setup AudioBox iOne Temblor T8 Eris E5 (Right) Eris E5 (Left) -
Page 8: Home Theater Setup
Temblor T8 Hookup Hookup Diagrams Owner’s Manual 2.2.3 Home Theater Setup Eris E5 (Center) Eris E5 (Right Front) Eris E5 (Left Front) Front Center Sub Out Rear Surround Preamp / Computer Temblor T8 Eris E5 (Right Rear) Eris E5 (Left Rear) -
Page 9: Tutorials
Below is a brief tutorial on how to level match your monitors: Connect your monitors and Temblor T8 as shown either of the hookup diagrams in Section 2.2. - Page 10 Tutorials Level Calibration Owner’s Manual 2. Turn your Temblor T8 and your full-range monitors’ input levels to their lowest setting. Play pink noise through your speakers. You should not hear anything yet. Begin slowly increasing the volume of your left monitor until the acoustic level of the pink noise reaches 82 dB SPL on your SPL meter when measured at your listening position.
-
Page 11: Resources
Temblor T8 Resources Technical Specifications Owner’s Manual Resources Technical Specifications INPUTS 2- Balanced ¼” TRS 2- Unbalanced RCA OUTPUTS 2- Balanced ¼” TRS (full range with 80 Hz HPF option) 2- Unbalanced RCA (full range with 80 Hz HPF option) -
Page 12: Troubleshooting
Owner’s Manual Troubleshooting No power. First ensure that your Temblor T8 is plugged in. If it’s connected to a power conditioner, verify that the power conditioner is turned on and functioning. If it is, yet there is still no power to the T8, contact PreSonus for a repair. - Page 13 PreSonus will repair or replace, at our sole and absolute option, products covered by this warranty at no charge for labor or materials. If the product must be shipped to PreSonus for warranty service, the customer must pay the initial shipping charges. PreSonus will pay the return shipping charges.
- Page 14 Owner’s Manual How to Get Warranty Service (USA): 1. You must have an active user account with PreSonus and your hardware must be on file with your account. If you do not have an account, please go to: http:// www.presonus.com/registration and complete the registration process.
- Page 15 StudioLive, and XMAX are trademarks or registered trademarks of PreSonus Audio Electronics, Inc. Capture, Impact, Mixverb Presence, RedLightDist, SampleOne, Studio One, and Tricomp are trademarks or registered trademarks of PreSonus Software Ltd. Mac and Mac OS are registered trademarks of Apple, Inc., in the U.S. and other countries. Windows is a registered trademark of Microsoft, Inc., in the U.S.
- Page 16 Temblor ™ Active Studio Subwoofer Owner’s Manual 18011 Grand Bay Ct. • Baton Rouge, ® Louisiana 70809 USA• 1-225-216-7887 Part# 70-52000001-A www.presonus.com...
