PreSonus Temblor T8 Manual

Overview

Introduction

Thank you for purchasing the PreSonus Temblor T8 active studio subwoofer. PreSonus Audio Electronics has designed the T8 utilizing high-grade components to ensure optimum performance that will last.

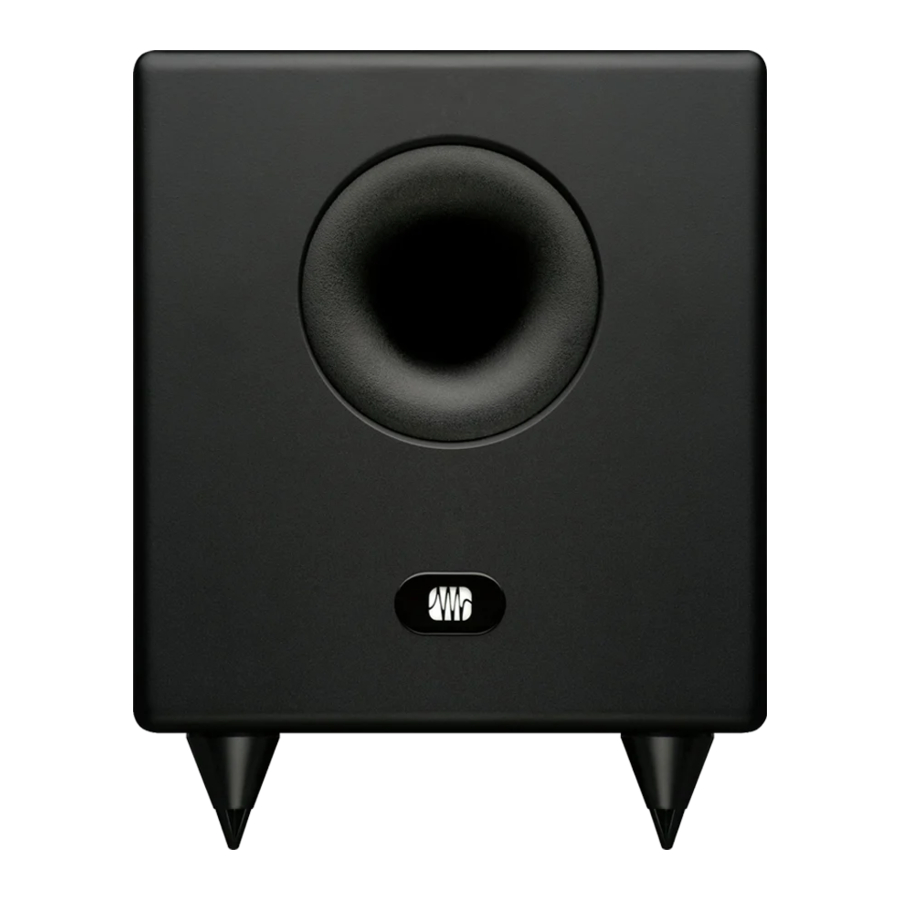

The Temblor T8 is an active subwoofer featuring a down-firing 8-inch glasscomposite driver with a high-density rubber surround in a front-ported cabinet. This configuration provides responsive, defined bass with low distortion. The result is a natural and musical sound that enhances full-range speakers without overshadowing them. The variable (50 to 130 Hz) low-pass filter lets you dial in the Temblor T8 to pair perfectly with your full-range system, making it the ideal solution for 2.1 and surround sound applications.

We encourage you to visit My.PreSonus.com with any questions or comments regarding your PreSonus Temblor T8. We appreciate the support you have shown us through the purchase of this product and are confident that you will enjoy your Temblor T8!

Summary of Product Features

• Down-firing active subwoofer with 200 watt, Class AB amplifier
• 8-inch glass-composite woofer with high-density rubber surround
• Frequency response: 30-200 Hz
• Variable lowpass filter control: 50-130 Hz
• 80 Hz highpass filter (with defeat switch) for satellite connections
• Front-ported cabinet
• Power-down / Standby mode

Hookup

What is in the Box

In addition to this manual, your Temblor T8 package contains the following:

• (1) PreSonus Temblor T8 powered subwoofer

• (1) IEC power cable

Rear-Panel Connections and Controls

Inputs

Line-level Inputs: The Temblor T8 provides a choice of two input pairs: a pair of balanced ¼" TRS inputs and one pair of RCA unbalanced inputs. When both connections are in use, the RCA inputs will sum into the TRS connections.

Power User Tip: Connect both the left and right inputs if you are connecting your full-range monitors to the T8's outputs, or if you're running your Temblor T8 independently from a stereo source (such as the PreSonus Monitor Station). This will ensure that your Temblor T8 receives the low-frequency content from both the left and right sides of a stereo audio signal. If your audio source provides a mono or LFE output, you only need to connect one input—either L or R.

Input Gain: Sets the level of the input signal before it is amplified.

Outputs

Outputs: The Temblor T8 provides two pairs of outputs: a pair of balanced ¼" TRS outputs and a pair of RCA unbalanced outputs. The full-range signal connected to the stereo inputs on the T8 is passed through to these outputs. Use these outputs to connect your main left and right studio monitors.
If the High Pass Filter switch is engaged, frequencies below 80 Hz are not sent from these outputs.

Power

IEC Power Connection: Your Temblor T8 accepts a standard IEC power cord.

Do not remove the center grounding prong or use a separate ground-lift adapter, as this could result in electric shock.

Power Switch: This is the On/Off switch. The power status is indicated by the illuminated logo on the front of the cabinet.
Power User Tip: Your Temblor T8 features a Standby mode. When no signal is present for longer than ten minutes, your T8 will lower its power consumption to less than 0.5W until signal is present again. The lighted logo on the front of your T8 will turn white when Standby mode is active

AC Select Switch: The input-power voltage is set at the factory to correspond with the country to which it was shipped. Use this switch only if you are using your Temblor T8 in a country that uses a different standard voltage than is used in the country where you purchased your T8.

User Controls

Polarity: The Polarity button reverses the polarity of the input signals.
Power User Tip: Once your have connected your T8 to your system, try experimenting with each setting while listening to your favorite music. Leave this switch in the position where the bass was the loudest.

High Pass Filter: Removes frequency content below 80 Hz from the full-range signal sent from the T8 outputs. This is useful if your main studio monitors do not have their own high-pass filter.
Power User Tip: Leaving frequency content below 80 Hz in full-range monitors can cancel out or reinforce the highest frequencies that are reproduced by the Temblor T8. This can make the bass response of the overall system muddy and ill-defined. By rolling off your full-range speakers, you will create a more linear frequency response between the subwoofer and full-range content.

Low Pass Filter: This control determines the upper end of the frequency range reproduced by the Temblor T8. If you have enabled the onboard high-pass filter, set the Low Pass Filter control to 80 Hz. Otherwise, set the Low Pass Filter control to the lowest frequency that your main monitors can reliably reproduce.

Hookup Diagrams

Basic Setup

Advanced Setup

Home Theater Setup

Tutorials

Unit Placement

The goal of proper subwoofer placement is to set up your system so that your subwoofer acts as a natural extension of your full-range monitors without boosting the overall bass response of your room or exaggerating any one frequency or frequency range. Because low frequencies are not directional—that is, humans cannot perceive the direction from which low frequencies are coming— you aren't limited to placing it near your full-range monitors. However, placing your T8 in the same side of the room as your full-range monitors will typically provide the best listening experience.
A quick way to find the best location for your subwoofer is to temporarily place it on the ground where you would normally be listening to your system, then play some music that contains a lot of bass. Walk around the half of the room where you have placed your full-range monitors until you find the spot where the bass sounds its best. In general, you will want to avoid placing your subwoofer too near to reflective surfaces, like a wall or in a corner as this will exaggerate the bass energy and make your T8 sound "boomy."
Once you find the place in the room where the bass sounds the smoothest, place your T8 in that spot, return to the listening position and listen to it again. You may need to adjust the location; just keep making small adjustment (a foot or so at a time) until the bass response sounds as even as possible.

Level Calibration

Matching the levels of the monitors in your system with your subwoofer is an easy extra step that will help you to achieve a consistent listening environment. This will ensure that your subwoofer won't be too loud with some types of music and not nearly loud enough with others. You will need an SPL meter and some pink noise to do this; luckily, there are many inexpensive and free SPL meter apps for just about every type of smartphone, as well as a variety of free pink noise samples online that will do the job nicely.

Below is a brief tutorial on how to level match your monitors:

1. Connect your monitors and Temblor T8 as shown either of the hookup diagrams in Section "Rear-Panel Connections and Controls".
   Power User Tip: If your system has an EQ in it, turn it off. You can EQ your complete system to taste once the levels are evenly matched.

2. Turn your Temblor T8 and your full-range monitors' input levels to their lowest setting.

3. Play pink noise through your speakers. You should not hear anything yet.
4. Begin slowly increasing the volume of your left monitor until the acoustic level of the pink noise reaches 82 dB SPL on your SPL meter when measured at your listening position. Turn off your left monitor and repeat with your right monitor.
   If you're using monitors that provide a single level control for both the left and right side, like the Ceres C3.5BT, C4.5BT or Eris 4.5BT, play pink noise through both monitors, increase the volume until your SPL meter reads 85 dB.
   Power User Tip: If 82 dB or 85 dB is too loud or too quiet for your room, set the level to one that is more comfortable for your listening requirements. Just be sure to set the same level for both the left and the right monitor.

5. Turn your full-range monitors off. If your T8 is connected to the Sub Out on a Ceres C3.5BT or C4.5BT, set the input volume of your Temblor T8 to "0" and skip to Step 7.
6. Begin slowly increasing the input volume on your Temblor T8 until the acoustic level of the pink noise reaches 79 dB SPL on your SPL meter when measured at your listening position.

7. Set the lowpass filter on your T8 to 130 Hz. This will create a frequency overlap between your T8 and your full-range system.

8. Play pink noise through your full system and experiment with the polarity switch on your Temblor T8 to see which position provides the best bass response. Leave the polarity switch where the bass is the loudest.
9. Now play some music through your system and experiment with the lowpass filter on your T8 until you find the most natural transition between your full-range monitors and your subwoofer. If your full-range monitors are connected to the outputs of your T8, you may want to try turning on the 80 Hz highpass filter on the T8 and setting the lowpass filter to 80 Hz.

Power User Tip: Once you have matched the levels of your full-range monitors and T8, don't use their volume controls to adjust the overall level; instead, use the volume on your audio device (computer, iPad, TV, etc.). This will ensure that your speaker levels remain matched.

Technical Specifications

Troubleshooting

No power

First ensure that your Temblor T8 is plugged in. If it's connected to a power conditioner, verify that the power conditioner is turned on and functioning.
If it is, yet there is still no power to the T8, contact PreSonus for a repair.

No audio

If your Temblor T8 appears to power on but you hear no sound when playing audio (the lights are on but nobody's home), first make sure that the cables connected to the subwoofer are working correctly. Also, verify that the Input Level control is set to provide high enough gain.

Hum

Usually, hum is caused by a ground loop. Verify that all audio equipment is connected to the same power source. If you are not using a power conditioner, we highly recommend that you add one. Not only will this help to minimize hum, it will better protect your equipment from power surges, brownouts, etc.
Use balanced cables whenever possible. If your audio device does not offer a balanced output, you can connect it to a DI (direct-injection) box, which will provide a ground-lift switch and a balanced output.
Finally, make sure that your audio cables are not run near power cables, and use cables that are the appropriate length for your application. Using cables that are too long not only increases the risk of noise, it increases the likelihood that the cables are coiled, which will essentially create an antenna that picks up all kinds of audio interference.

Warranty

How to Get Warranty Service (USA):

1. You must have an active user account with PreSonus and your hardware must be on file with your account. If you do not have an account, please go to: http://www.presonus.com/registration and complete the registration process.
2. Contact our Technical Support Department at (225) 216-7887 or log a support ticket at: http://support.presonus.com. TO AVOID THE POSSIBILITY OF SENDING IN A PRODUCT THAT DOES NOT HAVE A PROBLEM, ALL SERVICE REQUESTS SHALL BE CONFIRMED BY OUR TECH SUPPORT DEPARTMENT.

How to Get Warranty Service (outside of USA):

1. You must have an active user account with PreSonus and your hardware must be on file with your account. If you do not have an account, please go to: http://www.presonus.com/registration and complete the registration process.
2. Contact the Technical Support/Service Department for your region at http://www.presonus.com/buy/international_distributors and follow procedures provided by your PreSonus contact.

If you have any questions about this warranty or service received, please contact PreSonus (USA) at (225) 216-7887 or one of our authorized international distributors at: http://www.presonus.com/buy/international_distributors.

Product features, design, and specifications are subject to change without notice.
